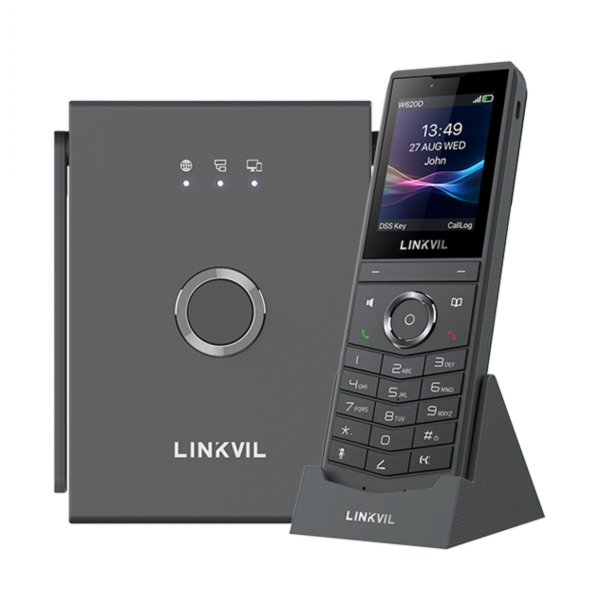

Fanvil W620P DECT IP Phone System

The Fanvil LINKVIL W620P is an IP cordless phone system made up of the W710D DECT base station and one W620D handset, for small and medium-sized businesses whose staff take calls away from a desk. A single W710D base registers up to 10 handsets and carries up to 10 calls at once across 20 SIP accounts. Coverage reaches up to 50 metres indoors and 300 metres outdoors.

Key Features of the Fanvil W620P

• Clear Audio in Busy Environments - HD voice with G.722 and Opus wideband codecs, plus intelligent noise reduction and an acoustic shield on the handset
• 6-Way Audio Conferencing - Connect up to six participants in a single conference call for easy team collaboration
• Centralised Contact Management - Each handset stores 1,000 local contacts and can read XML and LDAP remote phonebooks for a shared company directory
• Durable Handset Design - Built to withstand drops of up to 1.8 metres, with a convenient belt clip for easy carrying around the workplace
• Secure Voice Communication - TLS and SRTP encrypt signalling and voice, with 802.1X network access control and built-in L2TP and OpenVPN clients for remote sites
• Centralised Provisioning - Auto-provisioning over TR-069, DHCP Option 66, SIP PnP, FTP, TFTP, HTTP and HTTPS, with a web interface for manual changes

About the Fanvil W620P IP Cordless Phone System

The W620P is a single-base DECT system. The W710D base connects to your network by Ethernet and registers to your SIP phone system or hosted VoIP service. Each W620D handset links to the base over DECT radio on the European 1880 to 1900 MHz band, and the base passes calls on to your provider over the network.

The base holds up to 20 SIP accounts and 10 internal extensions. That gives each of the 10 handsets its own extension, with spare accounts for shared lines such as a sales or support number.

About the W620D Handset

The W620D has a 2.4-inch colour screen at 240 x 320 pixels and a 3-core processor running a Linux operating system. Next to the keypad are 16 virtual DSS keys, a physical programmable key and a Push-to-Talk (PTT) button, which puts speed dials and team contact one press away.

A 3000mAh battery gives up to 13 hours' talk time and up to 240 hours on standby in ideal conditions. The handset vibrates for incoming calls, keeps a log of 600 calls and supports auto-answer, speed dial and call waiting. It measures 160 x 53 x 16 mm and weighs 256 g.

Bluetooth 5.0 Connectivity

The Fanvil W620D features built-in Bluetooth 5.0, allowing you to connect a compatible wireless headset for convenient, hands-free communication. Enjoy greater freedom of movement while making and receiving calls, helping you stay productive throughout the working day.

About the W710D Base Station

The W710D measures only 140 x 100 x 26 mm, it has been designed to be wall mounted. It has two 10/100 Mbps RJ45 ports, one for the network and one bridged PC port, so a computer can share the same cable run. Power comes from PoE or a 5 V 1 A DC supply.

The base stores up to 20,000 call logs across the system and holds configuration files for all 10 handsets. Administrators manage it through a web interface, with packet capture and syslog for troubleshooting.

Call Quality and Audio Features

The W620P supports the G.722 and Opus wideband codecs for HD voice, as well as the standard G.711 and G.729 codecs used by most VoIP providers. Intelligent noise reduction cuts background sound on your side of the call, and Fanvil's acoustic shield technology helps keep voices clear when the user is somewhere noisy.

Users can set up a 6-way audio conference from the handset. Auto-answer, speed dial and call waiting are also built in.

Who this Business Cordless Phone System Suits

The W620P suits offices where people move between desks, meeting rooms and break areas during the day and still need to answer their extension. Reception staff can greet visitors and take calls from the same handset.

In shops and showrooms, staff can answer customer calls from the sales floor or the stockroom without walking back to a counter. The 300-metre outdoor range in open space covers yards, garden centres and small car parks next to the building.

Team-based sites get the most from the PTT button and the 6-way conference. A supervisor on a light commercial site, a busy restaurant or a small workshop can reach colleagues quickly, and the 1.8-metre drop rating suits handsets that are carried all day.

Each W710D base supports up to 10 handsets. For larger buildings or several floors with thick walls, ask our team about multi-cell DECT systems.

Quick Deployment, Easy Setup and Flexible Compatibility

The Fanvil LINKVIL W620P DECT IP Phone System offers quick installation and flexible connectivity for businesses of all sizes. Simply press the W710D base station button for three seconds, switch on the handset, select the matching frequency and RFPI, and enter the password to complete registration. Compatible with SIP-based IP PBX systems and hosted VoIP services, the system supports up to 20 SIP accounts, allowing connections to multiple providers. It also supports IPv4 and IPv6, DHCP or static IP configuration, and VLAN assignment via DHCP, CDP or LLDP. For easier management, automatic provisioning is available through TR-069 or DHCP Option 66, alongside manual configuration through the web interface.

Handset menus are available 16 languages - English, French, German, Dutch, Spanish, Italian, Polish, Portuguese, Greek, Turkish, Russian, Japanese, Korean, Simplified Chinese, Traditional Chinese

• Fanvil W710D DECT Handset
• Fanvil W620D Base Station
• Handset Charging Base
• 3000mAh Rechargeable Battery
• Belt Clip
• User Documentation
