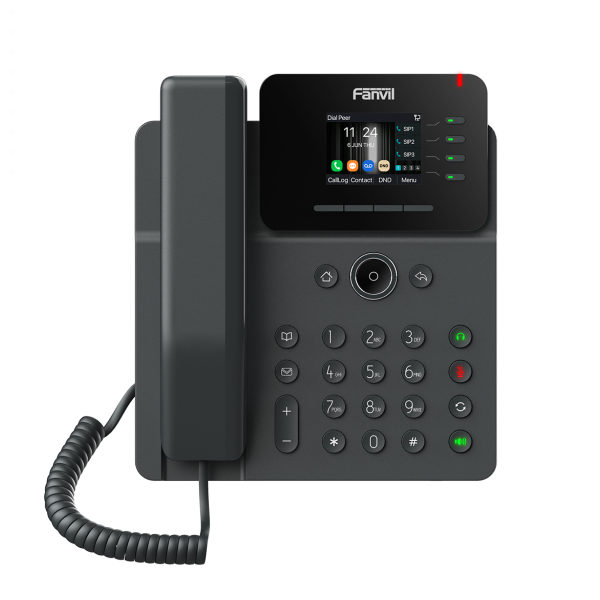

Fanvil V61G Prime Business IP Phone

A Stylish and User Friendly Business IP Phone with a 2.4 Inch Colour Screen, HD Voice, 4 SIP Lines and 6 Way Audio Conferencing

About the Fanvil V61G

The Fanvil V61G is a sleek IP Phone offering a 2.4 Inch HD Colour Screen, 4 SIP lines, and 6 Way Audio Conferencing. With its rich functions that include HD Audio, Dual Gigabit Ethernet Ports, and Integrated PoE, it's ideal for businesses seeking reliable and feature rich communication solutions.

HD Colour Screen

Inheriting the aesthetic design of the V Series IP Phones, the Fanvil V61G features a 2.4 Inch HD Colour Screen, 12 DSS Keys and LED Light, providing a more comfortable user experience.

Integrated Hall Switch

Ensure that the Handset is correctly positioned using Magnetic induction. No popping noises when picking up or hanging up the Handset, ideal for quiet environments. More durable compared to traditional Hook Switches.

Crystal Clear Audio

The Fanvil V61G supports Wideband Audio Codec Opus and G.722. It is coupled with Noise Reduction Technology and Full Duplex AEC, providing High Definition voice calls even in noisy and busy environments including Open Offices and Call Centres.

6 Way Audio Conference

Supporting 6 Way Audio Conference and Audio Conference Management Mode, the Fanvil V61G enables the conference to be managed efficiently and features including Hold, Remove and Mute the call of partcipants to be easily managed.

The V61G is compatible with SIP and Standard Security Products.

Features

• 2.4 Inch Colour Screen
• Supports Audio Codec G.7222 and Opus HD Audio on the Speakerphone and on the Handset
• Supports 6 Way Audio Conferencing
• Available to Link with Security Products and can be Easily Customised into Various Security Solutions for Reducing Investment
• Dual Gigabit Ports, Integrated PoE
• Up to 12 DSS Keys, Every DSS Key can be Set as Line / BLF or Speed Dial Keys
• Supports 4 SIP Lines

Technical Specifications:

Phone Features

• Local Phonebook (1000 entries)
• Remote Phonebook (XML/LDAP)
• Call logs (In / Out / Missed, 1000 Entries)
• Blocked List / Allowed List
• Screensaver, SIP Hotspot
• Voice Message Waiting Indication (VMWI)
• Programmable DSS / Soft Keys
• Network Time Synchronization
• Support Poly Wireless Headset (Through Poly APD-80 EHS Cable)
• Support Jabra Wireless Headset (Through Fanvil EHS20 EHS Cable)
• Support Recording (Via Server)
• Action URL / Active URI
• uaCSTA, Dial Plan

Generic Features

• 2.4 Inch - 320 x 240 Colour Screen
• 4 SIP Lines, HD Voice
• Dual Gigabit Ports, PoE Enabled
• Intelligent DSS Keys
• Handset / Handsfree / Headset Mode
• Desktop Stand / Wall Mount (Wall Mount not Included)
• Optional External Power Supply (Not Included)
• Handset with Hall Effect Sensor Switch

Audio

• HD Voice Microphone / Speaker (Handset/Handsfree, 0 ~ 7KHz Frequency Response)
• HAC Handset
• Wideband ADC/DAC 16Khz Sampling
• Narrowband Codec - G.711a/u, G.723.1, G.726, G.729 G.729A/B, G.729B, G.729AB, iLBC
• Wideband Codec - G.722, Opus
• Full Duplex Acoustic Echo Canceller (AEC)
• Voice Activity Detection (VAD) / Comfort Noise Generation (CNG) / Background Noise Estimation (BNE) / Noise Reduction (NR) / Automatic Gain Control (AGC)
• Packet Loss Concealment (PLC)
• Dynamic Adaptive Jitter Buffer
• DTMF - In Band, Out of Band (RFC2833/ SIP INFO)
• VQM - Voice Quality Monitoring

Network

• Physical - 10/100/1000 Mbps Ethernet, Dual Bridged Port for PC Bypass
• IP Mode - IPv4/IPv6/IPv4&IPv6
• IP Configuration - Static IP / DHCP / PPPoE
• Network Access Control - 802.1x
• VPN - OpenVPN / L2TP
• VLAN, LLDP, CDP, QoS
• RTCP-XR (RFC3611), VQ-RTCPXR (RFC6035)

Protocols

• SIP2.0 over UDP/TCP/TLS
• DNS A/SRV/NAPTR
• RTP/RTCP/SRTP
• STUN, DHCP, CDP, LLDP, PPPoE
• 802.1x, OpenVPN
• SNTP, FTP/TFTP
• HTTP/HTTPS
• TR-069, AES128 & AES256
• Customise Ringtone
• Multicast
• Action Plan, Group Listening

Call Features

• Call Out / Answer / Reject
• Mute / Unmute / (Microphone)
• Call Hold / Resume
• Call Waiting, Speed Dial
• Intercom, Caller ID Display
• Anonymous Call (Hide Caller ID)
• Call Forwarding (Always / Busy / No Answer)
• Call Transfer (Attended/Unattended
• BLF, Redial, Do not Disturb
• Call Parking/Pick-Up (Depending on Server)
• Auto Answering
• Voice Message (With Server)
• 6 Way Audio Conferencing
• Hot Line, Hot Desking
• Call Back, IP Direct Dial

Deployment and Management

• Auto-Provisioning via FTP/TFTP/HTTP/HTTPS/DHCP OPT66/SIPPNP/TR-069
• Web Management Portal
• Web Based Packet Dump
• Configuration Export / Import
• Phonebook Import/Export
• Firmware Upgrade
• Syslog

Package Contents

• Fanvil V61G IP Phone
• Handset, Handset Curly Cord
• Desk Stand
• Ethernet Cable
• Quick Installation Guide
