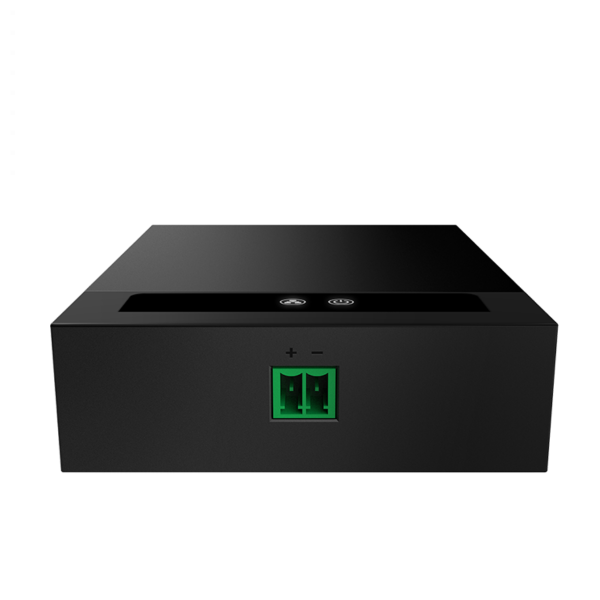

Fanvil PN1 2-Wire Converter

Converts IP Signals to 2-Wire, Converts 2-Wire Signals Back to IP, Facilitates Reuse of Exisiting Wiring, Provides PoE (Power over Ethernet) to IP Devices

About the Fanvil PN1

The Fanvil PN1 is a 2-Wire Converter that lets you make the most of your existing wiring. It's incredibly simple to set up - just plug it in, and you're good to go, meaning no complicated installation or new cables are needed. This saves a lot of time during setup and significantly cuts down on overall wiring costs. It's an ideal, cost-effective solution for quickly getting your system up and running in any existing building.

Main Features

• Connect any PoE Enabled IP Device Using a 2-Wire Cable to Simplify the Wiring Process
• Reuse Existing Wires (PSTN & AWG Cables) to Saving Wiring Costs
• Compatible with Fanvil PN8 and Fanvil PN24 2-Wire Switches for Network and Power Supply, Enabling Flexible Networking
• No Master Slave Distinction Between the Two PN1 Converters, Maximum Transmission Distance is up to 300 Metres (Network and Power Supply)
• Standard PoE Output (IEEE 802.3af/at)

Specifications

• Body Material - ABS
• Ethernet Interface - Connector Type - RJ45, Speed - 10/100 Base T, Auto-Negotiation, IEEE 802.3 af/at PoE+
• Status Indicator Lights - Power Indicator - Red, Network Indicator - Green
• Power - 100V-240V Input, Max 80W Output
• Transmission Distance - 300M (Network and Power Supply),1600M (Only Supply Network), Depends on Wiring and Interference, CAT 5e, 24AWG, RVV 2*0.5, or Similar
• installation - Wall Mounted - Flush Mounted
• Dimesions - 85mm x 68mm x 22.7mm

Package Contents

• Fanvil PN1- 2-Wire Converter
• Quick Installation Guide
