  • Up to 10 Simultaneous Calls
  • Up to 10 Handsets
  • Up to 20 SIP Accounts
  • Wireless Coverage Extends to up to 50m Indoors and up to 300m Outdoors
  • 2 Inch 240 x 320 Colour Screen
  • Includes the Fanvil W710D Base Station and the Fanvil W610D Handset

Fanvil Linkvil W710P DECT Phone System

Fanvil
PMC Product code
20594
Manufacturer's Product Code
fanvil-w710p
In Stock
Condition
Brand New
£126.17 £151.40
VisaMastercardAmerican ExpressMaestroPayPalKlarnaAppleGoogle Pay

Free shipping when you spend over £150*Free shipping when you spend over £150

DHL Premium shippingDHL Premium shipping

*UK Mainland Only. Some locations and products not eligible due to weight & size. Courier company not guaranteed. For more information, please contact us.

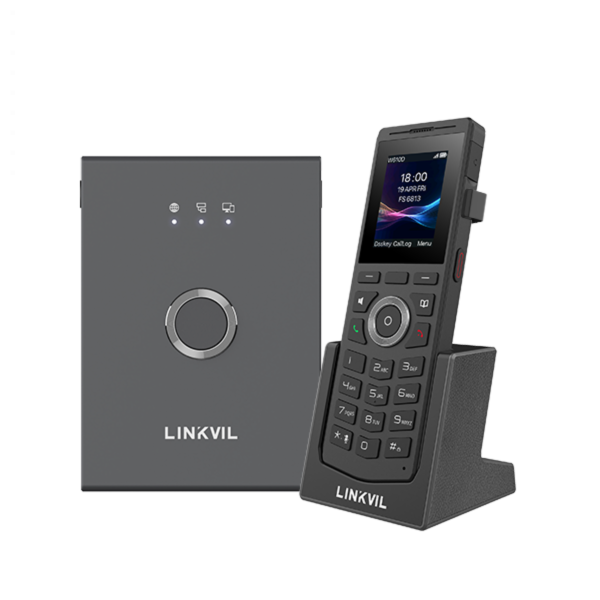

About the Fanvil Linkvil W710P

Designed for small and medium businesses, the Fanvil W710P is a straightforward DECT IP System that boosts mobility. It includes the W710D Base Station and the W610D Cordless DECT Handset, providing excellent flexibility and eliminating new wiring expenses.

The system can register up to 10 Fanvil W610D DECT Handsets and boasts robust capacity for 20 SIP Accounts and 10 simultaneous Calls.

Users can even make internal calls via LAN without SIP account registration. Enjoy dependable wireless communication and crystal-clear voice quality, ideal for short-range communication.

Key Features

  • Up to 10 Simultaneous Calls
  • Up to 10 Handsets
  • Up to 20 SIP Accounts
  • Up to 10 Internal Extensions
  • Wireless Signal Coverage Extends up to 50m Indoors and up to 300m Outdoors
  • 2 Inch 240 x 320 Pixel Colour Screen with Smooth User Interface
  • Supports 16 Virtual DSS Keys and 1 Physical Side Key
  • Local Phonebook - 1000 Local Contacts
  • Supports XML / LDAP Remote Phonebook
  • Up to 8 Hours of Talk Time and up to 160 Hours of Standby Time
  • Supports Intelligent Noise Reduction and Acoustic Shield
  • Send and Receive SMS Messages for Task Reminders

Specifications:

General

  • 10 Simultaneous Calls
  • Wireless Signal Coverage up to 50m Indoors and Up to 300m Outdoors
  • 10 Terminals
  • 20 SIP Accounts
  • 10 Internal Extensions
  • 10 SIP Servers
  • 2 Inch 240 x 320 Pixel Colour HD Display
  • Supports 16 Virtual DSS Keys and 1 Physical Side Key
  • HD Voice
  • Incoming Vibration Alarm
  • Auto Answer / Speed Dial / Call Waiting / 6 Way Conference
  • Supports Multiple Laguages - English / Japanese / Korean / French / German / Dutch / Spanish / Italian / Polish / Portuguese / Greek / Turkish / Russian / Chinese / Tra-Chinese

Audio

  • Narrowband Codec - G.711a/u, G.729, G.729A, G.729B, G.729AB
    Wideband Codec - G.722, Opus

Deployment and Maintenance

  • Auto Provisioning via FTP / TFTP /HTTP / HTTPS / DHCP OPT66 / SIP
  • PnP/TR-069
  • Web Management Interface
  • Web Based Packet Dump
  • Configuration Export / Import
  • Firmware Upgrade
  • Syslog

Product Specifications

  • WD610D - Drop Height - 1.8m
  • W710D - DC Input -  5V/1A / W610D DC Input - 5V/2A
  • W710D RJ45 Port x2 - Network x1, PC x1 (Bridged to Network)
  • W710D Power - DC5V/1A or PoE
  • W710D Power Consumption (PoE) - 1.17W-1.39W
  • W710D Power Consumption (Power Adapter) - 0.803W - 0.94W
  • Dimensions - W610D - 156mm x 53mm x 17.7mm, W710D - 140mm x 100mm x 26mm

Terminal Management

  • Add / Delete / Import / Export
  • Check Terminal Information
  • Configure Terminal - Reset, Upgrade, DND
  • Configuration Management - 10 Terminal Configuration Files
  • Trouble Removal - Capture Package, Syslog
  • Local Phonebook - 1000 Local Contact for each Terminal
  • XML / LDAP Phonebook
  • 20000 Call Logs
  • Call Log Statistics - All, Incoming, Outgoing, Missed, Forward

DECT

Frequency Bands:

  • 1880~1900 MHz (European/South Africa ) - 10 Channels Default Item
  • 1920~1930 MHz (America/Canada ) - 5 Channels
  • 1893~1906 MHz (Japan ) - 5 Channels
  • 1880~1895 MHz (Taiwan,China ) - 8 Channels
  • 1910~1920 MHz (Brazil ) - 5 Channels
  • 1786~1792 MHz (South Korea ) - 3 Channels
  • 1910~1930 MHz (Latin America ) - 10 Channels
  • 1909~1929 MHz (Argentina ) -10 Channels

Network

  • DECT Protocol
  • 10/100 Mbps Ethernet (Bridge Connection)
  • IP Mode - IPv4 / IPv6 / IPv4&IPv6
  • Static IP / DHCP
  • 802.1x Network Access Permission Authentication
  • VPN - L2TP / OpenVPN
  • VLAN / LLDP / CDP

Protocols

  • DECT, UDP / TCP / TLS
  • RTP / SRTP / STUN / DHCP / IPv6
  • LLDP, 802.1x, L2TP, openVPN
  • SNTP / TR-069
  • FTP / TFTP / HTTP / HTTPS

Package Contents

  • 1 x Fanvil W610D Cordless DECT Handset
  • 1 x Fanvil W710D Base Station
  • 1 x Charging Base
  • 1 x Belt Clip
  • 1 x Rechargeable Battery - 1900mAh
  • User Documentation
More Information
Product Details
ColourGrey
Manufacturer's Code:fanvil-w710p
EAN6937295606652
Warranty12 months
ManufacturerFanvil
Product Type
Line TypeVoIP/SIP
Fanvil Handset SeriesW Series - Cordless Phone
For use withVoIP / SIP
Please Note
Please noteAll information is provided for reference only. If you are unsure about any of the features listed, please check the manufacturer's official information.
