Fanvil Linkvil DB20-H - All in One Phone Station

SA Sleek, All in One Phone Station with Seamless Communication for PC and Smartphone

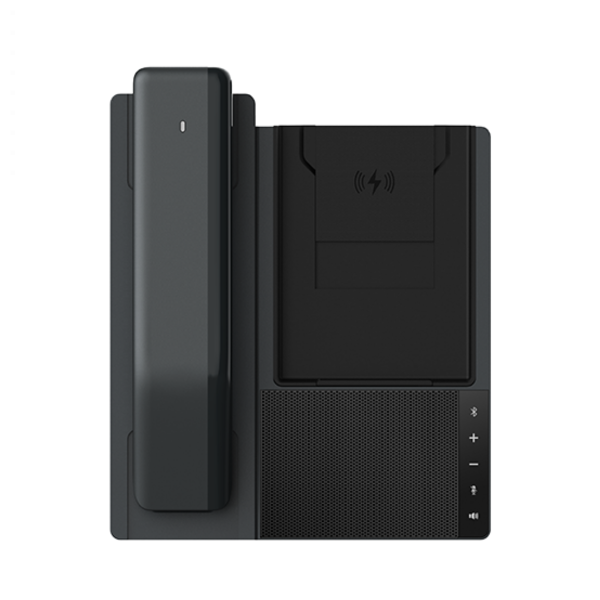

About the Fanvil Linkvil DB20-H

The LINKVIL DB20-H by Fanvil is an All-in-One Phone Station designed for seamless communication with PC's and Smartphones.

The versatile Desktop accessory has a primary purpose - to provide a seamless communication experience by bridging calls from your PC (via Softphones or Unified Communications - UC Applications) and your Smartphone - transforming them into a more traditional phone experience.

It includes a Wireless Bluetooth 5.4 Handset with on Handset Controls, allowing you to have a traditional phone experience even when making calls through your PC or Ssmartphone. The Bluetooth Handset offers a 10m range and a Talk Time of about 14 hours.

The Base Unit features a powerful 3W Speakerphone with a Dual Microphone System and a Voice Pickup range of up to 1.5m, ensuring clear audio for hands-free conversations. It also includes Environmental Noise Cancellation (ENC) and Adaptive Noise Suppression (ANS) technologies.

It incorporates a 10W Wireless Charger for your Smartphone (Smartphone must be Wireless Charging Compatible), helping to keep your mobile device powered and your desk clutter-free.

The Base has easily accessible buttons for common call functions like picking up/hanging up, volume control, and Bluetooth connectivity.

A tiltable stand is included for better viewing angles, especially useful during video calls.

It connects to your PC via USB and to your smartphone via Bluetooth 5.4.

Features

• Free Up Desk Space with an All in One Design
• Call Seamlessly Between Softphone/UC and Phone Calls
• Speakerphone with Dual Mic with 1.5m Voice Pickup Range - ENC and ANS Enabled
• Bluetooth 5.4 Wireless Handset with Anti-Interference, On Handset Controls and a 10m Range
• Wireless Phone Charger (Phone must be Wireless Charging Enabled)
• Tiltable Stand Providing a Better Image Angle During Video Calls
• Instant Access Buttons for Pick-up, Hang-up Subject to Softphone Services), Volume +/-, Mute and Bluetooth

Specifications:

Base

• Microphone - Type 2 Omnidirectional Analogue Microphones, Voice Pickup Range - 1.5m, Sensitivity: 32dBFs, Frequency Range - 45Hz~7KHz, SNR - >65dB(A), Full Duplex, Beamforming, Environment Noise Cancellation (ENC), Adjustive Noise Suppression (ANS), Automatic Gain Control (AGC), Reverberation Reduction
• Speakerphone - Speaker Size / Rated Power - φ40mm/4Ω 3W, Sensitivity - 87dB±2dB, Frequency Range - 195Hz~20KHz, Impedance -  4Ω@1Khz, Max Input Power - 5W, Music Mode Bandwidth - 195Hz~20KHz, Speak Mode aBndwidth - 195Hz~8KHz
• Audio Codecs - SBC
• Power Supply - 12V / 1.5A
• Power Consumption - Max. 18W

Wireless Charging

• Wireless Charging Coils - 1
• Output Power - 10W
• Effective Distance of Wireless Charging - Coil is Aligned with the Centre within a Diameter Range of 3~5mm

Wireless Handset

• Microphone - Type - 1 Omni-Directional Analogue Microphone, Sensitivity:  -38dBFs, Frequency Range - 45Hz~8KHz
• Hearing Aid Compatible - (HAC)
• Battery Type - Lithium Polymer Battery
• Battery Capacity - 300mAh, Talk Time - 14 Hours, Charging Time 3.4 Hours, Standby Time - 21h (Automatic Shut Down if no Operation Performed for 10 Minutes)

Connectivity

• Base (PC / Mobile Device) - USB-C / Bluetooth
• Wireless Handset - Bluetooth
• Bluetooth - Bluetooth Version 5.4, Profiles -  A2DP, HSP, HFP, Operating Range - Up to 10m / 33ft, Pairing - Up to 8 Devices, Simultaneous Connections - 2

Compatibility

• Compatible with - Apps and UC Softphone Platforms

Physical Specifications:

Weights and Dimensions

• Base Weight - 561g
• Wireless Handset Weight - 190g
• Base Dimensions - 204.8mm x 174.9mm x 114.8mm
• Wireless Handset Dimensions - 203.7mm x 45.8mm x 47mm

Package Contents

• Fanvil DB20-H All in One Phone Station
• Wireless Handset
• Power Adapter
• USB Cable
• Quick Start Guide
