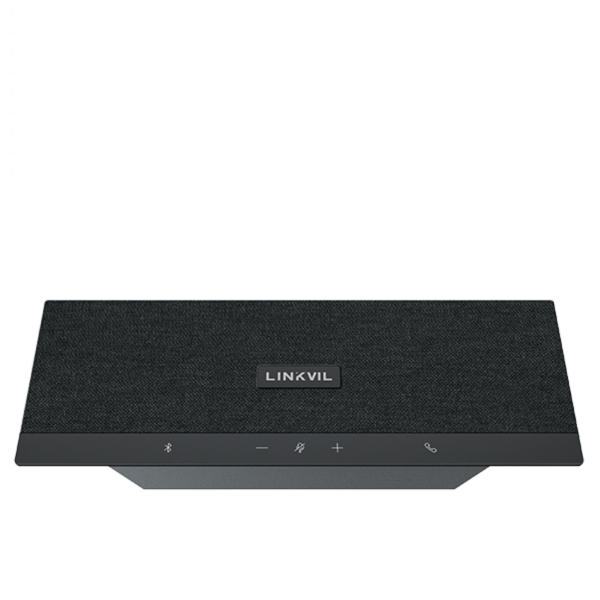

Fanvil Linkvil CS40 Conferencing Speakerphone

About the CS40 Speakerphone

The Fanvil CS40 Speakerphone is designed to deliver a superior conferencing experience with seamless connectivity and powerful, room-filling audio. Perfect for medium sized meeting spaces.

Featuring a modern design with a sophisticated fabric speaker cover and integrated ambiant lighting, the Speakerphone effortlessly complements all meeting room styles.

Integrated cable management ensures a tidy, professional desk environment.

The Speakerphone provides up to 10 hours of talk time, up to 8 hours of music time and up to 16 hours of standby time.

Equipped with a powerful 5W x 2 Dual Speaker for rich audio in medium meeting rooms. Features Trio-Omnidirectional Microphones that offer a 3 metre voice pickup range, supported by ENC (Environmental Noise Cancellation) and ANS (Automatic Noise Suppression) and AGC (Automatic Gain Control) for consistent clear conversations.

Enjoy total flexibility with both USB-A/C plug-and-play connectivity and Bluetooth 5.4 connectivity, allowing instant pairing with Laptops, PCs, and Smartphones.

Instant Access Touch Controls for Bluetooth, Mute, Volume Up / Down, Play / Pause, Pickup / Hangup via the buttons on top of the Speakerphone.

Features

• Flexible Connectivity -  USB-A/C and Bluetooth 5.4
• Up to 10 Hours of Talk Time
• Up to 8 Hours of Music Time
• Up to 16 Hours of Standby Time
• 5W*2 Loud Speaker & Trio Omni-Directional Microphones that Provide up to a 3 Metre Voice Pickup Range
• ENC (Environmental Noise Cancellation)
• ANS (Automatic Noise Suppression)
• AGC (Automatic Gain Control)
• Modern Fabric Design with Ambient Lighting
• Integrated Cable Management Ensures a Tidy and Professional Desk Environment
• Touch Control Buttons on Top of the Speakerphone for Bluetooth, Mute, Volume Up / Down, Play / Pause, Pickup / Hangup

Specifications

Speaker

• Size / Rated Power - φ52mm*2/ 4Ω 5W
• Sensitivity - 87dB±2dB
• Frequency Range - 100Hz~20KHz
• Music Mode Bandwidth - 100Hz~20KHz
• Speak Mode Bandwidth - 100z~20KHz

Microphone

• Type - 3 Omni-Directional Microphones
• Voice Pickup Range - 3 Metres
• Sensitivity - 32dBFs
• Frequency - 20Hz - 8KHz
• ENC (Environmental Noise Cancellation)
• ANS (Automatic Noise Suppression)
• AGC (Automatic Gain Control)

Connectivity

• Connect to PC / Mobile Device via USB-A/C & Bluetooth
• Bluetooth Version 5.4
• Profiles - HSP V1.2, HFP V1.7, A2DP V1.2
• Operating Range - Up to 20m
• Pairing - Pair up to 8 Devices
• Simultaneous Connections - 2

Battery

• Talk Time - Up to 10 Hours
• Music Time - Up to 8 Hours
• Standby Time - Up to 16 Hours
• Charging Time - 3 Hours Approxmately
• Battery Capacity - 4000mAh

Dimensions

• CS40 Speakerphone - 300mm x 120mm x 38mm
• USB Cable Length - 1.2m

Package Contents

• Fanvil Linkvil CS40 Speakerphone
• Quick Start Guide
