Fanvil i56A | SIP Indoor Station

Fanvil i56A | SIP Indoor Station

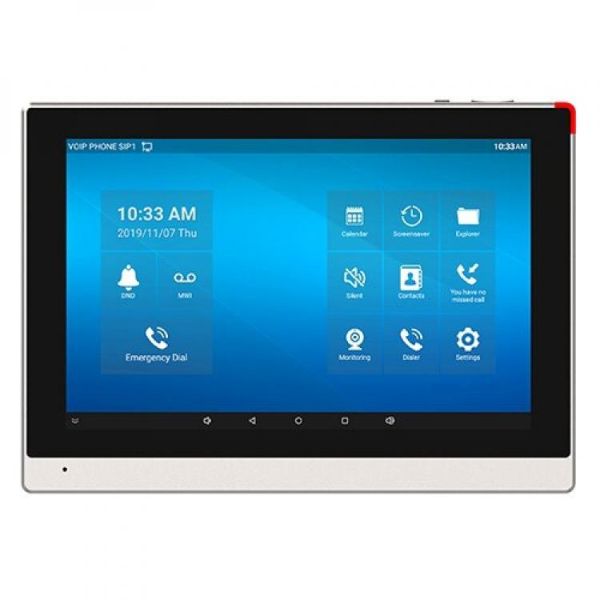

The Fanvil i56A is a 10.1 inch Colour Touch Screen Indoor Station with built-in Bluetooth 5.0 and 2.4G/5G Wi-Fi, integrated with Micro USB and TF interface. Based on Android 9.0 Operating System, the interface operation is smooth and intelligent. It is mainly used in residential areas, office buildings and other places for receiving calls and communicating through the door phone and needing to open the door remotely. It can provide reliable security assurance and easy access control service for users, creating a safe and comfortable environment. It can be connected to alarms and other intelligent security devices via rich interfaces.

Elegant Design with 10.1 Inch Colour Screen

The Fanvil i56A delivers a user friendly experience with an elegant design and a clear 10.1 Inch Colour Touch Screen.

Optimised Android 9.0 Operating System

Android 9.0 in Fanvil i56A supports a greater compatibility and more powerful functions.

Easier Operation

With a clear touch screen the Fanvil i56A offers direct access to all key functions at your fingertips. providing a smoother operation experience for users.

HD Audio and Video Communication

Users can communicate with visitors with the Fanvil's i56A superb audio and clear video images.

Built in 2.4G / 5G Wi-Fi

Fanvil i56A supports built in 2.4G/5G Wi-Fi and it allows users to choose wireless connection mode for different requirements.

Rich Interfaces

The Fanvil i56A is flexible and powerful with rich interfaces to connect more security devices.

Highlights

• Android 9.0 OS
• 10.1 Inch Colour Touch Screen
• HD Voice with Built in 1W Double Speakers with AEC
• Supports Visul Intercom amd Remote Access Control
• Real-Time Monitor of the Door Phone and Cameras
• Built-in 2.4G/5G Wi-Fi and Bluetooth 5.0
• 1 Pair of RS-485 Interfaces
• 8 Alarm Input Interfaces and 2 Short Circuit Output Interfaces
• Wall Mounted and Desktop Installation Methods (with the Desktop Stand) - Desktop Stand not Included Please Click here to Purchase
• Compatible with Major Platforms - 3CX, Avaya, Asterisk, BroadSoft, Metaswitch, Elastix and etc
• Stylish and Simple

Generic

• 6 SIP LInes
• HD VOice
• PoE
• Optional External Power Supply ( Not Included)

Display

1 x LCD - 10.1 Inch - 1280 x 800 Colour Touch Screen

Audio

• Wideband ADC/DAC 16KHz Sampling
• Narrowband Codec - G.711a/u, G.729AB, iLBc
• Wideband Codec - G.722, Opus
• Acoustic Echo Canceller (AEC)
• Voice Activity Detection (VAD) / Comfort Noise Generation (CNG) /Background Noise Estimation (BNE)
• Packet Loss Concealment (PLC)
• Dynamic Adaptive Jitter Buffer up to 300ms
• DTMF - In-band, Out of Band DTMF (RFC2833) / SIP INFO

Video

• Hardware Video Decoding - H.264
• Video Call Resolution: QVGA / CIF / VGA / 4CIF / 720P / 1080P

Network

• 10/100 Mbps Ethernet
• IP Mode - IPv4
• IP Configuration: Static / DHCP
• Network Access Control: 802.1x
• VPN - OpenVPN (Requires Third-Party App Support)
• VLAN
• LLDP
• CDP
• QoS
• Wi-Fi

Protocols

• SIP v1 (RFC2543), v2 (RFC3261) over UDP/TCP/TLS
• DNS A/SRV/NAPTR
• RTP/RTCP/SRTP
• RTSP
• STUN
• DHCP
• CDP
• LLDP
• CDP
• 802.1x
• OpenVPN (Requires Third-Party app Support)
• SNTP
• FTP/TFTP
• HTTP/HTTPS
• TR-069

Deployment and Management

• Auto-Provisioning via FTP/TFTP/HTTP/HTTPS/DHCP OPT66/SIP PNP/TR-069
• Web Management Portal
• Supports Web
• Supports Encrypted Configuration Files Download with AES
• Supports Web Upgrade
• Supports Factory Reset Data

Physical Specifications

• 2 Keys (Power, Volume +/-)/li>
• 10 Pin Cable x1
• 6 Pin Cable x1
• 4 Pin Cable x1
• Wall-Mount Bracket x1
• Screws Kit x1
• RJ45 Interface x1
• RS485 Interface x1
• Micro USB Interface x1
• TF Slot x1
• 2 Embedded Short Circuit Output Interface
• 2 Relays - MAX DC30V / 2A, AC125V / 0.5A
• Alarm Input Interface x8
• Power - DC12V/1A or PoE
• Housing Material - ABS
• Installation - Wall Mountable, Desktop - Desktop Stand not Included Please Click here to Purchase
