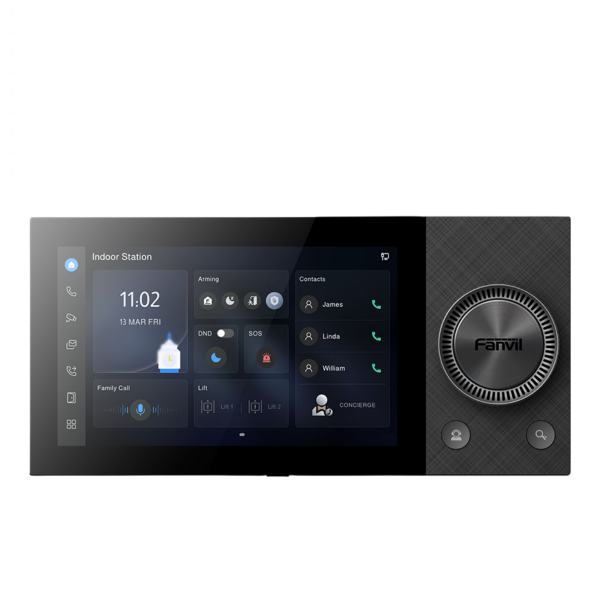

Fanvil i564W SIP Indoor Station

The Fanvil i564W is a Linux-based indoor SIP video intercom featuring a 7-inch colour touchscreen and a modern, intuitive user interface. Designed for use in offices, apartments, houses, villas, and commercial environments, it combines professional audio/video intercom functionality with integrated access control in a sleek, contemporary design.

Supporting high-definition audio and one-touch family calling, the i564W delivers clear and reliable communication, while a tactile rotary control button enhances usability by providing convenient access to functions including volume adjustment and additional smart features. Equipped with Wi-Fi 6, the i564W also provides fast and stable wireless connectivity for smoother video performance, reduced latency, and responsive day-to-day operation.

The i564W not only answers incoming calls from SIP intercom systems but can also make outgoing calls, monitor live video from intercoms or IP cameras, and support features including screenshots and weather widgets. A high-definition speaker with intelligent noise reduction and a 5-metre voice pickup range ensures excellent audio clarity and reliable communication.

Features

• Tactile Volume Control Button with Enhanced Acoustics for a Refined Look and Premium Feel
• One Touch Family Call for Clear and Instant Room to Room Communication
• HD Speaker with Smart Noise Cancellation and 5 Metre Voice Pickup
• Wi-Fi 6 and BLE Keys for Calling and Access
• Intuitive UI / UX Delivers a Seamless Experience

Specifications

•  Applications - Residential Communities, Office Buildings, Villas
• Display - 7 Inch IPS Colour Capacitive Touchscreen
• 6 SIP Accounts
• Resolution - 1024 x 600 Pixels
• Casing Material - ABS
• Physical Buttons - 1 Volume Control, 2 Shortcut Buttons
• Speaker - 5W Multimedia Speaker
• Wi-Fi - 2.4 GHz, Wi-Fi 6, IEEE 802.11 b/g/n/ax
• Bluetooth - Paired with BLE Key for Remote Control
• Supported Protocols - SIP 2.0 over UDP/TCP/TLS
• Audio - Narrowband Codec - G.711a, G.711u, G.723.1, G.726 (16/24/32/40 kbps), G.729AB, iLBC, Wideband codec - G.722, Opus, Full Duplex Handsfree Communication with Acoustic Echo Cancellation (AEC)
• Video - Hardware Decoding: H.264, H.265 (Optional), Resolution - QVGA, CIF, VGA, 4CIF, 720p, 1080p
• DTMF - In-Band, Out-of-Band (RFC2833, SIP INFO)
• Do not Disturb - Supported, User Defined Schedule
• Additional Features - One Touch Family Call, BLE Key for Door Unlocking and Call Handling, Customisable Incoming Call Ringtones, Remote Door Unlocking, Send and Receive Messages
• Interfaces - 8 Alarm Inputs, 1 Short Circuit Output, 1 Doorbell Input, 1 RS-485, 1 TF Card Slot (Up to 128 GB)
• Network - 2 RJ45 10/100 Mbps Self Adaptive Ethernet Ports
• Power Supply - 12 VDC, 2 A, PoE 802.3af
• Dimensions - 245.6mm x 117mm x 11mm (9.67 Inches x 4.61 Inches x 0.43 Inches (L x W x H)
• Installation - Wall Mounted, Compatible with CN, US, UK and EU Electrical Wall Boxes

Package Contents

• Fanvil i564W SIP Indoor Station
• Mounting Template, Screws & Bracket
• Quick Start Guide
