Fanvil i51W | SIP Indoor Station

Fanvil i51W | SIP Indoor Station

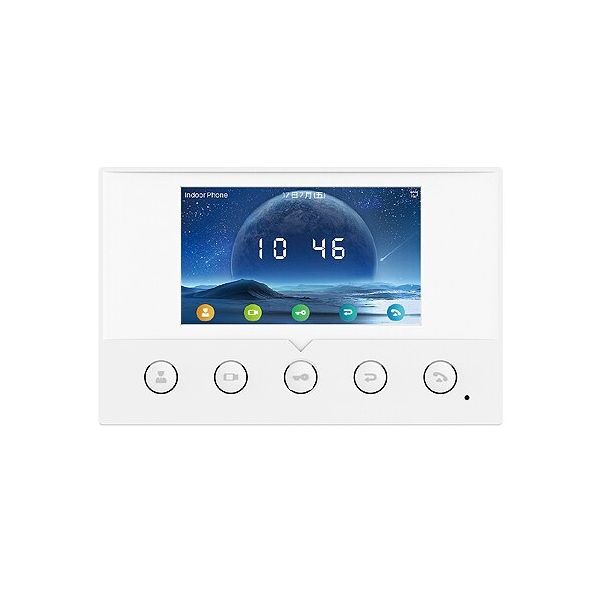

The Fanvil i51W is a 4.3 Inch Colour Screen SIP Indoor Station with 5 function buttons that can be applied in different indoor scenarios. Working with Doorphones and Intercoms at the entrance the Fanvil i51W can easily achieve remote access control, it can also be connected to alarms and other intelligent security devices via rich interfaces. It is mainly used in residential areas, office buildings and other places for receiving calls and communicating through the door phone and needing to open the door remotely. It can provide reliable security assurance and easy access control service for users, creating a safe and comfortable environment.

Elegant Design with 4.3 Inch Colour Screen

The Fanvil i51W delivers a user friendly experience with an elegant design and a clear 4.3 Inch Colour Screen.

HD Audio and Video Communication

Users can communicate with visitors with the Fanvil's i51W's superb audio and clear video images.

5 Easy to Access Physical Buttons

Users can easily achieve 5 different functions with one press on the Fanvil i51w SIP Indoor Station.

5 Functions Include

• Call Management
• Unlock
• Pickup
• Surveillance
• Back/Hang Up

Built in 2.4G Wi-Fi

The Fanvil i51W supports built in 2.4G Wi-Fi, allowing users to choose wireless connection mode for different requirements.

Rich Interfaces

The Fanvil i51W is flexible and powerful with rich interfaces to connect more security devices including - IP Phones, Door Sensors, PIR Sensors, Vibration Sensor, Door Phone, Emergency Button.

Highlights

• 4.3 Inch Capacitive Colour Screen
• 5 Physical Function Keys
• Built in 1.5W Speaker with AEC
• Supports Visual Intercom and Remote Access Control
• Real Time Monitor of the Door Phone and Cameras
• Built in 2.4G Wi-Fi
• 8 Alarm Input Interfaces
• 1 Pair of RS-485 Interfaces
• Wall Mount and Desktop Installation Methods (with the Desktop Stand - Desktop Stand not Included Please Click Here to Purchase
• Compatible with Major Platforms - 3CX, Avaya, Asterisk, BroadSoft, Metaswitch, Elastix and etc
• Stylish and Simple

Generic

• 4 SIP Lines
• HD Voice
• PoE
• Optional External Power Supply ( Not Included)

Display

• 1 x LCD - 4.3 Inch 480 x 272 Colour Screen

Audio

• Wideband ADC/DAC 16KHz Sampling
• Narrowband Codec - G.711A/U, G.723.1,G.726-32K,G.729AB, iLBC
• Wideband Codec - G.722, Opus
• Full Duplex Handsfree Speakerphone with AEC
• Voice Activity Detection (VAD) / Comfort Noise Generation (CNG) /Background Noise Estimation (BNE) / Noise Reduction (NR)
• Packet Loss Concealment (PLC)
• Dynamic Adaptive Jitter Buffer
• DTMF - In-band, Out of Band DTMF (RFC2833) / SIP INFO
• VQM Voice Quality Monitoring

Video

• Hardware Video Decoding - H.264
• Video Call Resolution - QVGA / CIF / VGA / 4CIF / 720P / 1080P

Network

• 10/100 Mbps Ethernet
• IP Mode - IPv44/IPv6/IPv4&IPv6
• IP Configuration: Static / DHCP / PPPoE
• VPN - L2TP / OpenVPN
• VLAN
• QoS
• RTCP-XR (RFC3611), VQ-RTCPXR(RFC6035)
• Wi-Fi

Protocols

• SIP v1 (RFC2543), v2 (RFC3261) over UDP/TCP/TLS
• RTP/RTCP/SRTP
• STUN
• DHCP
• IPv6
• PPPoE
• L2TP
• OpenVPN
• SNTP
• FTP/TFTP
• HTTP/HTTPS
• TR-069

Deployment and Management

• Auto-Provisioning via FTP/TFTP/HTTP/HTTPS/DHCP OPT66/SIP PNP/TR-069
• Web Management Portal
• Web-Based Packet Dump
• Configuration Export / Import
• Firmware Upgrade
• Syslog

Physical Specifications

• 5 Function Keys - Management Centre, Monitor, Unlock, Return/Hang Up Answer
• 10 Pin Cable x1
• 4 Pin Cable x1
• 2 Pin Cable x1
• Wall-Mount Bracket x1
• Screws Kit x1
• RJ45 Interface x1
• RS485 Interface x1
• Alarm Input Interface x8
• DC Power - 12V/1A
• Power Consumption (PoE) - 1.82~5.93 W
• Power Consumption (Adapter) - 1.54~4.78 W
• Installation -  Wall Mountable, Desktop - Desktop Stand not Included Please Click Here to Purchase
