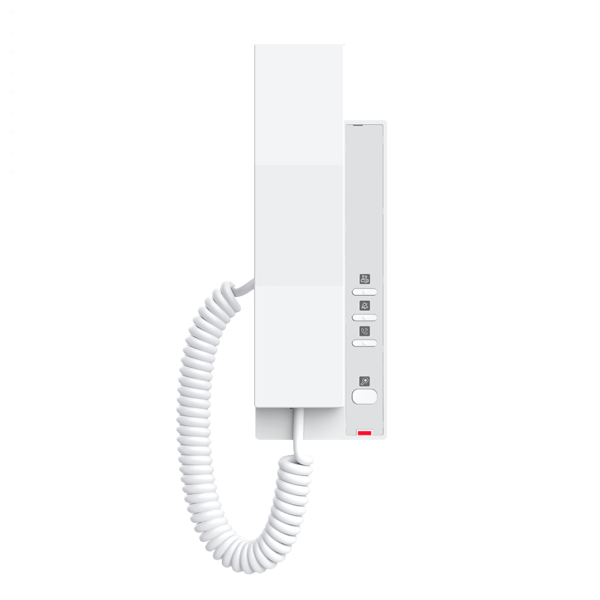

Fanvil i501W SIP Indoor Station

The Fanvil i501W SIP Indoor Station is a modern, cost-effective, screenless intercom solution designed to bring reliable and efficient communication to a wide range of environments, including residential buildings, office complexes, hotels, and gated communities. As a Wi-Fi-enabled version of the Fanvil i501, the i501W combines practical design with advanced connectivity, featuring built-in dual-band Wi-Fi with Wi-Fi 6 support for fast and stable network performance, making installation more flexible by removing the need for traditional cabling in many scenarios.

It is engineered to serve as a key part of an IP-based door entry system, allowing users to receive calls from door stations, communicate clearly via two-way audio, and remotely unlock doors with ease. With its support for SIP protocol integration, the device can be seamlessly incorporated into existing VoIP and intercom infrastructures, providing a scalable and future-proof solution for access control and internal communication systems.

Beyond its connectivity, the i501W is designed with usability and audio clarity in mind. It features a built-in 1W speaker paired with Acoustic Echo Cancellation (AEC) technology, ensuring clear, full-duplex hands-free communication even in busy or noisy environments.

The device also supports wideband audio codecs such as G.722 and Opus, delivering high-definition voice quality for more natural conversations. Its compact, screenless design keeps operation simple and intuitive, while programmable keys allow quick access to key functions such as door unlocking, intercom calling, and Do Not Disturb mode.

Overall, the Fanvil i501W stands out as a reliable, efficient, and easy-to-deploy indoor intercom station that enhances security, communication, and convenience across a variety of professional and residential applications.

Features

• Built-In Dual Band 2.4G & 5G Wi-Fi with Wi-Fi 6 Support
• Built In 1W Speaker and AEC Algorithm, Delivers High Quality Two Way Handsfree Calling
• Three Programmable Keys (Management / Do not Disturb / Unlock)
• Customisable Panel, Magnetic Handset
• Supports Wall Mounted Mode
• High Definition Audio, Supports Wideband Codecs G.722 and Opus for Clear Voice Communication
• Only Supports DC Power Supply Connectivity

Specifications

• Wi-Fi - 2.4G & 5G Supports Wi-Fi 6
• Supported Protocols - SIP 2.0 over UDP/TCP/TLS
• Audio - Narrowband Audio Codec - G.711A/U, G.723.1, G.726-16/24/32/40, G.729AB, iLBC, Broadband Audio Codec - G.722, OPUS, Full Duplex HandsFree Calling, Supports Acoustic Echo Cancellation (AEC)
• DTMF - In Band, Out of Band DTMF (RF2833), SIP Info
• Do Not Disturb - Supported and can be User Defined at the Time
• Additionally - Supports Customising of Incoming Call Ringtones, Supports Remote Door Unlocking
• Interface - 1 x Short Circuit Input
• Network - 10 / 100 Mbps Adaptive
• Power Consumption - Adapter - 0.9W~1.7W

Package Contents

• Fanvil i501W SIP Indoor Station
• Handset & Handset Cord
• Power Adapter
• Quick Imstallation Guide
