- Built in HD Camera with Infrared Night Vision
- Access Control by Call, by Code, by RFID / IC Card Reader and by Indoor Switch
- All in One Access Control, Intercom & Broadcasting
- HD Voice Speech Quality with Built in 3W Speaker and Acoustic Echo Canceller (AEC)
- Protection Level - IP65 and IK10
- Compatible with Major Platforms Including Asterisk, Broadsoft, 3CX, Metaswitch, Elastix and more
-
Flush Mount Installation

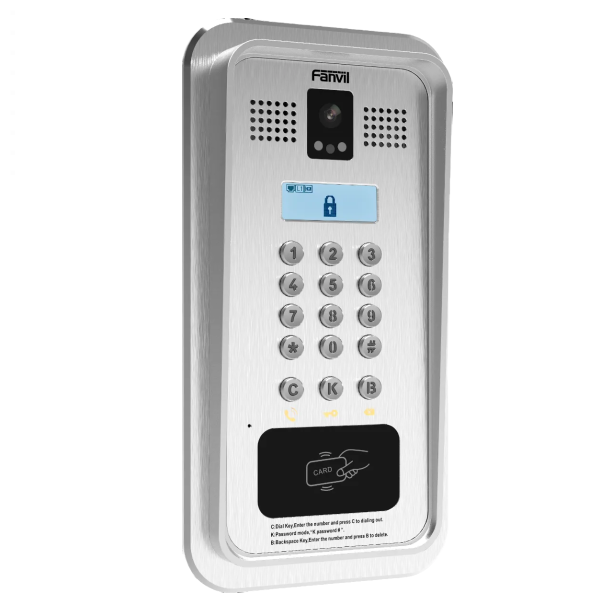

Fanvil i33VF SIP Video Door Phone
PMC Product code
20888
Manufacturer's Product Code
i33vf
In Stock
Condition
Brand New
£545.04 £654.05
About the Fanvil i33VF
Designed for the security industry, the Fanvil i33VF offers high reliability and superior performance as a flush-mounted SIP Video Door Phone. Its combination of LCD Display, HD Audio, and extreme durability makes it suitable for diverse outdoor environments. Key features include IP65 dust and waterproof protection, IK10 vandal resistant rating, and an operational temperature range from -40°C to 70°C.
The Fanvil i33VF delivers consistent, high quality video monitoring 24 hours a day, regardless of weather conditions. Its HD Camera, paired with infrared night vision, ensures visitors are clearly identifiable both day and night.
For flexibility, the device supports two video streams: one for continuous monitoring and a separate stream for smooth SIP video calls. Communication is made effortless with HD Audio, a Built In Speaker, and advanced background noise reduction.
Communication is made effortless with HD Audio, a Built In Speaker, and advanced background noise reduction.
The Fanvil i33VF SIP Door Phone offers versatility in access control, allowing users to unlock the door through three convenient methods - a local password, the use of RFID/IC Cards, or via remote DTMF Signaling.
Multi-Protection Design
With its IP65 waterproofing and dust protection, IK10 anti-collision rating, and a wide operating temperature range of -40°C to 70°C the i33VF is exceptionally durable and suitable for virtually any outdoor environment.
24 Hour Video Surveillance
The i33VF supports continuous, 24-hour door monitoring by connecting to any VMS (Video Management System) through the standard ONVIF protocol.
Supports Wiegand Card Reader & Door Magnetic Detectors
The Fanvil i33VF meets the demands of high security locations, including Prisons and Banks. It features support for external Wiegand card readers for advanced door control and can connect to two magnetic detectors to trigger an alarm if a door's open timeout is exceeded. When safety and security are your primary concern, the i33VF provides the necessary robust solution.
Highlights
- Built in HD Camera with Infrared Night Vision, Adopt H.264 Codec
- Access Control by Call, by Code, by RFID / IC Card Reader and by Indoor Switch
- All in One Access Control, Intercom and Broadcasting
- HD Voice Speech Quality with Built in 3W Speaker and Acoustic Echo Canceller (AEC)
- Protection Level - IP65 and IK10
- -40°C to 70°C Wide Range Temperature Adaptability
- Supports Online Management and Upgrades
- Compatible with Major Platforms Including Asterisk, Broadsoft, 3CX, Metaswitch, Elastix and more
Specifications:
Generic
- 2 SIP Lines, Supports SIP 2.0 (RFC3261 and Related RFC
- Duplex Handsfree
- Default Auto Answer
- Intercom Function
- industrial Standard Certifications - IP65, IK10, CE / FCC
Access Control Function
- Unlock Door Method - DTMF, Password, RFID / IC Card, Indoor Switch, WEB Page
- Supports 5000 Remote Access List
- Supports 5000 RFID / IC Cards
- Supports 200,000 Door Open Records
- Supports Electric Lock Internal or External Power Supply Options
- Auto MultiCast Function
- Supports ONVIF
- Network Time Synchronisation
- Action URL / Active URI
Networking
- Supports PoE
- Primary and Secondary DNS Servers are Supported
- Supports RTSP
- Supports SNTP Client
- Supports VPN L2TP / OpenVPN
- Supports SRTP
- Supports HTTP / HTTPS Web Pages
- Supports Qos - 802.1p / q, DSCP
- DHCP / Static / PPPoE
- Supports STUN
Deployment and Maintenance
- Auto-Provisioning via FTP / TFTP / HTTP / HTTPS / DHCP / TR069 / SIP PNP
- Web Management Portal
- Web Based Packet Dump
- Configuration Import / Export
- Firmware Upgrade
- Syslog
Protocols
- SIP2.0 over UDP / TCP / TLS
- RTP / RTCP / SRTP
- STUN, DHCP, LLDP, PPPoE
- 802.1x, L2TP, OpenVPN
- SNTP, FTP/ TFTP
- HTTP / HTTPS
- TR-069
Audio
- Wideband ADC / DAC 16KHz Sampling
- Narrowband Codec - G.711a/u, G.723.1, G.726-32K, G.729AB
- Wideband Codec - G.722
- Duplex Intercom with Acoustic Echo Canceller (AEC) Handsfree Mode, 96ms Tail Length
- Voice Activity Detection (VAD) / Comfort Noise Generation (CNG) /Background Noise Estimation (BNE)
- Packet Loss Concealment (PLC)
- Dynamic Adaptive Jitter Buffer - Up to 300ms
- DTMF - In-Band, Out of Band DTMF (RFC2833) / SIP INFO
Video
- Sensor - 1/2.7” Colour CMOS
- 2 Megapixels
- Video Code - H.264
- Resolution Main Stream - 1280 x 720 @ 25fps, Sub Stream - 704 x 576 (D1)@25fps
- Viewing Angke - 112° (H) x 84° (V)
- Minimum Illumination - 0.1Lux, Support for Infrared Illumination
Physical
- LCD Pixels - 128 x 48 Dots
- LCD Dimensions - 64mm x 30.5mm x 5.2mm
- Keypad - 15 Keys with Backlight - Invcluding 12 Number Keys, 3 Function Keys for Detail / Password Mode / Backspace
- 1 x RJ45 Port 10 / 100M Adaptive
- 1 Weigand Port
- 1 Audio Output Interface
- 1 Recording Output Interface
- 2 Relays - MAX DC30V / 2A, AC125V / 0.5A for Door Opener
- Active Switching Output - 12V / 500mA DC (Only 1 Relay Support)
- 2 Indoor Switch
- 2 Door Magnetic Detectiom
- 1 Tamper Alarm Switch
- Temperature Controller Power - 12V / 1A External PSU
- RFID Reader - ID (EM4100,125KHz) &IC(MIFARE ONE,13.56MHz)
- Housing Material - Aluminium Alloy Shell
- Protection Level - IP65 and IK10
Package Contents
- Fanvil i33VF Video Door Phone
- Connector
- Quick Installation Guide
- Mounting Template
- RFID Card
- Screw and Wench
| Product Details | |
|---|---|
| Manufacturer's Code: | i33vf |
| EAN | 6937295601862 |
| Warranty | 2 Years |
| Manufacturer | Fanvil |
| Type | |
| Door Entry Type | Audio, Video, Keypad, Call Buttons |
| Connection Type | VoIP / SIP |
| Please Note | |
| Please note | All information is provided for reference only. If you are unsure about any of the features listed, please check the manufacturer's official information. |
