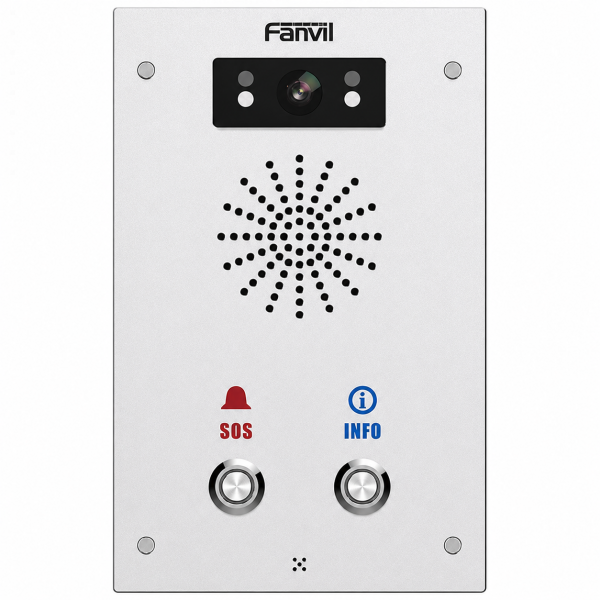

Fanvil i16SV-02P SIP Video Intercom

The Fanvil i16SV-02P SIP Video Intercom is a professional outdoor video intercom designed for secure visitor management, emergency assistance and access control applications. Featuring a built-in 2MP HD camera, two programmable call buttons, HD voice technology and rugged IP65 / IK10 protection, it provides reliable audio and video communication in commercial, industrial and public environments.

Designed for Outdoor Security & Access Control

The Fanvil i16SV-02P has been developed for organisations that require both visual verification and dependable communication at entrances, gates, public areas and unmanned locations. Combining HD video, HD audio, dual SIP account support, Power over Ethernet (PoE), multicast paging and integrated relay control, the intercom can be deployed as part of a complete VoIP communications and access control solution.

Its robust die-cast aluminium construction and vandal-resistant design make it suitable for schools, hospitals, warehouses, transport hubs, industrial facilities, car parks and other demanding outdoor environments where security, reliability and durability are essential.

HD Video & Crystal-Clear Audio Communication

Equipped with a built-in 2MP HD camera and support for wideband audio codecs including G.722 and Opus, the Fanvil i16SV-02P delivers both clear video monitoring and exceptional voice communication. Combined with full-duplex audio and acoustic echo cancellation, the intercom provides natural conversations and enhanced visitor identification.

Flexible Call Button Configuration

The Fanvil i16SV-02P features two programmable call buttons that can be configured to suit a wide range of communication requirements. Whether used for emergency assistance, information services, security contact or help point applications, calls can be routed directly to designated SIP extensions, departments or control rooms for fast and efficient response.

Enhanced Security with Video Monitoring & Alarm Integration

The Fanvil i16SV-02P combines HD video surveillance with integrated alarm and access control functionality. Built-in input and output interfaces allow connection to external alarms, indicators and security systems, helping organisations improve site monitoring, visitor verification and emergency response capabilities.

Local Audio Broadcasting with TF Card Support

The Fanvil i16SV-02P supports local audio playback and broadcasting via a TF card, allowing pre-recorded announcements, information messages and audio prompts to be played directly from the intercom without relying on a network connection.

HD Video Surveillance with Infrared Night Vision

Featuring a 2MP camera with infrared night vision, the Fanvil i16SV-02P provides clear visual monitoring during both daytime and low-light conditions. This enables users to verify visitors before granting access, helping to improve security and visitor management across a wide range of applications.

Built for Demanding Outdoor Environments

The Fanvil i16SV-02P is engineered for reliable operation in challenging indoor and outdoor locations. With IP65 weatherproof protection, IK10 vandal resistance and an operating temperature range of -30°C to +60°C, it delivers dependable performance in harsh environmental conditions.

Multi-Platform Compatibility

The Fanvil i16SV-02P is compatible with major platforms inckuding 3CX, Asterisk, Broadsoft, NEC and more

Features

• Built In HD camera with Infrared Night Vision, Adopt H.264 Codec
• 2 SIP Lines, Programmable DSS Keys
• IP65 Protection Against Water and Dust
• IK10 Anti-Collision with Robust Die Cast Aluminium Frame
• Anti-Tamper Alarming (Cover must be Apart from the Housing( and Reporting to the Control Centre at the Same Time
• HD Voice Speech Quality with Built in 3W Speaker and Acoustic Canceller
• Audio Line Out Port, Expandable External Active Speaker
• Built in 2 Short in Detect Ports and 2 Short Out Control Ports
• Supports Built in TF Card Slot for Data Storage or Audio Offline Broadcasting

Specifications

Device Functions

• Auto Answering
• Programmable DSS Keys
• Through Button or Web Page Volume Adjustment
• Network Time Synchronisation
• Time Plan (Task Management)
• Incoming Call (Multicast)
• Dynamic Multicast Function
• HTTP API
• Action URL /  Active URI

Call Functions

• Call Out / Answer / Reject
• Call Waiting
• Intercom, Multicast
• Speed Dial
• Anonymous Call (Hide Caller ID)

Audio

• Full Duplex Hands-Free Communication
• Built-In 3W Speaker
• Acoustic Echo Cancellation
• G.711A/U, G.722, G.723, G.726, G.729, Opus and iLBC Codecs
• DTMF Support

Video

• Sensor - 1/2 8 Inch Colour CMOS
• 2 Mega Pixels
• Video Coding - H.264
• Resolution - 720P / 1080P
• Minimum Illumination - 0.1Lux, Support for Infrared Illumination
• Viewing Angle - Diagonal - 126°, Horizontal - 98°, Vertical - 65°

Network

• 10 / 100Mbps Ethernet
• SIP 2.0
• IPv4 / IPv6
• DHCP / Static IP / PPPoE
• VLAN & QoS
• OpenVPN & L2TP

Physical

• IP65 Weatherproof Rating
• IK10 Vandal Resistance
• Die-Cast Aluminium Housing
• Wall Mounted Design
• Operating Temperature: -30°C to +60°C

Dimensions

• 195mm x 120mm x 40mm

Package Contents

• Fanvil i16SV-02P SIP Video Intercom
• Mounting Hardware
• Installation Guide
• Network Connection Accessories
