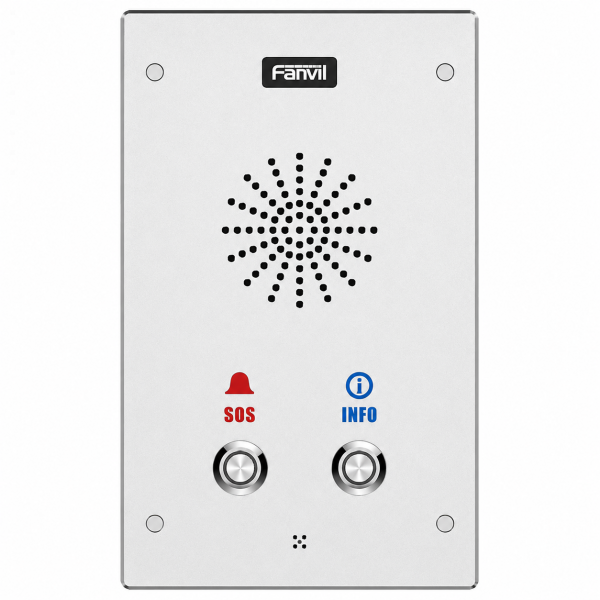

Fanvil i16S-02P SIP Audio Intercom

The Fanvil i16S-02P SIP Intercom is a professional outdoor audio intercom designed for secure communication, emergency assistance and access control applications. Featuring two programmable call buttons, HD voice technology, SIP compatibility and rugged IP65 / IK10 protection, it provides reliable operation in commercial, industrial and public environments.

Designed for Outdoor Security & Access Control

The Fanvil i16S-02P has been developed for organisations that require dependable communication at entrances, gates, public areas and unmanned locations. Combining HD audio, dual SIP account support, Power over Ethernet (PoE), multicast paging and integrated relay control, the intercom can be deployed as part of a complete VoIP communications and access control solution.

Its robust die-cast aluminium construction and vandal-resistant design make it suitable for schools, hospitals, warehouses, transport hubs, industrial facilities, car parks and other demanding outdoor environments where reliability and durability are essential.

Superior Intercom Performance with HD Audio

The Fanvil i16S-02P delivers exceptional voice clarity through support for wideband audio codecs including G.722 and Opus. Combined with full-duplex communication and acoustic echo cancellation, the intercom ensures clear and natural conversations in busy commercial, industrial and public environments.

Flexible Call Button Configuration

The Fanvil i16S-02P features two programmable call buttons that can be configured to suit a wide range of communication requirements. Whether used for emergency assistance, information services, security contact or help point applications, calls can be routed directly to designated SIP extensions, departments or control rooms for fast and efficient response.

Integrated Alarm & Security System Integration

The Fanvil i16S-02P supports integration with external alarm devices, indicators and access control systems through its built-in input and output interfaces. This enables automated responses, emergency notifications and enhanced site security for critical communication applications.

Local Audio Broadcasting with TF Card Support

The Fanvil i16S-02P supports local audio playback and broadcasting via a TF card, allowing pre-recorded announcements, information messages and audio prompts to be played directly from the intercom without relying on a network connection.

Built for Demanding Outdoor Environments

The Fanvil i16S-02P is engineered for reliable operation in challenging indoor and outdoor locations. With IP65 weatherproof protection, IK10 vandal resistance and an operating temperature range of -30°C to +60°C, it delivers dependable performance in harsh environmental conditions.

Multi-Platform Compatibility

The Fanvil i16S-02P is compatible with major platforms inckuding 3CX, Asterisk, Broadsoft, NEC and more

Features

• 2 SIP Lines, Programmable DSS Keys
• IP65 Protection Against Water and Dust
• IK10 Anti-Collision with Robust Die Cast Aluminium Frame
• Anti-Tamper Alarming (Cover must be Apart from the Housing( and Reporting to the Control Centre at the Same Time
• HD Voice Speech Quality with Built in 3W Speaker and Acoustic Canceller
• Audio Line Out Port, Expandable External Active Speaker
• Built in 2 Short in Detect Ports and 2 Short Out Control Ports
• Supports Built in TF Card Slot for Data Storage or Audio Offline Broadcasting

Specifications

Device Functions

• Auto Answering
• Programmable DSS Keys
• Through Button or Web Page Volume Adjustment
• Network Time Synchronisation
• Time Plan (Task Management)
• Incoming Call (Multicast)
• Dynamic Multicast Function
• HTTP API
• Action URL /  Active URI

Call Functions

• Call Out / Answer / Reject
• Call Waiting
• Intercom, Multicast
• Speed Dial
• Anonymous Call (Hide Caller ID)

Audio

• Full Duplex Hands-Free Communication
• Built-In 3W Speaker
• Acoustic Echo Cancellation
• G.711A/U, G.722, G.723, G.726, G.729, Opus and iLBC Codecs
• DTMF Support

Network

• 10 / 100Mbps Ethernet
• SIP 2.0
• IPv4 / IPv6
• DHCP / Static IP / PPPoE
• VLAN & QoS
• OpenVPN & L2TP

Physical

• IP65 Weatherproof Rating
• IK10 Vandal Resistance
• Die-Cast Aluminium Housing
• Wall Mounted Design
• Operating Temperature: -30°C to +60°C

Dimensions

• 195mm x 120mm x 40mm

Package Contents

• Fanvil i16S-02P SIP Audio Intercom
• Mounting Hardware
• Installation Guide
• Network Connection Accessories
