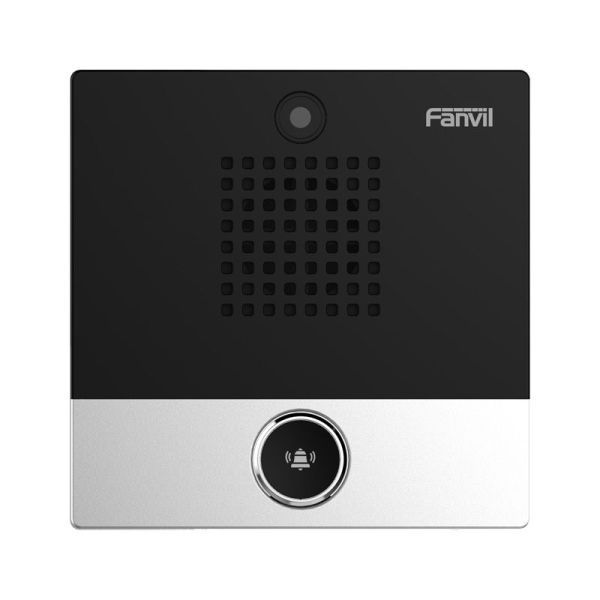

Fanvil i10SV - SIP Mini Intercom

The Fanvil i10SV is an indoor mini SIP Intercom that is used for access control and audio/video intercom functionality. The i10SV is ideal for apartment entrances, office entrances schools, nursing homes and more. The one touch button intercom is easy to use and HD audio provides clear communication when speaking through the intercom. It supports wall mounting, with a waterproof and dustproof design it can be applied in many indoor scenarios and can offer the best communication experience for its users.

The i10SV can be used with many of the major platforms that include Asterisk, Broadsoft, Metaswitch, 3CX, Elastix, Avaya and more. The intercom is a compact size and elegant and can be installed with the type86 surface mount back box, it supports wall mounting by fixing with screws and is suitable for various indoor scenarios.

HD Audio

HD Audio codec protocol G.722 and Opus provide superior intercom experience, built in audio line out interface can play background music when connecting with an active speaker.

High Protection Grade - IP54

The IP54 rating protects the intercom from dust and water, and can be operated in a temperature range from -20°C to 50°C, and can be used in many different indoor scenarios.

Highlights

• Easy Installation and Configuration
• IP54 Waterproof and Dustproof
• -20°C to 50°C Wide Range Temperature Adaptability
• Built in 1W Speaker and Acoustic Echo Cancellation (AEC)
• Built in 1 Short Circuit Input / Output Interface
• Built-in HD Camera with Backlight Compensation Function
• Functionality Including Security, Intercom and Broadcasting
• Adaptive 10/100 Mbps Network Port, Integrated PoE
• Compatible with Many Major Platforms that Include - Asterisk, Broadsoft, Metaswitch, 3CX, Elastix, Avaya

Specifications:

Generic

• 2 SIP Lines, Speed Dial
• Oral Announcement of the IP Address in English
• Switch Signal Input and Output
• Supports Programmable DSS Key Ports
• PoE Enabled

Device Functions

• Auto Answering
• Programmable DSS Keys
• Through Web Page Volume Adjustment
• Network Time Synchronization
• Time Plan (Task Management)
• Dynamic Multicast Function
• Incoming Call Multicast
• HTTP API
• Action URL / Active URI

Call Functions

• Call Out / Answer / Reject
• Call Waiting
• Intercom, Multicast
• Speed Dial
• Anonymous Call (Hide Caller ID)

Audio

• Narrowband Codec - G.711A/U, G.729A/B, iLBC, G.723, G.726-32K
• Wideband Codec - G.722, Opus
• Full Duplex Handsfree Speakerphone with AEC
• DTMF - In-Band, Out-of-Band (RFC2833/ SIP INFO)

Video

• Sensor - 1/5” Color CMOS
• Pixels - 2 MP
• Video Coding - H.264
• Resolution - 720P, 1080P
• Minimum Illumination - 40%
• Viewing Angle - Diagonal - 73°, Horizontal - 63.3°, Vertical - 49.6°

Network

• Physical - 10/100 Mbps Ethernet
• IP Mode - IPv4/IPv6/IPv4&IPv6
• IP Configuration - Static IP / DHCP / PPPoE
• VPN - L2TP / OpenVPN
• VLAN

Deployment and Management

• Auto Provisioning via FTP/TFTP/HTTP/HTTPS/DHCP OPT66/SIP PNP/TR-069
• Web Management Portal
• Web Based Packet Dump
• Configuration Export / Import
• Firmware Upgrade
• Syslog

Physical Specifications

• DSS Keys - 1 DSS Speed Dial Key
• RJ45 Port x1
• Short Circuit Input and Output Port x1 (Built in Relay) - Relay - Max DC30V / 1A, AC125V / 0.5A
• DC Port - DC Power Input - DC12V / 1A
• PoE Level - Class 3
• Protection Level - IP54
• Wall Mount Installation
