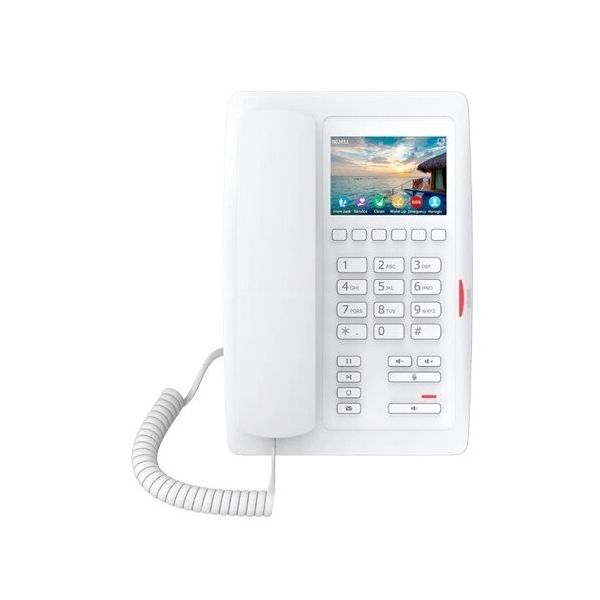

Fanvil H5W - Wi-Fi Hotel IP Phone

Fanvil H5W | Wi-Fi Hotel IP Phone - Available in Black or White

Designed for Hotels | Built in 2.4G Wi-Fi | 3.5 Inch Colour Touch Screen | Supports H.264 Video Decoding | HD Audio | 2 SIP Lines | PoE

The Fanvil H5W is a Wi-Fi IP Phone with HD Audio, delivering a smoother communication experience. Fanvil H5W supports H.264 Video Decoding to help users to view the video image before opening the door. The H5W is more than a Hotel IP Phone, it is also suitable for use in Supermarkets, Hospitals and Shopping Malls. It includes all the necessary VoIP features and supports H.264 Video decoding and built in 2.4G Wi-Fi, providing a high quality and convenient experience for users at an affordable price.

3.5 Inch Colour Screen Displays Hotel Information

Fanvil H5W Hotel IP Phone supports a 3.5 Inch Colour Screen, Hotel managers could DIY the information on the screen from IP Phones management platform.

Check Who is at the Door Before Opening

When connected to SIP Door Phones, Intercoms or Cameras at the door, the Fanvil H5W enables users to view the video image of visitors in advance and achieve the remote door unlock.

Wireless | Limitless

Tired of messy cables? Connecting to the Network with 2.4G built in Wi-Fi, the Fanvil H5W can be installed anywhere in the room without the limitation of cabling.

Capture Every HD Voice

With the wide codec G.722 and Opus, Fanvil H5W can convey every voice during your communications clearly and stably.

Elegant Outlook

Fanvil H5W is the IP Phone designed for hotels. With stylish, fresh appearance, excellent voice quality, and matching integrated communication platform, it can become a new generation of hotel intelligent terminal equipment.

Programmable Keys for Service Hotline

6 programmable Soft Keys for service hotline (Housekeeping, Ticketing, Switchboard, Food and beverage, etc) and the hotel considerate services
(Morning call, Voice message, and etc).

Support SIP Hotspot

Fanvil H5W IP Phones can share one number from the server. When a call comes in, each extension phone will ring together to make sure you won’t miss a call.

Features

• Built in 2.4G Wi-Fi
• Supports H.264 Video Decoding
• 3.5 Inch Colour Touch Screen
• HD Audio with G.722 and Opus
• 2 SIP Lines
• 1 USB Port for Charging
• 6 Programmable Keys for Speed Dial Functions
• Supports PoE

Highlights

• 2 SIP Lines, SIP Hotspot
• 3.5 Inch Colour Display
• Hardware Video Decoding (H.264, 1080P)
• Supports Audio Codec Opus - Can Handle a Variety of Audio Applications Including IP Voice etc
• Built-in 2.4G Wi-Fi for IEEE 802.11b/g/n
• Dual Network Ports, Integrated PoE
• Compatible with Major Platforms: Asterisk, Broadsoft, 3CX, Metaswitch, Elastix, Avaya etc

Generic

• 2 SIP Lines
• HD Voice
• PoE
• Handset | Handsfree Mode
• Optional External Power Supply (PSU) - Not Included

Phone Functions

• Call Logs (In/Out/Missed, Max Support 600 Records in the Web
• Programmable DSS/Soft Keys
• Action URL / Active URI
• Web Dial
• Dial Plan
• SIP Hotspot
• Distinctive Ring
• Multicast

Call Functions

• Call Out / Answer
• Mute / Unmute
• Call Hold / Resume
• Speed Dial
• Redial
• Auto-Answering
• Hot Line
• Customised Ring

Audio

• Wideband ADC/DAC 16KHz Sampling
• Narrowband Codec - G.711A/U, G.729AB, iLBC
• Wideband Codec - G.722, Opus
• Full Duplex Handsfree Speakerphone with AEC
• Voice Activity Detection (VAD) / Comfort Noise Generation (CNG)/ Background Noise Estimation (BNE) / Noise Reduction (NR)
• Packet Loss Concealment (PLC)
• Dynamic Adaptive Jitter Buffer
• DTMF - In-Band, Out-of-Band – DTMF-Relay (RFC2833) / SIP INFO
• VQM Voice Quality Monitoring

Deployment and Management

• Auto-Provisioning via FTP/TFTP/HTTP/HTTPS/DHCP OPT66/SIPPNP/TR-069
• Web Management Portal
• Web-Based Packet Dump
• Configuration Export / Import
• Firmware Upgrade
• Syslog

Video

• Hardware Video Decoding - H.264/H.265(Optional)
• Video Call Resolution - QVGA / CIF / VGA / 4CIF / 720P / 1080P

Network

• 10/100 Mbps Ethernet
• IP Mode:IPv4/IPv6/IPv4&IPv6
• IP Configuration - Static / DHCP / PPPoE
• Network Access Control - 802.1x
• VPN - L2TP / OpenVPN
• VLAN - 802.1P/Q
• QoS
• RTCP-XR (RFC3611), VQ-RTCPXR(RFC6035)

Protocols

• SIP v1 (RFC2543), v2 (RFC3261) over UDP/TCP/TLS
• RTP/RTCP/SRTP
• STUN
• DHCP
• IPv6
• PPPoE
• L2TP
• OpenVPN
• SNTP
• FTP/TFTP
• HTTP/HTTPS
• TR-069

Physical Specifications

• 3.5 Inch (320 x 480) Colour Screen
• Keypad - 26 Keys- Including - 12 Standard Phone Digit Keys, 6 DSS Keys, 4 Function Keys - Hold, Call Transfer, Redial, MWI, 3 Volume Control Keys - Up/Down/Mute (with Red Colour LED), i Handsfree Key
• MSG Indicator (with Red Colour LED) x1
• HD Handset (RJ9) x1
• Standard RJ9 Handset Cord x1
• RJ9 Port x1 - Handset x1
• RJ45 Port x2 - Network x1, PC x1 (Bridged to Network)
• USB Port x1 - Standard A
• Power - 5V/2A or PoE
• Power Consumption (PoE) - 1.5W ~ 5.65W
• Power Consumption (Adapter) - 2.13W ~ 7.46W
• Installation - Desktop
