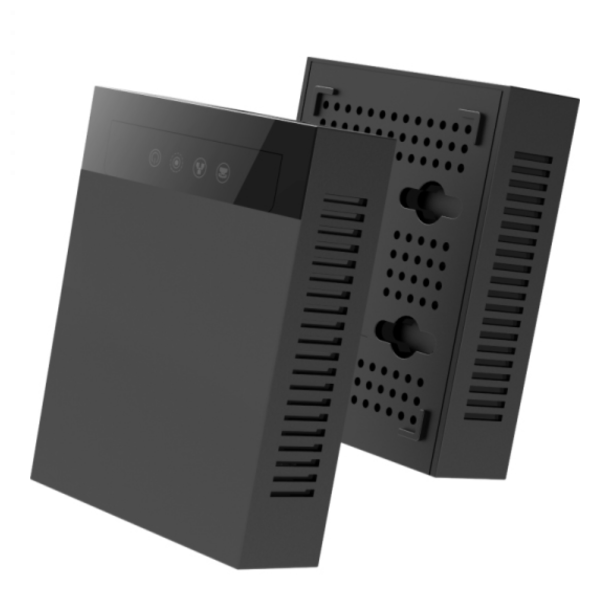

Fanvil GA11 SIP ATA Gateway

About the Fanvil GA11

Migrate your Analogue Phones to IP with the Yealink GA11 ATA. This simple, plug-and-play gateway offers superior HD Voice Quality, 2 SIP Accounts, and full UK BT standard compliance. The GA11 delivers a stable, cost-effective upgrade for individuals, enterprises, and operators deploying VoIP services.

Features

• Single FXS Port ATA Gateway (for BT Interfaces)
• Compatible with all Industry Voice and Data Standards & Telephone Features Including Caller ID, Call Waiting, 3 Way Conference Calling and Voicemail
• Delivers a High Definition VoIP Service Complete with an Extensive Feature Set, all Accessible via a Standard Broadband Internet Connection
• Offers 2 SIP Lines and Supports Opus Codec
• Dektop or Wall Mountable
• Compatible with Devices Including Fire Alarms, Lift Phones, Emergency Alarm Systems, Fax Machines and Analogue Phones

Specifications:

Generic

• 2 SIP Lines
• HD Voice
• Desktop / Wall Mount
• Supports USB Port or Power Adapter for Power Supply

Phone Functions

• Caller ID Display
• Direct IP Dialling
• Anonymous Call (Hide Caller ID)
• Call Hold / Resume
• Call Waiting
• Call Forward (Always / Busy / No Answer)
• Call Transfer (Attended / Unattended)
• Do not Disturb
• Voice Message Waiting Indication (MWI)
• Blocked / Allowed List
• 3 Way Conference
• Hotline

Audio

• Narrowband Codec - G.711a/u, G.726, G.729A/B, iLBC
• Wideband Codec - G.722, Opus
• Acoustic Echo Canceller (AEC) Voice Activity Detection (VAD) / Comfort Noise Generation (CNG) / Noise Reduction (NR) / Automatic Gain Control (AGC)
• Packet Loss Concealment (PLC)
• Dynamic Adaptive Jitter Buffer
• DTMF - in-Band, Out-of-Band (RFC2833/ SIP INFO)
• Support the Signal Tone of Different Countries or Regions

FXS Features

• Response Detection
• Busy Tone Detection
• Incoming Call Detection
• Polarity Detection
• Hang Up Detection
• Disconnect Methods - Busy Tone, Polarity Reversal
• Signalling - Kewl Start, Loop Start

Network

• Physical - 10 / 100Mbps Ethernet
• IP Mode - IPv4 / IPv6 / IPv4 & IPv6
• IP Configuration - Static IP / DHCP / PPPoE
• Firewall, QoS

Protocols

• SIP 2.0 over UDP / TCP / TLS
• RTP / RTCP / SRTP
• STUN, DHCP, CDP, PPPoE, SNTP
• FTP / TFTP
• HTTP / HTTPS
• TR-069

Deployment and Management

• Auto-Provisioning via FTP / TFTP / HTTP / HTTPS / DHCP OPT66 / SIPPNP / TR-069
• Voice Menu for Basic Configuration
• Web Management Portal
• Web Based Packet Dump
• Configuraton Export / Import
• Phonebook Import / Export
• Backup and Recovery
• Firmware Upgrade
• Syslog

Package Contents

• Fanvil GA11
• Ethernet Cable
• Power Supply
• Quick Installation Guide
