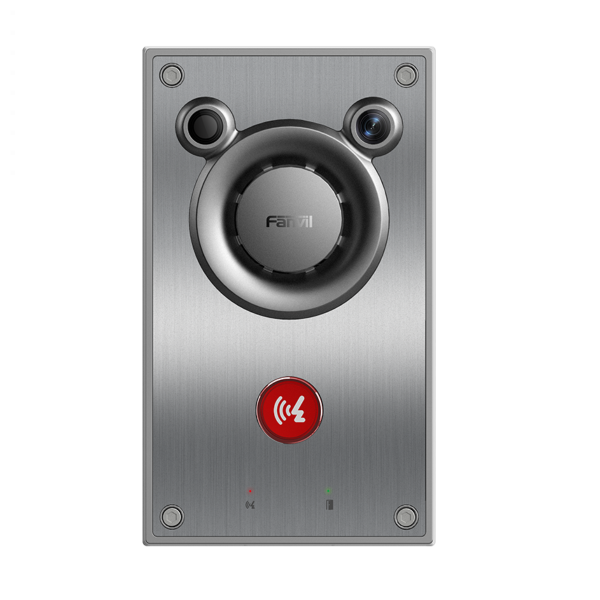

Fanvil A12V Video Intercom

Fanvil's Advanced Video Intercom Featuring a Built-in 10W Speaker and Integrated 4MP Camera for Powerful Audio and Visual Performance

About the Fanvil A12V

Experience powerful two-way communication and advanced video security with the Fanvil A12V Video Intercom. Combining a built-in 10W speaker with a high-definition 4MP starlight camera, the A12V delivers clear audio performance alongside reliable visual verification for entrances, gates, and secure access points.

Equipped with advanced AI capabilities, the Fanvil A12V supports intelligent video recognition with built-in human shape detection. It also enables configuration of multiple video analysis algorithms to suit different deployment scenarios. This enhances situational awareness, improves access control accuracy, and helps deliver a higher level of safety and security across a wide range of applications.

Designed with Fanvil’s advanced turbo sound chamber architecture, dual microphone technology, and intelligent voice enhancement algorithms, the A12V ensures clear communication even in noisy outdoor or industrial environments.

Constructed with a stainless steel panel and durable aluminium alloy housing, the A12V is designed to withstand demanding environments while maintaining a modern professional appearance suitable for commercial and industrial installations.

With IP66-rated protection against water and dust ingress, alongside IK10-rated impact resistance, the Fanvil A12V is built for reliable operation in challenging outdoor environments including commercial buildings, warehouses, industrial facilities, schools, apartment complexes, and public access areas.

Flexible Calling Modes for Multi-Scenario Communication

The Fanvil A12V Video Intercom supports a range of intelligent communication options including group calls, paging, and scheduled time-based calling. These flexible features are designed to meet the demands of complex and dynamic environments, enabling efficient coordination across multiple users, locations, and operational scenarios.

Highlights

• HD Video - Its Built in 4MP Starlight HD Camera and Infrared Light Enables High Definition Video Calls
• Excellent Sound Quality - A Unique Turbine Cavity Design Provides High Quality Audio
• Intelligent Audio - Equipped with AEC, ANR, AGC, AVC Speech Algorithms to Ensure Clear Communication in Complex Environments
• Loud Sound -10W speaker, 90dB Handsfree Call and 100dB Broadcast Provides Immersive Sound
• Remote Pickup - Covers a Range of 5 Metres and Precisely Captures Every Word
• Self Check Function - Voice Loop Self Check, Simplify Maintenance and Reduce Costs
• Recording Broadcast - Built-in SD Card Slot Supports Recording and Preset Broadcast, Flexible and Diverse
• Durable and High Quality - Stainless Steel Panel with Aluminium Alloy Structure, Corrosion Resistance and IK10 Impact Protection Rating
• Protection Grade - IP66 Waterproof and Dustproof Grade, Suitable for the Harshest of Environments
• Intuitive Design - 27mm Backlit Big Button, Dual Status Indicator (Call Control)
• High Compatibility - Compatible with SIP Based Mainstream IP PBX / Softswitch / IMS Platforms Including Asterisk, Broadsoft, 3CX, Metaswitch, Elastix, Avaya and more
• Alarm Light - Built in 1 Wet Node Output - Can Drive the External Alarm Light
• Rich Interfaces - Audio Line Output, Short Circuit Input / Output, Wiegand, USB, RS485 to Meet Diverse Needs

Technical Specifications:

Generic

• 2 SIP Lines, Speed Dial
• Linkage with IP Cameras
• Video Calling, Infrared Lighting
• Integration with IP Cameras to Enable Full Video Intercom Functionality
• Voice Announcement of the IP Address in English
• MP3 Broadcasting
• Supports Programmable DSS Key
• Line Out Audio Output Interface
• Supports USB Ports
• Supports Weigand Port
• Supports RS-485 Port
• Switch Signal Input and Output
• Supports TF Card
• Supports DC12V-24/2A Power Supply and Power over Ethernet(PoE+)

Device Functions

• Auto Answering
• Programmable DSS Keys
• Through Button or Web Page Volume Adjustment
• Network Time Synchronisation
• Time Plan (Task Management)
• Incoming Call Multicast Function
• HTTP API
• Action URL / Active URI

Call Functions

• Call Out / Answer / Reject
• Call Waiting
• Intercom, Multicast
• Anonymous Call (Hide Caller ID)
• Speed Dial

Audio

• Narrowband Codec - G.711A/U, G.729, iLBC, G.723, G.726
• Wideband Codec - G.722, Opus
• Full Duplex Handsfree Speakerphone with AEC
• DTMF - In-Band, Out-of-Band (RFC2833/ SIP INFO)

Video

• Sensor - 1/2 9 Inch Colour CMOS
• 4 Mega Pixels
• Video Coding - H.264
• Resolution - 720p / 1080p
• Minimum Illumination -  0.05Lux, Support for Infrared Illumination
• Viewing Angle - Diagonal - 122°, Horizontal - 103°, Vertical - 54.8°

Network

• Physical - 10/100 Mbps Ethernet
• IP Mode - IPv4/IPv6/IPv4&IPv6
• IP Configuration - Static IP / DHCP / PPPoE
• VPN: L2TP / OpenVPN
• VLAN

Protocols

• SIP v1 (RFC2543), v2 (RFC3261) over UDP/TCP/TLS
• RTP/RTCP/SRTP
• STUN, DHCP
• IPv6, PPPoE
• L2TP, OpenVPN
• SNTP
• FTP/TFTP
• HTTP/HTTPS
• TR-069

Physical Specifications

• Supports 1 x DSS Key
• 4 Mega Pixel Starlight HD Camera (Viewing fron the Front, Left Side is a Infrared Light for Supplementary Lighting Whilst the Right Side is the Camera
• RJ45 Port x 1 to Connect Internet or LAN - PoE+ Enabled (IEEE 802.3at, Class 4)
• Line Out Port x 1 to Connect the Active Speaker or Amplifier
• Short Circuit Input Port x 2
• Short Circuit Output Port x 2 (Built in Relay)
• Tamper Alarm Switch x 1
• Micro SD Card Slot to Connect SD Card x 1
• USB Port x 1
• Wiegand Port x 1
• RS-485 Port x 1
• IP66 and IK10 Protection (Except Lens)
• Wall Mount and Flush Mount
• Stainless Steel Panel, Aluminium Alloy Shell
• Installation - Wall Mout & Flush Mount
• Device Dimensions - 205mm x 120mm x 54.mm - With Wall Mount Bracket

Package Contents

• Fanvil A12V Video Intercom
• Mounting Template
• Wall Mounted Bracket
• Quick Installation Guide
