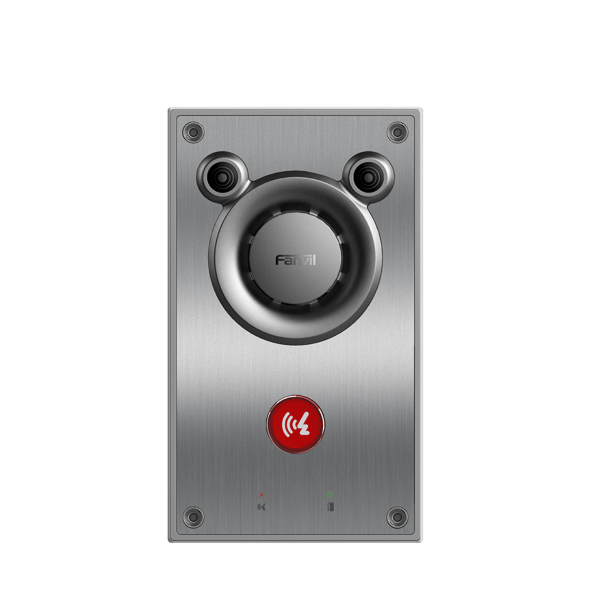

Fanvil A12 Audio Intercom

Fanvil's Brand New Audio Intercom Featuring a Built in 10W Speaker Delivering Impressive Audio Performance

About the Fanvil A12

Experience exceptional audio clarity with the Fanvil A12 Audio Intercom. Equipped with a built in 10W Speaker and a unique turbo sound chamber design, the A12 delivers impressive audio performance that can be heard loud and clear.

Fanvil's dual microphone technology and voice enhancement algorithms ensure crystal clear audio, even in noisy environments.

The stainless steel panel and integrated aluminum alloy structure make the A12 visually appealing and resistant to corrosion, making the it the perfect Intercom for outdoor use.

Its IP66 Rating means that the Fanvil A12 is protected from water and dust, and its IK10 Rating provides protection from impact, and can withstand a direct impact of up to 20 joules, making it ideal for a wide range of applications, including Commercial Buildings, Industrial Facilities, and Public Spaces.

Highlights

• Excellent Sound Quality - A Unique Turbine Cavity Design Provides High Quality Audio
• Intelligent Audio - Equipped with AEC, ANR, AGC, AVC Speech Algorithms to Ensure Clear Communication in Complex Environments
• Loud Sound -10W speaker, 90dB Handsfree Call and 100dB Broadcast, Sound Shock
• Remote Pickup - Covers a Range of 5 Metres and Captures Every Word
• Self Check Function - Voice Loop Self Check, Simplify Maintenance and Reduce Costs
• Recording Broadcast - Built-in SD Card Slot Supports Recording and Preset Broadcast, Flexible and Diverse
• Durable and High Quality - Stainless Steel Panel with Aluminium Alloy Structure, Corrosion Resistance and IK10 Impact Protection Rating
• Protection Grade - IP66 Waterproof and Dustproof Grade, Suitable for the Harshest of Environments
• Intuitive Design - 27mm Backlit Big Button, Dual Status Indicator (Call Control)
• High Compatibility - Compatible with SIP Based Mainstream IP PBX / Softswitch / IMS Platforms Including Asterisk, Broadsoft, 3CX, Metaswitch, Elastix, Avaya and more
• Alarm Light - Built in 1 Wet Node Output - Can Drive the External Alarm Light
• Rich Interfaces - Audio Line Output, Short Circuit Input / Output, Wiegand, USB, RS485 to Meet Diverse Needs

Technical Specifications:

Generic

• 2 SIP Lines, Speed Dial
• Linkage with IP Cameras
• Voice Announcement of the IP Address in English
• MP3, WAV Broadcasting
• Voice Monitoring, Voice Loop Self Check
• Supports Programmable DSS Key
• Lineout Audio Output Interface
• Supports USB Ports
• Supports Weigand Port
• Supports RS485 Port
• Switch Signal Input and Output
• Supports TF Card
• Supports DC12V-24/2A Power Supply and Power over Ethernet(PoE+)

Device Functions

• Auto Answering
• Programmable DSS Keys
• Through Button or Web Page Volume Adjustment
• Network Time Synchronisation
• Time Plan (Task Management)
• Incoming Call Multicast Function
• HTTP API
• Action URL / Active URI

Call Functions

• Call Out / Answer / Reject
• Call Waiting
• Intercom, Multicast
• Anonymous Call (Hide Caller ID)
• Speed Dial

Audio

• Narrowband Codec - G.711A/U, G.729A/B, iLBC, G.723, G.726-32K
• Wideband Codec - G.722, Opus
• Full Duplex Handsfree Speakerphone with AEC
• DTMF - In-Band, Out-of-Band (RFC2833/ SIP INFO)

Network

• Physical - 10/100 Mbps Ethernet
• IP Mode - IPv4/IPv6/IPv4&IPv6
• IP Configuration - Static IP / DHCP / PPPoE
• VPN: L2TP / OpenVPN
• VLAN

Protocols

• SIP v1 (RFC2543), v2 (RFC3261) over UDP/TCP/TLS
• RTP/RTCP/SRTP
• STUN, DHCP
• IPv6, PPPoE
• L2TP, OpenVPN
• SNTP
• FTP/TFTP
• HTTP/HTTPS
• TR-069

Physical Specifications

• 1 x DSS Key x 1 (Supports LED)
• 1 x Tamper Alarm Switch
• 1 x Micro SD Card Slot to Connect SD Card
• 1 x USB Port
• 1 x Wiegand Port
• 1 x 485 Port
• IP66 and IK10 Protection
• Wall Mount and Flush Mount
• Stainless Steel Panel, Aluminium Alloy Shell
• Device Dimensions - 205mm x 120mm x 47mm

Package Contents

• Fanvil A12 Audio Intercom
• Mounting Template
• Wall Mounted Bracket
• Quick Installation Guide
