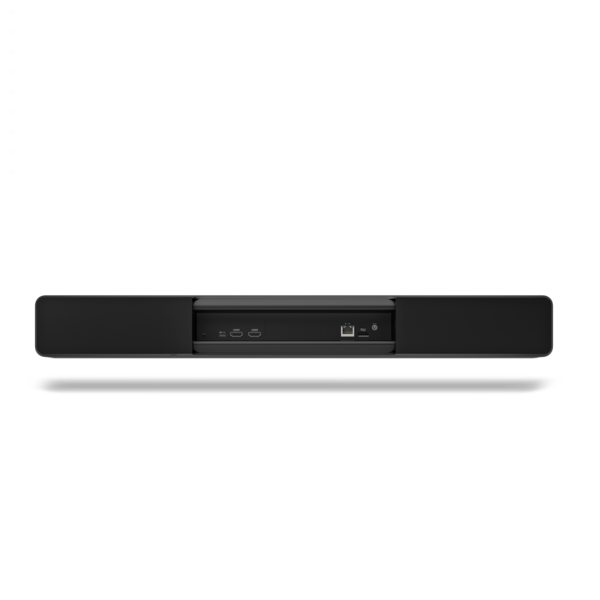

EPOS EXPAND Vision 5 Video Conferencing Bar

A Powerful all in one Video Bar with Razor Sharp Video and Outstanding Audio Performance Thanks to Two Integrated Speakers and Four Microphones, Designed for Small to Medium Sized Meeting Rooms.

About the EPOS EXPAND Vision 5

With the EPOS EXPAND Vision 5, you can take meetings to the next level. Its Certified for Microsoft Teams Rooms on Android™ (with EXPAND Control) and Zoom Rooms. Ideal for small to medium sized meeting rooms. It is a powerful all in one Video Bar that provides outstanding audio and video performance , thanks to its four Microphones and 2 Integrated Speakers.

The EXPAND Vision 5 is built on EPOS BrainAdapt™ Technology. Designed with unique algorithms and acoustics that help the brain to focus whilst in hybrid meetings , the EXPAND Vision 5 helps to boost productivity on both sides of the video call.

Pioneering technology means having engineering capabilities to stay at the forefront of what is technically possible. From hardware components to software and artificial intelligence that elevate the experience.

A wide angled 4K Camera with Sony Sensor and electromechanical pan / tilt for optimal room coverage. Intelligent picture framing dynamically adjusts to include everyone in the room - powered by EPOS AI™.

A beamforming microphone array ensures crisp voice pickup and effective noise and echo cancellation. Powerful stereo speakers carry every word clearly.

Direct USB Connection to PC or Mac® enables participants to bring their own device (BYOD) and run any solution from their laptop.

Integrated cable management for a tidy meeting room and a consistent setup. Supports Kensington Lock to esure the EXPAND 5 remains where it should.

Display video content on two screens, see the presentation on one screen and the participants on the other screen.

Control the meeting with the EPOS EXPAND Control or via a smart display touch screen.

Certified for meeting room solutions including Microsoft Teams Rooms on Android™ (with EPOS EXPAND Control) and Zoom Rooms.

The EXPAND Vision 5 will automatically go into power saving mode if the motion sensor detects no activity in the meeting room.

• Camera - 4k Wide Angle with Sony® Sensor
• Lens Type - 6 Element Aspherical Low Distortion Lens
• Video Resolution - Up to 1080p (Full HD) @ 60fps
• Zoom - 4x Digital Zoom
• Pan / Tilt / Zoom (PTZ) - Enhanced PTZ, Electromechanical Pan / Tilt ± 20°
• Field of View (FOV)
• Depth of Field - Fixed with a Focus Range from 1-6m / 3.3 – 19.8 ft
• Intelligent Picture Framing - EPOS AI™Powered

Audio

• Microphone - 4 Digital MEMS Enhanced Beamforming Microphones - Noise and Echo Cancelling
• Microphone Coverage - 180° Horizontal Pick-Up Pattern
• Effective Microphone Range - 6m / 19ft
• Microphone Frequency Response - 150 - 7.500 Hz
• Speaker - 2 Speaker Drivers in Suspended Anti-Vibration Cabinets
• Speaker Frequency Response - 100 - 20.000 Hz

Network & Connectivity

• Input / Output - Ethernet, HDMI In / Out, USB-C, Micro SD
• Ethernet - IPv4, IPv6, DHCP / Static IP
• Wi--Fi - Dual Band - 2.4GHz & 5GHz), Standard - 802.11 ac / 802.11 ac
• Bluetooth® - Version 5.0, Bluetooth® Profiles - A2DP, HSP, AVRCP, Microsoft Teams Proximity Join
• Wireless Sharing Technology - Miracast®
• USB Mode Support, Dual Screen Support, Touch Screen Support

Privacy / Security

• Hardwired Privacy Switches - Camera / Microphone
• Kensington Security Lock Support
• Encryption - Crypto Engine v5, DRBG/PRNG (FIPS-Compliant), Inline Cypto Engine

Package Contents

• EPOS EXPAND Vision 5 Video Bar
• Universal Power Supply
• HDMI Cable

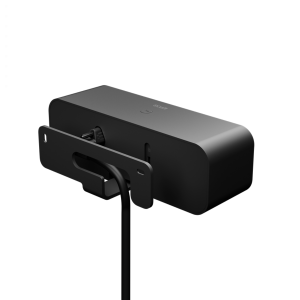

• Wall Mount Bracker
• Safety Guide, Quick Guide, Compliance Sheet
