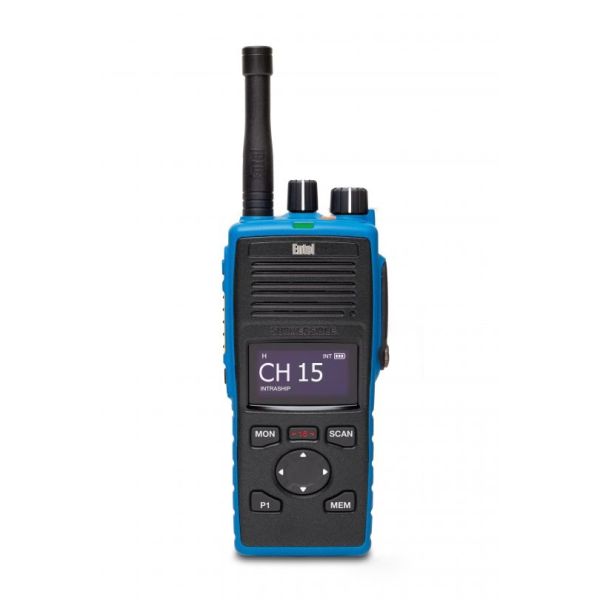

Entel DT844 ATEX Marine VHF Two Way Radio

The ultra durable Entel DT844 is a Marine Radio that sets the benchmark for next generation on board Radios. Standard features include high visibility OLED display, channel voice annunciation option, high torque ergonomic controls designed for gloved hand use, and an industry leading IP68 Ingress Protection rating meaning the Radio can withstand being submersed in water up to 2 metres for up to 4 hours - providing 100% reliability and usability even in the most extreme conditions.

The DT844 is an important safety tool for all mariners who venture out on the water, whether offshore or on inland waterways. VHF (Very High Frequency) Marine Radios allow instant communication, and are used for a variety of purposes including - contacting harbours & marinas, summoning rescue services or ship to shore and ship to ship communication.

Features:

Channels

The Entel DT844 is pre-programmed with all International, USA and Canadian channels, you can also program an additional 16 private channels.

Voice Annunciation

This programmable feature announces either the channel position selected or a marine channel number (alias) – this gives further assurance to the user that they’ve selected the correct channel allowing them to focus on the task in hand.

Environmental Protection to IP68 (2 Metres for 4 Hours)

The DT844 offers the highest submersibility rating of any manufacturer. This protects against corrosion, withstanding total immersion in water to a depth of 2 meters for 4 hours to protect against the likely hazards encountered in extremely wet environments.

Robust Accessory Socket

The DT844 accessory socket has been specifically designed so that when an accessory is secured to the portable, the connection can withstand any amount of punishment; from dropping to careless misuse. The rugged, multi-pin interface and Micro-USB socket are both submersible and gold-plated to minimize any risk of damage and protect against corrosion. To ensure the integrity of IS protection levels any accessory connected to the handset automatically undergoes a validation process to safeguard against non-compliant accessories being used. All DT844 accessories incorporate a robust locking connector to further safeguard the safety of the user.

High Contrast White on Black OLED Display

The DT844 model benefits from a high contrast white on black OLED display that delivers superior readability in varying light conditions adding to the DT844’s intuitive user interface.

Li-Ion Battery Technology & Improved Talk Time

The DT844 Radio is supplied with the latest intelligent Lithium-Ion battery technology as standard. One key advantage of Lithium-Ion battery technology is the way it eliminates ‘memory effect’, meaning that there is no need to fully discharge your battery before recharging. As a result of this, you are assured of a full charge each and every time you take your Entel battery from its charger.

Superior Audio

The DT844 Portables portables deliver loud & crisp audio no matter what environment you are in. All of the DT844's range of accessories incorporate a robust locking plug and high-grade cable and benefit from Entel’s proprietary “Smart Speech Tailoring” technology. This automatically detects the type of accessory connected and optimises the audio accordingly to deliver the very best performance.

Simple on Board Reprogramming App

With Entel's free, unique and simple to use PC app, you can easily re-program a DT844 radio whilst still onboard. The user friendly app makes it easy to drag and drop a new programming file from an email to your DT844 radio(s).

This is a simple and seamless process that can be carried out by non-technical personnel.

Keylock

The DT844 Radio's Keys and Controls can be locked to avoid any accidental operation.

Programmable Channel Monitor Button

If you have channel protection enabled on your DT844 portable, all signals other than your own networks will be filtered out. This can be temporarily disabled allowing you to monitor all signals on your channel.

Scan

A Programmable Button allows Channel scanning.

Safety

ATEX IIB Approved - The DT844 ATEX certified portables meet IIB T4 - the most stringent ATEX ratings as per EU directive 94/9/EC.

Technical Specifications

• Frequency Range - VHF - 156 to 163.275MHz
• Channel Spacing Analogue - 12.5 & 25 KHZ
• Operating Voltage - 7.4v
• Weight - 435g
• Overall Dimensions - 138mm x 60mm x 38mm (H x W x D)
• 3 Programmable Buttons
• Channels - INT/USA/CAN Mode Plus Private
• Battery - CNB950EV2 1800mAh Lithium-Ion
• Battery Endurance - 12 Hours
• Output Power VHF - ATEX IIB 3.9 Watts
• Modulation Limiting - ±2.5kHz @ 12.5kHz, ±5.0kHz @ 25kHz
• Conducted / Radiated Spurious Emissions - Better than -36dBm
• Adjacent Channel Power - Better than 60dB
• Typical Audio Distortion - 3%
• Typical Sensitivity - Analogue -121dBm (0.2uV) for 12dB SINAD
• Intermodulation Response Rejection (ETSI) - < 70dB
• Adjacent Channel Selectivity - > 70dB (12.5KHZ) 60dB (25KHz)
• Spurious Response Rejection (ETSI) > 70dB
• Audio Output Power - 1 Watt
• Typical Audio Distortion - 3%
• Conducted Spurious Emiaaion (ETSI) - >-57dBm
• Thermal Shock, Humidity, Shock & Vibration, Packing Test, Drop Test - MIL-STD810 C/D/E/F/G
• Water Ingress - IP68 - 2 Metres, 4 Hours Submersible
• Ex Protection - ATEX II 2G Ex ib IIB T4 Gb

Package Contents

• Entel DT844 Marine Radio
• Li-Ion Battery Pack
• Drop in Charger
• Bet Clip
• High Efficiency Antenna
• Quick Start User Guide
