EnGenius Outdoor Antenna & Cable Kit

About the Outdoor Antenna & Cable Kit

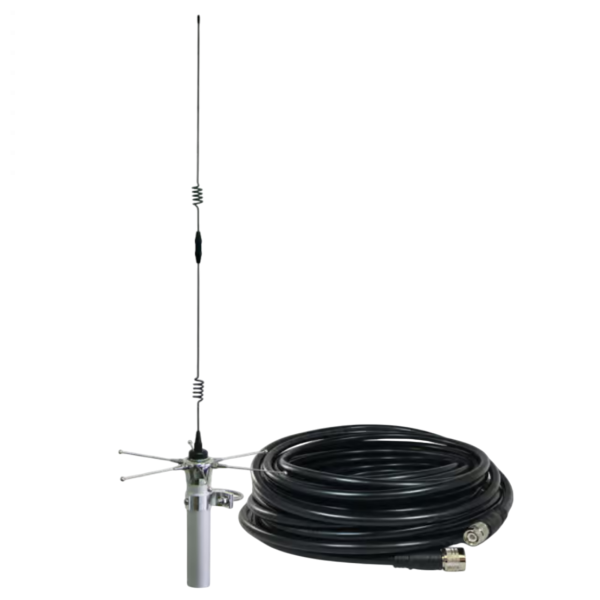

The EnGenius-SN-UL-AK20L is a 900MHz External Antenna Kit that connects directly to your DuraFon or FreeStyl Base Station, delivering optimal signal patterns for superior outdoor coverage. Its high quality, low loss LMR-400 Cable ensures minimal signal degradation for both transmitting and receiving. For added protection, it is recommend to use the SN-ULTRA-LPK Lightning Protection Module with the Antenna and Cable Kit.

Benefits of the Outdoor Antenna

The main purpose of the Outdoor Antenna is to provide extended outdoor coverage for your EnGenius Cordless Phone System, which is crucial for large properties like farms, ranches, outdoor work sites, or campuses where communication is needed across significant distances.

In summary, the EnGenius SN-UL-AK20L is a specialised Antenna Kit for boosting the outdoor range and performance of your EnGenius 900MHz Cordless Phone System.

Outdoor Use

Unlike the SN-UL-AK20L-IND (which is the Indoor Ceiling Mount), the SN-UL-AK20L is specifically marketed for outdoor applications. This means it's built to withstand various weather conditions.

High Gain

Often referred to as a "High Gain Outdoor Antenna." the EnGenius SN-UL-AK20L typically offers a peak gain of around 6.0 dBi (at 900-930 MHz), which is higher than the indoor version, allowing for greater range extension outdoors.

Compatibility

The Outdoor Antenna connects to the Base Stations of compatible EnGenius DuraFon models including DuraFon 1X, DuraFon 4X, DuraFon PRO, DuraFon SIP)and FreeStyl (1 and 2) Phone Systems.

Cable Included

The Outdoor Antenna comes with a 20m (66ft) LMR-400 low-loss Coaxial Cable to connect the Antenna to the Base Station.

Connector

It connects to the Base Stations of compatible EnGenius DuraFon or FreeStyl Phone Systems via a Reversed N-Jack Connector.

Features

• 900MHz Outdoor Antenna Kit
• Extended Range - Significantly Improves the Outdoor Range and Coverage of the EnGenius DuraFon and FreeStyl Base Stations
• Includes 20m (66ft) Low Loss LMR-400 Coaxial Cable
• Monople for Outdoor Operation
• Built to Withstand Various Weather Conditions

Technical Specifications:

Electrical

• Frequency - 902 ~ 928MHz
• Peak Gain -  6.0 dBi @ 900~930 MHz
• VSWR -  < 2.0
• Polarisation - Linear, Vertical
• Impedance - 50 Ohm
• Connector - Reversed N Jack

Physical

• Body - White Chrome Plated
• Contact - Gold Plated
• Material - Body - Brass, Contact - Beryllium Copper, Insulator - Teflon or Delrin
• Weight - 373.5g

Package Contents

• Outdoor Antenna
• 20m Cable
