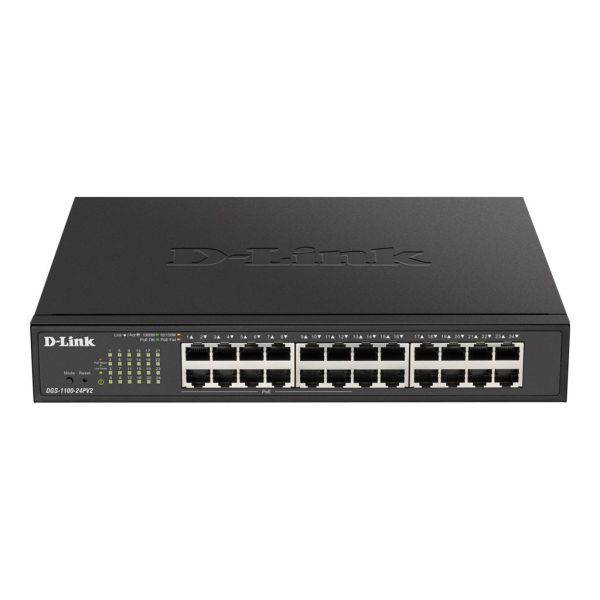

D-Link DGS-1100-24PV2 - 24 Port Gigabit Smart Managed Switch - PoE

The DGS-1100 Smart Switch Series Provide an Affordable Solution for Environments that Require Simple Network Management

The DGS-1100-24PV2 is a highly affordable Smart Managed Switches designed to meet the requirements of small, medium and enterprise businesses. Advanced management features, bandwidth management, PoE option, diagnostic and troubleshooting tools and energy efficient technologies provide a flexible solution to meet any businesses networking requirements.

The DGS-100 (V2) Series is equipped with advanced security features such as Static MAC, Storm Control and IGMP Snooping to help businesses protect their network. The Switches are also ideal for IP surveillance deployment with the Surveillance VLAN support that gives high priority surveillance traffic to mitigate disruption and guarantee the quality of video recording.

The free to download D-Link Network Assistant makes initial set-up quick and easy by discovering all D-Link Smart Managed Switches within the same Layer 2 network. It allows users to resolve IP conflicts, batch configure and update multiple switches. The web based configuration enables network administrators to manage the switch down to the port level.

• High speed ports provide the latest Ethernet Technology whilst retaining backward compatibility for connections to older computers and equipment.

• Innovative D-Link Green features help conserve energy without sacrificing performance so you can reduce operating costs and protect the environment.

• Powerful switch management functions can be performed through the web management interface or through the client-based utility.

The DGS-1100 Series web user interface is an easy way to manage Layer 2 features, such as VLAN's, Spanning Tree Protocol (STP), Link Aggregration (Static). With powerful security features like IGMP Snooping, Static MAC and Storm Control, the DGS-1100 Smart famil is a versatile solution for environments that require easy to deploy and easy to configure solutions without added complexities.

D-Link’s free Network Assistant (DNA) displays all connected devices and speeds up the first time configuration. The free D-View 7 Network Management System comes with a license for 25 nodes and 2 probes and full access to the management tools. Optional upgrade licenses allow you to broaden your network and analysis.

The DGS-1100 Smart Series includes a range of high power budget PoE enabled switches for businesses looking to power larger deployments of VoIP phones, wireless access points or network cameras.

The DGS-1100 Series features Loopback Detection and Cable Diagnostics to help network administrators find and solve network problems quickly and easily.

Loopback Detection is used to detect loops created by a specific port and automatically shut down the affected port. The Cable Diagnostics feature is designed for network administrators to quickly examine the quality of the copper cables, recognise the cable type, and detect cable errors.

D-Link Green technology enables the DGS-1100 Smart series to save power without sacrifices. The majority of the family utilises a fanless design, for silent and energy efficient operation. All are IEEE 802.3az compliant and feature Link Status detection and Time Based PoE.

• Available in Multiple Configurations, with or without PoE and Fibre Support
• Fanless Design for Silent Operation

• Link Status Detection
• IEEE 802.3az Energy-Efficient Ethernet Compliant
• Time Based PoE (PoE Models)

• IGMP Snooping
• IEEE 802.1Q VLAN Traffic Segregation
• Port Based VLAN
• IEEE 802.1p Quality of Service
• Surveillance VLAN
• Voice VLAN

• Client Based Utility or Web Based GUI
• Built-in SNMP MIB

• Size - 11 Inch Desktop (Rackmount Kit Included), 1U Height
• Number of Ports - 24 - 12 x 10/100/1000 Mbps (PoE), 12 x 10/100/1000 Mbps
• Port Functions - IEEE 802.3 for Ethernet, IEEE 802.3u for Fast Ethernet, IEEE 802.3ab for Gigabit Ethernet, IEEE 802.3z for Gigabit Fiber, EEE 802.3af/at (DGS-1100-24PV2 Ports 1 to 12 Only), IEEE 802.3az Compliant, Auto Negotiation, Auto MDI/MDIX, IEEE 802.3x Flow Control Supports Full Duplex Mode, Supports Half/Full Duplex Operation - (Full/Half at 10/100 Mbps, Full at 1000 Mbps)

• Switching Capacity - 48Gbps
• Maximum Forwarding Rate - 35.71 Mpps
• MAC Address Table Size - 8K Entries
• Packet Buffer - 4.1 Mbits
• Flash Memory - 16 Mbytes

• PoE Standard - IEEE 802.3af/802.3at
• PoE Capable Ports - Ports 1 to 12
• PoE Power Budget - 100 W (30 W Max. Per PoE Port)

• Standby Mode - 8.8 W
• Maximum Power Consumption - 131.5 W (PoE On), 19.5 W (PoE Off)

• Power Input - 100 to 240 V AC, 50 to 60 Hz Internal Power Supply
• MTBF - 255,003 Hours
• Acoustics - 0 dB(A)
• Heat Dissipation - 107.5 BTU/hr
• Weight - 2.00kg
• Dimensions - 280 x 230 x 44 mm
• Ventilation - Fanless
• EMI - FCC Class A, CE Class A, VCCI Class A, C-Tick, BSMI, CCC
• Safety - cUL, CE LVD, CB, BSMI, CCC
