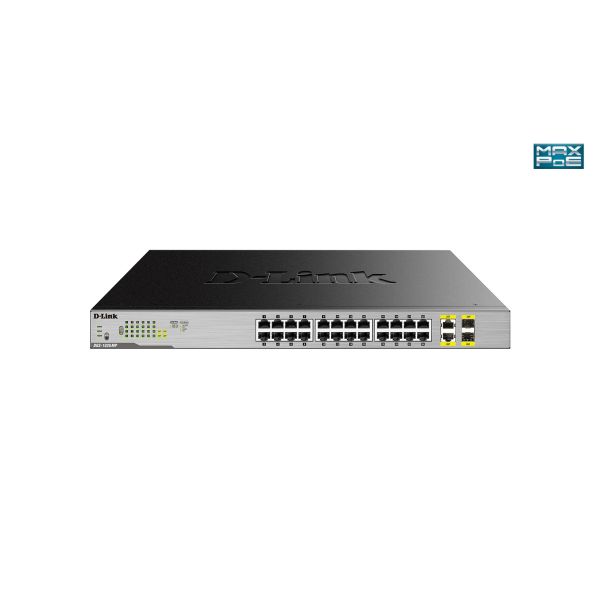

D-Link DGS-1026MP 24-Port Gigabit Max PoE Switch With 2 Gigabit Combo Uplink Ports

26 Ports - 24 x 10/100/1000 Mbps Ports | 2 x 10/100/1000BASE-T/SFP Combo Ports

The D-Link DGS-1026MP 26-Port Gigabit Max PoE Switch enables users to easily connect and power PoE capable devices such as wireless access points (APs), IP cameras, and IP phones. The DGS-1026MP can also be used to connect other Ethernet devices such as computers, printers, and a Network Attached Storage (NAS) to fit any type of network application.

Power over Ethernet

The DGS-1026MP features 24 10/100/1000BASE-T ports that support the IEEE 802.3at+ PoE standard. Each of the 24 PoE ports can supply up to 30 W, with a total PoE budget of 370 W, allowing users to attach multiple IEEE 802.3at-compliant devices to the DGS-1026MP without requiring additional power sources. Power over Ethernet is especially suitable for powering devices that are too far away from power outlets or for minimising the clutter of extra cables. The PoE usage LEDs further provide real-time feedback on the current PoE power usage on the network and helps plan out the PoE network budget, preventing PoE overloading problems.

Expand Your Network

With 2 x Gigabit combo uplink ports, businesses have additional flexibility their network deployment, offering a choice for upstream or downstream server connections via a fibre or copper interface.

Energy Efficient

To help small businesses save on operating costs, the DGS-1026MP supports IEEE 802.3az Energy Efficient Ethernet (EEE). This feature actively monitors network traffic and automatically puts ports that are not being used into hibernation, powering them on only when they are required.

Hassle Free Setup

The DGS-1026MP is a plug-and-play device that requires no configuration, so setup is simple and hassle-free. Simply connect the switch to the network and then connect multiple computers, share files and make VoIP calls across the network. Support for Auto MDI/MDI-X on all ports eliminates the need for crossover cables when connecting to another switch or hub. Auto-negotiation on each port senses the link speed of a network device and intelligently adjusts for compatibility and optimal performance. Combining the convenience of PoE, fast performance, reliability and ease of use, the DGS-1026MP 26-Port Gigabit Max PoE Switch is the ideal choice for flexibly expanding an existing network with both PoE and non PoE devices.

Features

• High PoE Power Budget - 370W PoE Power Budget, Compliant with IEEE 802.3af/at, PoE Usage Indicator LED's
• Green Features - IEEE 802.3az Energy Efficient Ethernet, RoHS Compliant
• Easy Setup - Plug and Play Installation, Auto MDI/MDI-X Crossover on all Ports
• Reliability - IEEE 802.3x Flow Control, Store and Forward Switching
• Versatile Connectivity - 26 Ports - 24 x 10/100/1000 Mbps Ports | 2 x 10/100/1000BASE-T/SFP Combo Ports

Technical Specifications

• Number of Ports - 24 x 10/100/1000 Mbps Ports, 2 x 10/100/1000BASE-T/SFP Combo Ports
• Standards - 24 x 10/100/1000 Mbps Ports - IEEE 802.3 10BASE-T Ethernet, IEEE 802.3u 100BASE-TX Fast Ethernet, IEEE 802.3ab 1000BASE-T Gigabit Ethernet, Combo Ports - IEEE 802.3z, IEEE 802.3x Flow Control, IEEE 802.3az Energy Efficient Ethernet (EEE)
• Switching Capacity - 52 Gbps Switching Fabric
• 64 Byte Max. Forwarding Rate - 38.69 Mpps
• Media Interface Exchange - Auto MDI/MDI-X
• Transmission Method - Store-and-Forward
• MAC Address Table - 8K (8192) Entries per Device
• Packet Buffer Memory - 512 KB per Device
• PoE Standards - 24 x 10/100/1000 Mbps Ports - IEEE 802.3at, Combo Ports - IEEE 802.3a
• PoE Ports 1 to 24
• PoE Budget - 24 x10/100/1000 Mbps Ports - 370W, Combo Ports - Up to 30W Per Port

Diagnostic LED's

• Per Unit - 24 x 10/100/1000 Mbps Ports - Power, Combo Ports - PoE Power Budget
• Per Port - 24 x 10/100/1000 Mbps Ports - Activity/Link, Combo Ports - Speed
• Per PoE Port - 24 x10/100/1000 Mbps Ports - Power Fail, Combo Ports - Power OK

Physical

• Fan - 2 x Smart Fans
• Dimensions - 440mm x 250.4mm x 44 mm (17.32 x 9.86 x 1.73 Inches)
• Weight - 3.1kg (6.83lbs)
• Power Input - AC Input:- 100 to 240 V AC, 50/60 Hz
