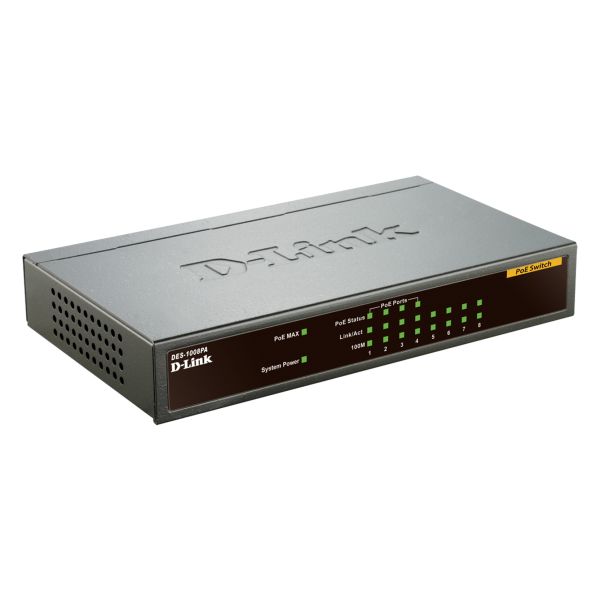

D-Link DES-1008PA 8-Port Fast Ethernet PoE Unmanaged Desktop Switch

£43.99 (Excl. VAT) £52.79 (Incl. VAT)

    PMC Product Code: 13486

    Manufacturer's Product Code: DES-1008PA

    • Eight 10/100 Mbps Fast Ethernet ports
    • 4 PoE ports
    • Plug-and-play installation

    Stock status: In Stock

    Condition: Brand New


    Need help with your Order?

    Call: 0161 737 9898

    Product Specifications of the D-Link DES-1008PA 8-Port Fast Ethernet PoE Unmanaged Desktop Switch

    The DES-1008PA 8-Port Fast Ethernet PoE Desktop Switch enables both home and office users to easily connect and supply power to Power over Ethernet (PoE) devices such as wireless Access Points (APs), IP cameras, and IP phones while adding more Ethernet devices like computers, printers, and Network Attached Storage (NAS) onto a network. Built with home and small business users in mind, this compact PoE switch operates silently, making it ideal for use in virtually any room or office.

    Power over Ethernet IEEE 802.3af

    The DES-1008PA features 4 10/100BASE-TX ports that support the IEEE 802.3af PoE protocol. Each of the 4 PoE ports can supply up to 15.4 Watts, a total PoE budget of 52 Watts, allowing users to attach an IEEE 802.3af compliant device to the DES-1008PA without requiring additional power. PoE is especially suitable for devices that are far from power outlets or when you want to minimise the clutter of extra cables.

    Superior Performance

    No configuration is required and installation is quick and easy. Support for Auto-MDI/MDI-X on all ports eliminates the need for crossover cables when connecting to another switch or hub. Auto-Negotiation on each port senses the link speed of a network device (either 10 or 100 Mbps) and intelligently adjusts for compatibility and optimal performance. The switch has been designed without fans so you can be sure of silent operation wherever it is installed. The DES-1008PA also features diagnostic LEDs, which display status and activity, allowing you to quickly detect and correct problems on the network. With wire-speed filtering and store-and-forward switching, the DES-1008PA also maximises network performance while minimising the transmission of bad network packets. Combining the convenience of PoE, superior performance, and ease of use, the 8-Port Fast Ethernet PoE Desktop Switch is the ideal choice for adding PoE devices to either a home or small business network.

    Hassle-Free Setup

    The 8-Port Fast Ethernet PoE Desktop Switch is a Plug-and-Play device that requires no configuration, so setup is simple and hassle-free. Connect multiple computers, share files, music, and video across your home or small office network, or even create a multi-player gaming environment.

    Compact and Silent

    The DES-1008PA has a compact and silent design, meaning it can be placed in any location. The power connector and ports are all located at the rear of the switch allowing the cables to be tucked away conveniently. The DES-1008PA is fanless, so the switch operates silently, allowing you to work or play without unnecessary noise distractions.

    High-Speed Networking

    • Eight 10/100 Mbps Fast Ethernet ports
    • Full/half-duplex for Ethernet/Fast Ethernet speeds


    • IEEE 802.3af PoE
    • 4 PoE ports, each supporting up to 15.4W
    • PoE budget of 52W


    • IEEE 802.3x flow control
    • Store-and-forward switching scheme
    • RoHS compliant

    Easy Setup

    • Plug-and-play installation
    • Auto MDI/MDIX crossover for all ports

    Convenient Design

    • Compact lightweight chassis
    • Ports located conveniently at the rear
    • Silent operation

    Technical Specifications



    • IEEE 802.3 10BASE-T Ethernet (twisted-pair copper)
    • ANSI/IEEE 802.3 NWay auto-negotiation
    • IEEE 802.3x flow control
    • IEEE 802.3u 100BASE-TX Fast Ethernet (twisted-pair copper)

    Switching Fabric

    • 1.6 Gbps switching fabric

    Data Transfer Rates

    • Ethernet
      • 10 Mbps (half duplex)
      • 20 Mbps (full duplex)
    • Fast Ethernet
      • 100 Mbps (half duplex)
      • 200 Mbps (full duplex)

    Media Interface Exchange

    • Auto MDI/MDIX adjustment for all ports

    Network Cables

    • 10BASE-T:
      • UTP CAT 3/4/5/5e (100 m max.)
      • EIA/TIA-586 100-ohm STP (100 m max.)
    • 100BASE-TX
      • UTP CAT 5/5e (100 m max.)
      • EIA/TIA-568 100-ohm STP (100 m max.)

    LED Indicators

    • Per unit: Power/ PoE Max
    • Per port: Activity/ Link and Speed
    • Per port: Power / Status

    Transmission Method

    • Store-and-forward

    MAC Address Table

    • 1K entries per device

    Packet Filtering/Forwarding Rates

    • Ethernet: 14,880 pps per port
    • Fast Ethernet: 148,800 pps per port

    RAM Buffer

    • 96 KB per device



    • 6.8” x 3.9” x 1.1” (172mm x 98mm x 27.9mm)

    DC Input

    • External 48V/1.25A power adapter

    Power Consumption

    • 63 Watts maximum


    • up to 15.4 Watts per port (ports 1-4 only)


    • Operating: 0 to 40 ˚C (32 to 104 ˚F)
    • Storage: -10 to 70 ˚C (14 to 158 ˚F)


    • Operating: 5% to 90% RH non-condensing


    • FCC Class B
    • CE
    • RoHS
    Warranty12 months
    Please Note
    Please noteAll information is provided for reference only. If you are unsure about any of the features listed, please check the manufacturer's official information.
