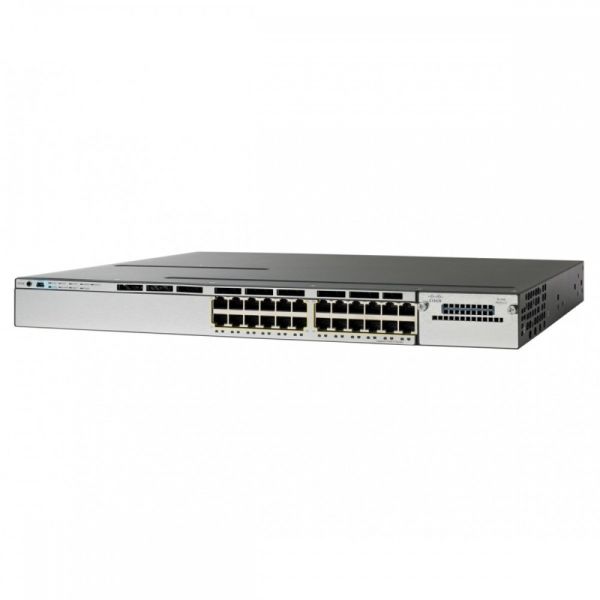

Cisco Catalyst 3850 24 Port Data LAN Base

Available in New & Refurbished (A-Grade)

The Cisco® Catalyst® 3850 Series is the next generation of enterprise-class stackable Ethernet access and aggregation layer switches that provide full convergence between wired and wireless on a single platform. Cisco’s new Unified Access Data Plane (UADP) application-specific integrated circuit (ASIC) powers the switch and enables uniform wired-wireless policy enforcement, application visibility, flexibility and application optimization.

This convergence is built on the resilience of the new and improved Cisco StackWise-480 technology. The Cisco Catalyst 3850 Series Switches support full IEEE 802.3at Power over Ethernet Plus (PoE+), Cisco Universal Power over Ethernet (Cisco UPOE), modular and field-replaceable network modules, RJ45 and fibre-based downlink interfaces, and redundant fans and power supplies.

• Up to 40G of Wireless Capacity Per Switch (48-Port Models)
• Support for up to 50 Access Points and 2000 Wireless Clients on Each Switching Entity (Switch or Stack)

24 and 48 10/100/1000 Data PoE+ and Cisco UPOE Models With Energy-Efficient Ethernet (EEE)

• Cisco StackWise-480 Technology Provides Scalability and Resiliency with 480 Gbps of Stack Throughput
• Cisco StackPower™ Technology Provides Power Stacking Among Stack Members for Power Redundancy
• Three Optional Uplink Modules with 4 x Gigabit Ethernet, 2 x 10 Gigabit Ethernet, or 4 x 10 Gigabit Ethernet Ports
• Dual Redundant, Modular Power Supplies and Three Modular Fans Providing Redundancy
• Full IEEE 802.3at (PoE+) with 30W Power on all Copper Ports in 1 Rack Unit (RU) Form Factor
• Cisco UPOE with 60W Power Per Port in 1 Rack Unit (RU) Form Factor
• Software Support for IPv4 and IPv6 Routing, Multicast Routing, Modular Quality of Service (QoS), Flexible NetFlow (FNF), and Enhanced Security Features
• Single Universal Cisco IOS® Software Image Across all License Levels, Providing an Easy Upgrade Path for Software Features
• Enhanced Limited Lifetime Warranty (E-LLW) with Next Business Day (NBD) Advance Hardware Replacement and 90-Day Access to Cisco Technical Assistance
• Centre (TAC) Support
• 24 Fully Configurable 10/100/1000Mbs RJ45 Ethernet Ports
• Dedicated Management Port

• Default AC Power Supply - 350WAC
• Dimensions (WxDxH) - 44.5 x 4.45 x 45 cm
• Weight - 7.2kg
• Minimum Operating Temperature: -5 °C
• Maximum Operating Temperature: 45°C
• Humidity Range Operating - 10 - 95% (Non-Condensing)
• Minimum Storage Temperature: -40 °C
• Maximum Storage Temperature 70 °C
• RAM - 4GB
• Flash Memory - 2GB
