Cisco 7914 IP Phone Expansion Module

Call coverage is a critical capability for administrative assistants and others who must monitor, manage, and cover the various status of calls. This requires the ability to instantly determine the status of a number of lines beyond the six-line capability of the Cisco IP Phone 7960.

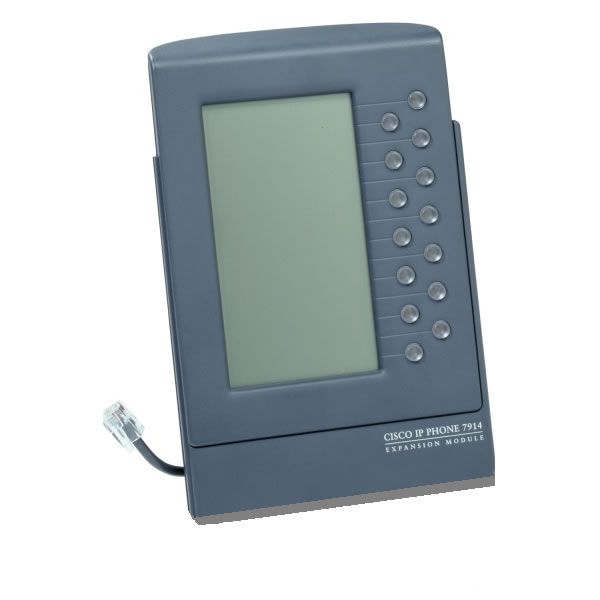

The Cisco IP Phone Expansion Module 7914 extends the capabilities of the Cisco IP Phone 7960 with additional buttons and an LCD display. With this expansion module, you add 14 buttons to the existing six buttons of the Cisco IP Phone 7960, increasing the total number of buttons to 20 with one module or 34 when you add two Cisco 7914 Expansion Modules. You can use up to two Cisco 7914 Expansion Modules with a Cisco IP Phone 7960.

Features

• Line Key: Using the Cisco CallManager Administration tool, the system administrator assigns one or more DN to buttons on the Cisco 7914 Expansion Module as desired. The line key will show the appropriate designation.

• Speed Dial: Each button not used as a line (DN) key can be programmed as a speed-dial key in the same manner as the Cisco IP Phone 7960. You can use the Cisco IP Phone User Options Web page to program a speed-dial number and label the associated button with an appropriate name.
