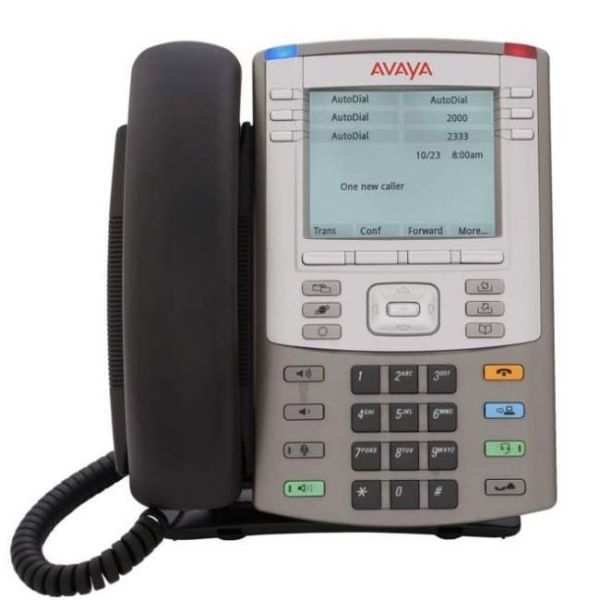

Avaya 1140E IP Deskphone

The IP Phone 1140E delivers advanced communications capabilities including support for both Nortel Communication Server and standards-based Session Initiation Protocol (SIP). It has a high-resolution, fully-backlit, pixel-based graphical monochrome eight-level greyscale display, support for converged (voice and data) applications as presented from external application servers such as the Nortel Application Gateway 2000, a four-way navigation cluster with Enter Key and USB peripheral support for a superior navigation experience, an integrated Bluetooth®* Audio gateway for greater freedom and mobility at the desktop, an integrated phone switch with Gigabit Ethernet LAN and PC ports and support for a local Tools Menu for simpler administration.

Features

• High Resolution LCD - graphical, fully back-lit, monochrome, eight-level greyscale, pixel-based (240 x 160) liquid crystal display with anti-glare screen.
• Flexible deployment options - with support of both Nortel Communication Server protocol and standards-based Session Initiation Protocol.
• Supports Converged (Voice & Data) Applications Presentation - in graphical format from external application servers such as the Nortel Application Gateway 2000 to elevate personal productivity.
• Secured Communications - with both standards-based signalling and media-path encryption along with network authentication for controlled access.
• Integrated Bluetooth - 1.2 Audio Gateway supports standard headset profiles for enhanced mobility.
• Fourteen fixed keys
• Four context-sensitive soft label keys
• 240 x 160 high resolution backlit display
• Adjustable tilt-stand
• Four-way navigation cluster with new “Enter/Send” key maximizes user choice and flexibility in navigation
• Standard USB port for support of standard USB mice, keyboard and powered hubs
• Ethernet switch (Gigabit Ethernet capable) with both PC and LAN
• Indicator lamps for ringing/voice message waiting
• New Features Lamp indicator
• IEEE Class 3 device and supports the 802.3af Power over Ethernet standard
• Supports firmware downloads and is “Session Initiation Protocol (SIP) Ready”
• Bluetooth integrated for standard Bluetooth headset pairing
• Expansion Module connection port
• Category 5e (CAT5e) cable 2m length included
• Desktop or wall mountable
• Graphite colour with a Silver Metallic Bezel
• Requires external power (either PSU or line power unit) - not supplied
• Headset Port (A10-11)
