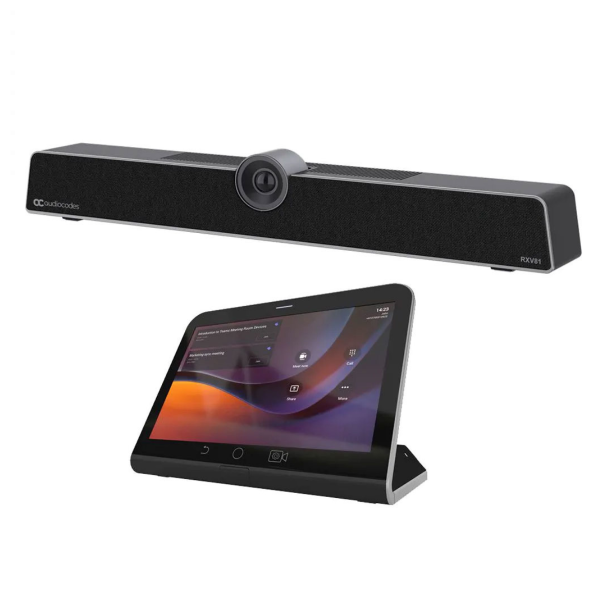

AudioCodes TEAMS-RXV81-B10 Video Collaboration Bar & RX-PAD Bundle

AudioCodes RXV81 Video Collaboration Bar and RX-PAD Bundle - Easy Setup to Control Meetings in Any Meeting Room

About the AudioCodes TEAMS-RXV81-B10

Included Products

• AudioCodes RXV81 Video Collaboration Bar
• AudioCodes RX-PAD

The RXV81-B10 Bundle contains the AudioCodes RXV81 Video Collaboration Bar and the AudioCodes PX-PAD Meeting Room Controller.

The AudioCodes RXV81 is a standalone Microsoft Teams Rooms on Android™ (MTR) Video Bar that takes Plug and Play Connectivity to another level, resulting in a familiar and exceptionally productive Microsoft Teams meeting experience.

When the RXV81 is bundled with the RX-PAD Meeting Room Controller, the user can easily set up and control meetings in any type of room via a central controller. Set up is simple and the resulting meeting experience is optimised.

AudioCodes RXV81 Video Collaboration Bar

With its stylish exterior and quick and easy setup, the RXV81 standalone MTR Video Collaboration bar is designed for Huddle Rooms and shared rooms, and is ideal for the offices of managers and exeutives in todays busy hybrid workplaces.

The RXV81's Embedded Speakers and 6 Miics, as well as Full HD and ePTZ with 5x Zoom, provide outstanding image clarity and enhanced voice quality, making every meeting interactive and personable, remote participants can see and hear everyone in the room, and can also participate in full Teams Vdeo and Content Sharing sessions.

AudioCodes One Voice Operations Centre (OVOC) Device Nanager Enables IT Personnel to monitor and upgrade the RXV81 from anywhere

Features

• 6 Beamforming Microphone Array with a Voice Pickup Range of 4.5m (15ft)
• Adjustable Camera Position with ePTZ Support with 5x Zoom
• 10W Speaker, Built in Bluetooth for Wireless Teams Casting and Proximity Join
• Certified for Microsoft Teams Rooms on Android™
• One Click Join Using Microsoft Teams Rooms on Android™ Application
• Plug and Play Connectivity - Easy to Mount with Minimal Connections
• Superior Audio, no need for Additional Microphones or Speakers
• Enhance the Meeting Experience with Centralised Device Management and Monitoring from any Location
• Use on an Ad Hoc Basis as a USB A/V Pheripheral for any UC Client
• Outstanding Full HD Image Clarity and Superb Surround Sound Ensures Everyone in the Meeting will be Seen and Heard

Specificatons:

Video and Camera Capabilities

• Ultra HD 4K Image Sensor
• Super Wide Angle Horizontal Field of View -110°
• Fixed Focus Lens, EPTZ Capable, 5x Zoom
• Output Resolution - 1080p @30fps
• Adjustable Camera Position (+-15° Manual Vertical Adjustment)

Audio

• Full Duplex, Noise Suppression, Acoustic Echo Cancellation, Voice Separation
• 6x Beamforming Microphone Array
• Voice Pickup Range - 4.5m (15ft)
• 10W Speaker

Device Interfaces

• HDMI Output to TV
• Power / Reset Button
• USB 3.0 Type A (Host) Marked 1 to Allow Touch LCD or Connectivity to Wireless KB via Bluetooth USB Dongle
• Ethernet - 10/100/1000 Mbps (RJ-45) Network Interface
• USB2.0 Type-C (Device) Marked 2 to Connect to PC/MAC BYOD Device (Peripheral Mode)
• 3 Status LED's Indicating Camera On / Off, Mute On, Call Status, Device Health
• Wi-Fi - Dual band Support, Bluetooth 5.0
• 12V / 3A DC Power Input

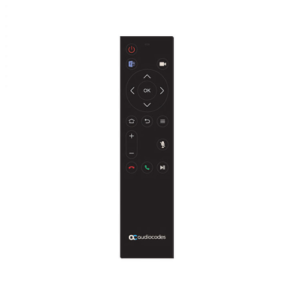

• Bluetooth Managed Remote Control

Operating System

• Android 12

UC Platform Support

Microsoft Teams Room for Android Application with:

• Intuitive Meeting Experience with Calendar Integration and Click-to-Join or Proximity Join Experience
• MTR Casting from Microsoft Teams Desktop Client
• Ad Hoc USB A/V Peripheral for any UC Client

Security

• Encryption: TLS (Transport Layer Security), SRTP Encryption for Media, AES256, Network Access Control: IEEE 802.1x
• Built-in Certificate

About the AudioCodes RX-PAD

The AudioCodes RX-PAD Meeting Room Controller is a stylish, ergonomically designed Intelligent Touch Controller providing quick and complete access to AudioCodes Meeting Room Solutions. It is packed with features that include one click collaboration intiation with an integrated calender, easy and quick content sharing, camera adjustments and more.

The RX-PAD provides simple plug and play connectivity to provide a productive Microsoft Teams meeting experience, that requires only a PoE Cable for quick and easy installation. The Cable is inserted into a cleverly designed compartment that prevents it being accidentally disconnected by a meeting particpant during that all important meeting.

Speedy Collaboration Initiation

One click to join for easy collaboration.

Inbuilt Calendar

An Inbuilt Calendar allows Meetings to be set or to be joined quickly.

Sleek, Ergonomic Design

Innovative ergonomic design for seamless operation.

PoE

A single cable connection keeps your desk clean and tidy.

Proximity Sensors

A human proximity sensors trigger automatic lighting to greet the user.

Status Light

Features

• Plug and Play Simplicity to Deliver a Productive Microsoft Teams Meeting Experience and Requiring Connection with Just a PoE Cable
• Quickly Set or Join a Meeting with an Inbuilt Calendar
• One Click Join for Easy Collaboration
• Start Meetings Instantly and Share your Screen with Single Touch
• Effortlessly Boost Meeting Productivity with a Customised and Intuitive Interface
• Option to Add AudioCodes Meeting Insights Productivity and Recording Solution
• Can be Managed Through AudioCodes One Voice Operations Centre (OVOC) Device Manager or by Microsoft Teams Admin Centre (TAC)
• Requires Pairing to the Main Microsoft Teams Room Compute Unit
• Compatible with the AudioCodes RXV81 and RXV200 Microsoft Teams Rooms on Android Devices
• RX-PAD Functions are Easily Accessible on the Touch Screen Including Easy Access to Camera Settings

Specifications:

Display

• Landscape Touch 8 Inch LCD (1280 x 800) Resolution

Device Interfaces

• Ethernet 10/100/1000 Mbps (RJ-45) Network Interface (PoE)
• Wi-Fi (Dual Band Support), Bluetooth 5.0
• 12V / 3A DC Power Input
• Proximity Sensor

Operating System

• Android 12

Weight and Dimensions

• Weight - 0.908kg
• Dimensions (Including Stand) - 212mm x 128.4mm x 152.8mm (W x D x H)

Package Contents

• AudioCodes RXV81 MTR on Android™ Collboration Bar
• Ethernet Cable
• Power Adapter (PSU)
• USB Type-C Cable

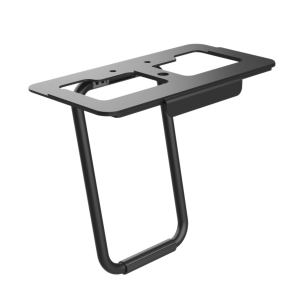

• Wall Mount and Screw
• HDMI Cable
• RX-PAD Meeting Room Controller
