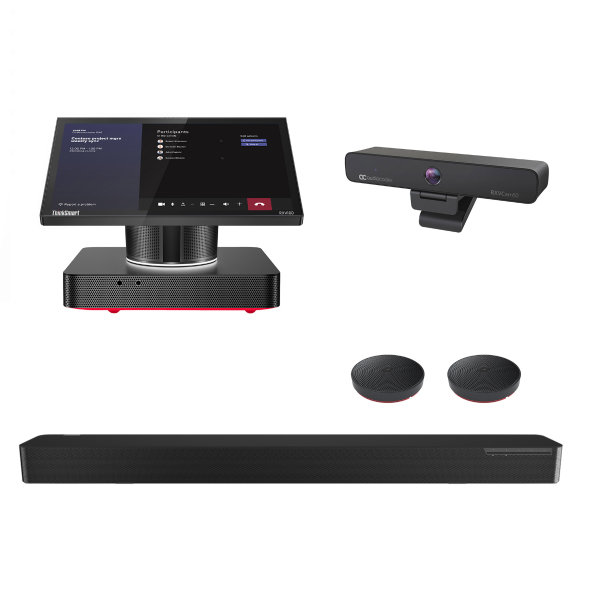

AudioCodes RXV100-B42 Large Room Video Conferencing Bundle

AudioCodes RXV100 Bundles Deliver the Optimal Hybrid Collaboration Experience & Superior Video and Audio Quality for all Meeting Partcipants -  This Bundle is Ideal for Large Meeting Rooms with up to 15 Participants and is Compatible with Microsoft Teams, Zoom & Other UC Platforms

About the RXV100-B42 Bundle

Included Products

• AudioCodes RVX100Hub
• AudioCodes RXVCam50L
• AudioCodes RX40 Audio Sound Bar
• 2 x Satelite Microphones

In todays business world, on site meetings often now involve a greater number of participants. Effective Video and Audio Collaboration is a must as well as factors including Voice Pickup Range, Visual Coverage and Unified Communications Integration to ensure truly productive meetings.

The AudioCodes RXV100-B42 Bundle acts as Microsoft Teams Rooms on Windows devices, bringing meetings to life and delivering the best optimal collaboration experience, turning any meeting room into a smart meeting room.

Exceptional 1080p Ultra HD Video captures the entire meeting room in stunning clarity, and in any lighting conditions from low light levels to direct sunlight. AI powered Auto framing smoothly adjusts the camera view according to active users and room scenery, ensuring that every participant in the meeting room can be seen clearly.

High quality Microphones and Speakers powered by Dolby's innovative technology ensure crystal clear sound, and wide pickup range ensures that no one gets overlooked.

Central to the RXV100-B42 Bundle is the Microsoft Certified RXV100Hub - the Microsoft Teams Rooms for Windows Room Controller and Compute Unit that offers Smart Control, Share and Collaboration Technology for Conference Rooms of any size.

It also provides simplified wired and wireless connectivity to various Cameras and audio peripherals, enhancing the meeting experience in a variety of room configurations.

In audio only huddle and focus rooms, the RXV100 Meeting Hub can also be deployed as a standalone Meeting Room Device, utlilising the Integrated Acoustic Microphone and Speaker.

About the AudioCodes RXV100Hub

The RXV100Hub has a built in Audio System with outstanding audio quality and an integrated audio system of 4 Array Microphones and 4 Speakers that are designed for fully immersive 360° sound, meeting the needs of a small to medium sized room with up to 10 users (depending on the room size).

It is a co-development of Lenovo and AudiCodes based on the Lenovo ThinkSmart Hub certified for Microsoft Teams. Built on the Microsoft Teams Rooms Platform the RXV100Hub enables participants to communicate via video, voice or content sharing for real time collaboration.

Its rotatable 10.1 Inch Touchscreen display makes it easy for meeting participants to control and share the meeting.

Features

• Synchronise the Room Calendar with One Click to Join
• Proximity Join via Mobile, PC or Tablet Running Teams Application
• Meet Now to Initiate Ad-Hoc Online Meetings
• During the Meeting Users can - Mute or Unmute a Participant or all Participants, View and Approve Participants (Lobby Management)
• Define what is Displayed on the TV Screen - Video and Content Sharing, Multiple Monitors
• The RXV100Hub Design has a Small Footprint
• Human Sensor to Light-up the 10.1 Inch Touch Controller when Someone Enters the Room
• RXV100Hub is Designed with Ultra Low Noise
• The Smart One Cable Mechanism Reduces Tabletop Clutter for a Cleaver and Neater Space

Highlights:

Centralised Management and Monitoring

• Via AudioCodes Device Manager (RXV100Hub and Peripheral Devices) and Microsoft Teams Admin Centre (RXV100Hub Only)
• Device Alarm Monitoring (Via Device Manager)

Integration with Microsoft Teams

• Room Calendar Synchronisation with One Click to Join
• Proximity Join via Mobile, PC or Tablet Running Teams App
• Meet Now Functionality to Initiate Ad-Hoc Online Meetings
• Touch Room Display Support for Interactive White Boarding in Teams Meetings
• Integration with AudioCodes RXVCam10-CC AI Powered Content Camera for Sharing Physical Whiteboard Content
• Cortana Based Voice Control

Robust, Ergonomic Hardware Design

• Integrated Touch Controller with In-Meeting Control Options that Include - Audio / Video Control, Mute / Unmute Participants, Lobby Management, Video Screen Layout and Control
• Human Proximity Sensor Activates the Controller when a Person Enters the Room
• Integrated Audio System with 4 Array Microphones and 4 Speakers delivering Immersive 360° Sound
• Single Connectivity Cable Reduces Tabletop Clutter

Specifications

• Display - 10.1 Inch Full HD (1920 x 1200) Antiglare, Smudge Resistant Touchscreen, 360° Rotatable, 320 Nits, 16:10 Aspect Ratio
• Integrated Audio - 4 x 3W Duplex Premium Tuned Speakers, 4 x 360° Dual Array Microphones with Far Field Support
• User Accessible Ports - HDMi Ingest, USB 3.2 Type-C, 3 x USB 3.2 Type A, 2 x HDMI, RJ45, Headphone / Mic Combo, Power In
• Wireless - Intel® 9560 802.11AC (2 x 2), Bluetooth® Low Energy 5.0
• Sensor - IR-Based Proximity Sensor
• indicator Lights - LED Call Status Indicator on Column and Top of Touch Controller
• Dimensions - 185.3mm x 240mm x 200mm (H x W x D)
• Weight - 2.47kg / 5.45ibs

About the AudioCodes RXVCam50L

The AudioCodes RXVCam50L Video Camera has been designed for all types of meeting rooms and conference rooms. Boasting vivid image quality and 4K HD Resolution, providing an exceptional video conferencing experience.

Smart Zoom and Face Detection Technology combine to power Auto Framing Features that automatically adjust the Camera's ePTZ (Electronic Pan, Tilt and Zoom) so that every participant in the meeting can be seen clearly.

The RXVCam50L is designed for large meeting rooms with a narrow field of view. It is compatible with leading Unified Communication Platforms including Microsoft Teams and Zoom Rooms. Plug and play USB connectivity means quick an easy installation as well as being easy to use.

Features

• Exceptional Images at 4K / 30fps Resolution, 1080p Ultra HD
• 10x Digital Zoom for Clear Room Coverage
• Compatible with Microsoft Teams, Zoom Rooms and other Leading UC Platforms
• Smart Zoom and Auto Framing Technology
• Plug and Play via USB Interface
• High Quality Image and Natural Colour in all Lighting Conditions
• Compact and Lightweight with Smart Mounting - Mount Either on a TV or on a Wall
• Powerful Face Detection Capabilities
• Managed by AudioCodes One Voice Operations Centre (OVOC)

Specifications:

Camera

• Image Sensor - 1/2.5 Inch High Quality 4K CMOS Sensor
• Effective Pixels - 8.28MP, 16:9
• Video Output - USB3.0, Type B. Support for Audio Signal Output
• Video Resolution - Main Stream - 3840×2160 @30fps, 1920×1080P @30fps/25fps, 1280×720P@ 30fps/25fps, Sub Stream - 1280×720P @30fps/25fps, 640×480P @30fps/25fps, 320×172P @30fps/25fps
• Angle of View -  91° (D) / 81°(H) / 54°(V)
• Focal Length - f=3.24mm
• Aperture - F2.1
• Minimum Illumination - 0.1Lux (F1.8, AGC ON)
• Digital Zoom - 10x
• DNR - 2D & 3D DNR

USB

• Operating System - Windows 7 (1080P/720P), Windows 8.1, Windows 10, MacOS™ 10.10 and above, Linux (UVC)
• Video Compression - YUY2, MJPG, H.264, H.265
• USB Protocol - UVC, UAC
• PTZ Control - Supports ePTZ
• Hardware Request - 2.4 GHz Intel Core 2 Duo Processor or better, 2GB Capacity or more, USB 2.0, Input (USB3.0 for 4K)

About the AudioCodes RX40 Audio Sound Bar

The AudioCodes RX40 Audio Sound Bar is an intelligent USB Powered External Speaker with two Satelite Microphones. It has been designed for use in medium to large conference rooms, its superior audio performance captures every detail of meetings.

With its outstanding audio quality, scalability and plug and play installation, the AudioCodes RX40 Audio Bar links todays office and remote workers quickly and effectively.

Features

• Utilises Plug and Play Simplicity to Provide a Productive Experience by Converting your Conference into an Immersive Event Where all Participants Feel as they are in the Same Room
• A Powerful Audio Solution that is Ideal for Medium to Large Conference / Meeting Rooms
• Stereo Speakers and a Subwoofer make Calls and Video Conferences Clear
• Two Satelite Microphones with 6m Cables Cover a Range of up to 10m, Whilst Built in DSP Noise Reduction Prevents Echoes and Background Noise

Specifications:

Speakers

• Up to 100dB
• Power Output 20+20W with 4 Speaker Units
• Built in DSP for Echo and Noise Cancellation
• Speaker Frequency Range - 250Hz to 20KHz

Built in Buttons

• Power, Mute, Bluetooth, Volume Up / Down

Microphones

• 2 x Satelite Microphones with 6m Cable, Range up to 10m+1, Microphone Frequency Range - 300Hz to 8KHz

Connectivity

• USB 2.0 USB-C Connector
• Bluetooth 5.0 (A2DP, SBC, MPEG-4, AAC)
• Analog Output Jacks (Support Daisy Chain)

Weight and Dimensions

• Weight - 3.6kg
• Dimensions - 800mm x 56mm x 90mm (W x H x D)

Mounting Options

• Standalone (Tabletop) Wall and TV Mounting Options

Certifications

• Microsoft Teams Rooms
• Zoom Rooms

Package Contents

• 1 x AudioCodes RXV100Hub
• 1 x AudioCodes RXVCam50L
• 1 x AudioCodes RX40 Audio Sound Bar
• 2 x Satelite Microphones
• 1 x USB 3.0 Cable
• 1 x Remote Control
• User Manuals
