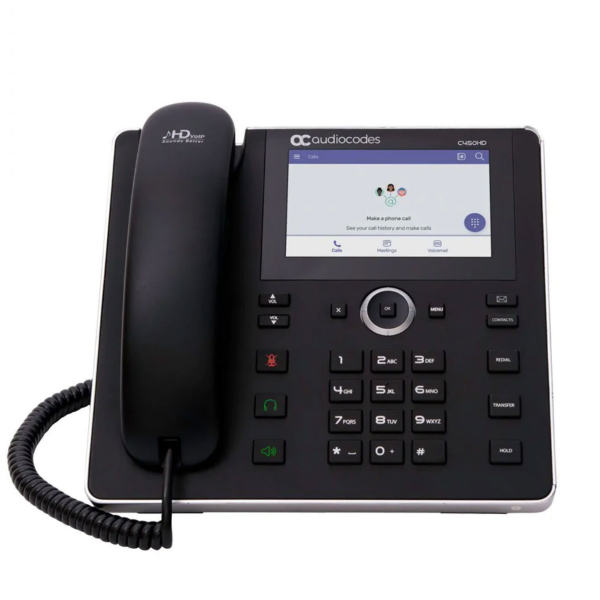

AudioCodes C450HDEG-DBW Teams IP Phone

A Native Microsoft Teams High End Executive Business Phone with a Large 5 Inch Colour Touch Screen, Integrated Dual Band 2.4GHz and 5GHz Wi-Fi and Bluetooth

About the AudioCodes C450HDEG-DBW

The AudioCodes 400HD Series of Native Microsoft Teams IP Phones are a range of easy to use, feature rich Phones for boosting workplace productivity by providing a superior Microsoft Teams experience.

Each IP Phone offers reliable, high quality communication and is packed with advanced features that deliver crystal clear voice quality, superb image clarity, calendar synchronisation and one click join functionality for seamless integration with any Microsoft Teams deployment.

The AudioCodes Microsoft Teams Native C450HDEG-DBW IP Phone is an executiive, high end business Phone for Microsoft Teams and Skype for Business. It supports single click switchover between Microsoft Teams with native client experience and Skype for Business.

The C450HDEG-DBW is equipped with many advanced features including a large 5 inch Colour Touchscreen, Full Duplex Speakerphone, Integrated Wi-Fi and Bluetooth, 8 Lines - Supporting 8 Concurrent Calls, 8 Programmable Keys, 2 x USB Ports and more.

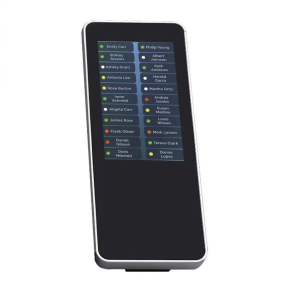

It can also be expanded when using the Optional Colour Touchscreen Expansion Module, for enhanced productivity, accommodating up to 50 contacts with one click speed dial.

Features

• Integrated Bluetooth and Dual Band Wi-Fi
• 8 Lines, 8 Concurrent Calls Per Line
• 8 Programmable Multi-Function Keys
• Graphical 5 Inch Colour Touchscreen (1280 x 720)
• Multi-lingual Support, Dual GbE Support
• PoE or Optional External Power Supply (Power Supply not Included)
• 2 x USB Ports, Kensington Lock
• Full Duplex Speakerphone and Headset Connectivity
• Crystal Clear Voice Quality
• Android OS 7.1 (roadmap 9.0)
• Kensington Lock
• Optional Colour Touchscreen Expansion Module

Telephony Features

• Call Waiting, Call Hold, Call Transfer, Call Forward
• 3 Way Conference Call (Local Mix) and Network Conferencing
• Hot Line, DND, Mute, Sped Dial, Dial Plan, CWRR, Call Logs
• Auto Answer via TALK Event, Call Pickup, Multiple Boss Admin
• Shared Line Appearance, Call Park

Specifications:

User Interface

• Intuitive Touch Screen
• Virtual Keyboard
• Multi-Language Support
• Mechanical Keys with a Backlight for Mute, Speaker and Headset
• Mechanical Keys without a Backlight for Transfer, Hold, Redial, Contacts, Back and 4 Way Navigation with OK
• Dedicated Presence Indication LED (Red / Green / Yellow)
• Multi-Lingual UI Support

Media Processing

• Voice Coders - G.711, G.729, G.722, SILK
• Acoustic Echo Cancellation
• Adaptive Jitter buffer
• Voice Activity Detection
• Comfort Noise Generation
• Packet Lost Concealment
• RTP/RTCP Packetisation (RFC 3550, 3551), SRTP (RFC 3711)

Network and Security Features

• HTTP/HTTPS Secured Provisioning
• UDP/TCP, NTP, DNS/SRV
• RTP/RTCP Packetisation (RFC 3550, RFC 3551), SRTP (RFC 3711)
• TLS Version 1.2 - Secured Transport Layer
• 802.1x for Secured Network Access
• VLAN Discovery Modes: CDP-LLDP, CDP only or LLDP only
• Support for HTTP Proxy and PAC File, either Manually or via DHCP Option 252

Wired Connectivity

• RJ-9 Handset, USB Headset
• Two x RJ-45 Gigabit Ethernrt (GbE) (10/100/1000BaseT Ethernet) Ports for WAN and LAN

Screen Orientation

• Landscape

Wi-Fi

• Dual Band 2.4GHz and 5 GHz 802.11b/g/n Wi-Fi Support

PoE Class

• 3 (IEEE802.3af)

DC Power Jack

• 12V, Optional External Power Supply - 2A/12V 100~240V

Base Stand Options

• Detachable Base, 2 Positions, Wall Mount

Weight and Dimensions

• Weight - 1.014kg
• Dimensions  - 2 Stand Positions - 236mm x195mm x 197.5mm (W x D  x H), 236mm x 200mm x 165.9mm (W x D x H)

Package Contents

• AudioCodes C450HDEG-DBW Teams Touch IP Phone
• Handset and Curly Cord
• Cat 5e Ethernet Cable
• Desktop Stand
• Wall Mount
