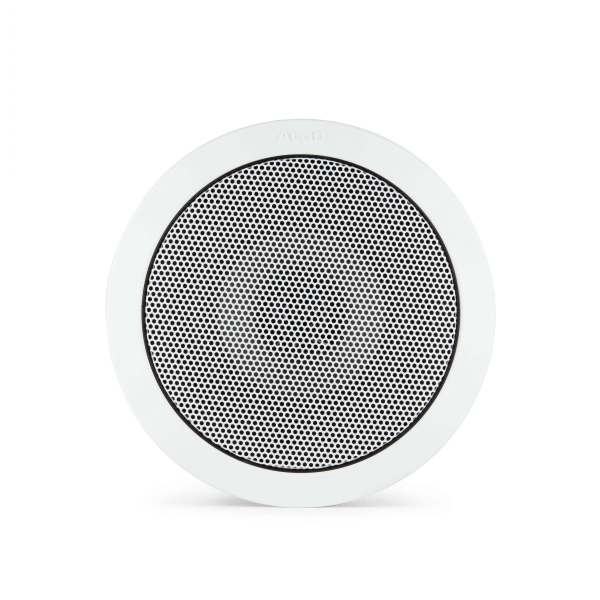

Algo 8198 IP PoE+ Ceiling Speaker

IP Ceiling Speaker uses Satellite Extension Technology for High Intelligibility IP Paging with Reduced Cost

The Algo 8198 IP PoE+ Ceiling Speaker is an SIP compliant and multicast capable PoE+ network audio device for public address and notification. For expanded coverage, up to three satellite speakers maybe connected to the 8198 Speaker sharing the 16W of available audio power.

The number of network drops can be reduced by 75% with corresponding reduction in installation time, network ports and cost for most paging applications. Standard network patch cables are used to connect the satellite speakers in a daisy chain string from the 8198 IP Speaker.

Identical in appearance and acoustical output to the 8198 IP speaker, the satellite speakers can provide ambient noise response based on the 8198 microphone noise detection and by default automatically adopt the zone and volume settings of the 8198 speaker.

Since an important benefit of IP paging is the ability to supervise speakers for operational and connectivity assurance, the 8198 IP Speaker automatically detects each satellite speaker connected and continuously monitors the satellite speakers.

The 8198 is compatible with all leading SIP based premise or hosted UC platforms, leading mass notification software platforms, Polycom Group Page and standard RTP multicast.

Features

• Ambient Noise Responsive
• Talkback Capable Speaker, Multicast Scalable
• PoE and PoE+ (Power over Ethernet)
• Supports SIP, Multicast, Polycom Group Page, InformaCast, Revolution
• Wideband and Fullband Audio Codec Support enables High Intelligibility Voice Paging
• Configuration Via User Friendly web Interface or Auto Provisioning
• Customise WAV Files for Emergency Notification / Alerting and Telephone Loud Ringing
• Dual Class D Amplifiers
• Codec Support for G.711, G.722, OPUS 48 kHz

Specifications:

Power

• PoE / PoE+ - 48 V PoE IEEE 802.3af/at Max 25.5 W - Idle Nominal 2.5 W

SIP

• Extensions - 50 Page & 10 Alerting/Ring Extensions with Multicast Scalability
• Transport Protocol - UDP, RTP, TCP
• Security - TLS, MTLS, SRTP

Multicast Compatibility

• Multicast - RTP Multicast (Send & Receive 50  Zones)
• Third Party Multicast - PolycomTM Group Page, SinglewireTM InformaCast, Syn-AppsTM Revolution

API

• RESTful API

Digital IO

• Relay Input - Normally Open or Normally Closed Dry Contact Supervision. Compatible with Algo 1202, 1203, and 1204 Accessories

Satellite Speakers

• Quantity - Up to 3 x 1198 Satellite Ceiling Speakers
• Speaker Connections - Patch Cable 4 Pair UTP 24 AWG RJ45 Plug Terminated T568A or T568B “Straight-Through”. Maximum Recommended Patch Cable Length 50 Feet (13m) between Each Speaker

Audio

• Audio Codecs: G.711 A-law, G.711 u-law, G.722, Opus 48 kHz
• Driver - 6.5” (16.5 cm) Coaxial UV Stabilised
• Driver Response - 55 – 18,000 Hz (- 10 dB)
• Driver Sensitivity - 88 dBA 1m/1W (1 kHz)
• Max Audio Power - 16 Watts (Shared Equally between 8198 and up to 3 x 1198)
• Dispersion Angle - 140° (2 kHz -6 dB)
• Audio Memory - 1 GB
• Microphone - Omni- Directional, Talkback and Ambient Noise Monitoring
• Audio Controls - Volume, AGC, Latency, LF Cut
• Anti-Feedback Delay - Cache to Memory and Release

Network

• Network - IPv4, IPv6, DHCP, VLAN, MDNS
• Secure SIP - TLS, MTLS, SRTP
• Link Layer - LLDP, CDP
• QoS - DSCP (SIP, RTP, RTCP)
• Web Interface - HTTP, HTTPS
• Provisioning - TFTP, FTP, HTTP, HTTPS
• DHCP Options 66, 150, 160
• Reboot via - SIP Check-sync
• NAT: STUN, TURN, CRLF Keep Alive
• SIP Outbound
• Address Resolution - DNS, SRV Record
• Supervision - SNMP V1.3, RTCP, Algo 8300
• Redundancy - Secondary & Tertiary SIP Servers

Package Contents

• Algo 8198 SIP Ceiling Speaker
• Trim Ring, Speaker Grill
• Tool for Grill Removal and Reset
• Protective Wiring Cover and Screws
• Pluggable Terminal Block for Relay Input and Output
• Getting Started Sheet
• Hole Cut Out Template, Screwdriver
