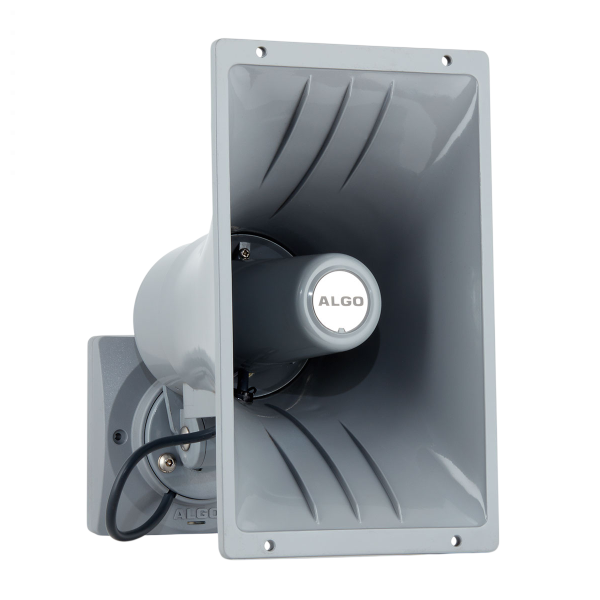

Algo 8196 IP PoE+ Horn Speaker

The Algo 8196 IP PoE+ Horn Speaker is a powerful SIP-based network speaker designed for clear voice paging, emergency alerts and loud ringing across demanding indoor and outdoor environments. Delivering up to 119 dB SPL and 16W maximum audio power when used independently with PoE+, it provides excellent voice intelligibility for warehouses, factories, transport facilities, industrial sites and other high-noise locations.

Powered using PoE+, the 8196 combines power and network connectivity through the Ethernet infrastructure, helping simplify installation and reduce additional cabling. Its IP66-rated, UV-stabilised enclosure and operating temperature range of -40°C to +50°C make it suitable for indoor, outdoor and wet environments when correctly installed

Powerful, Clear IP Paging

Designed for professional VoIP / SIP paging, the Algo 8196 combines high-output audio with support for G.711, G.722 Wideband and Opus Fullband codecs. An 80° horizontal × 50° vertical dispersion pattern helps direct announcements effectively across the required coverage area.

The integrated omnidirectional microphone provides ambient noise monitoring and hands-free talkback, allowing the speaker to adapt to changing noise conditions while also supporting two-way communication applications.

Expand Coverage with Algo 1196 Satellite Speakers

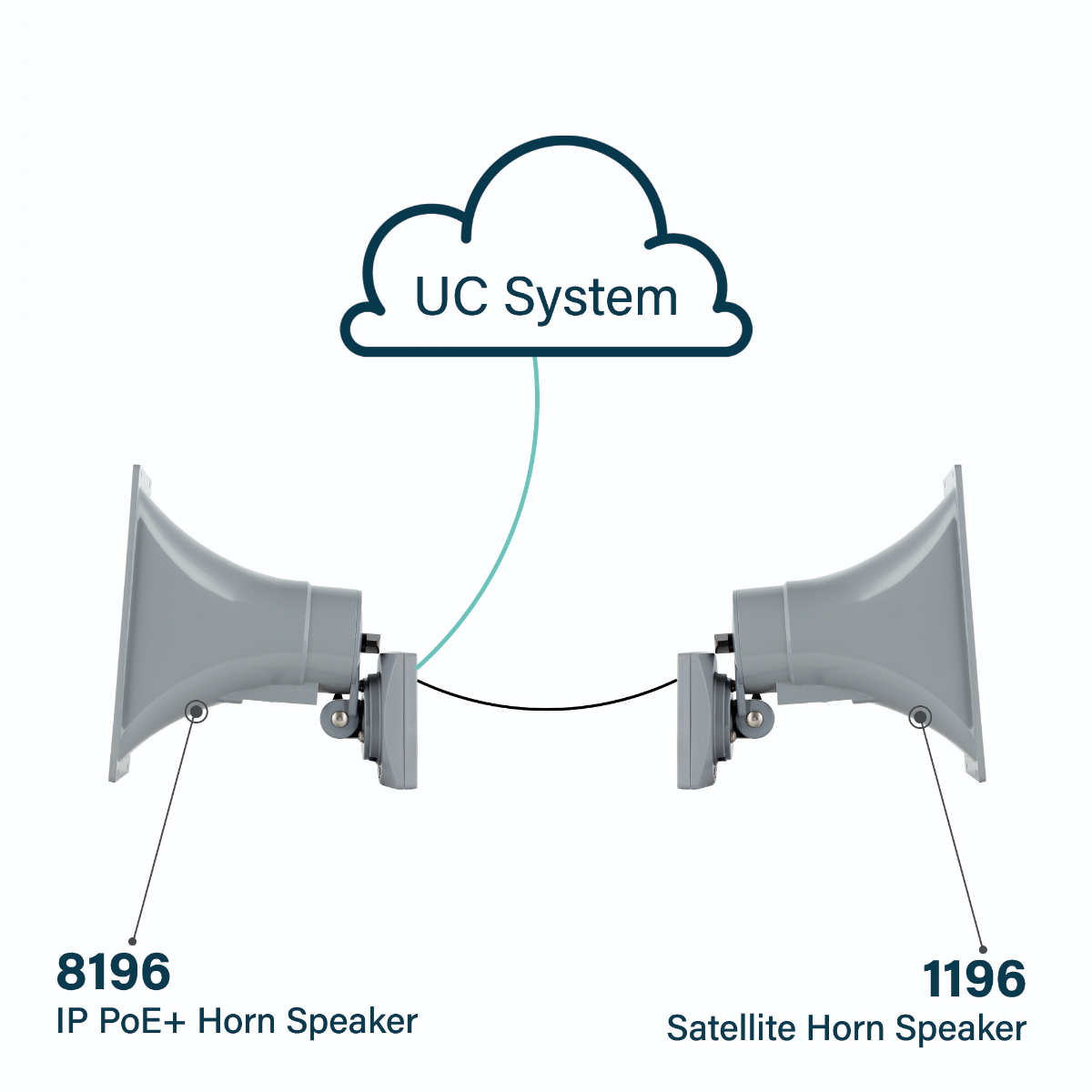

The Algo 8196 can operate independently or power and supervise up to three optional Algo 1196 Satellite Horn Speakers (sold separately), providing a cost-effective way to expand audio coverage.

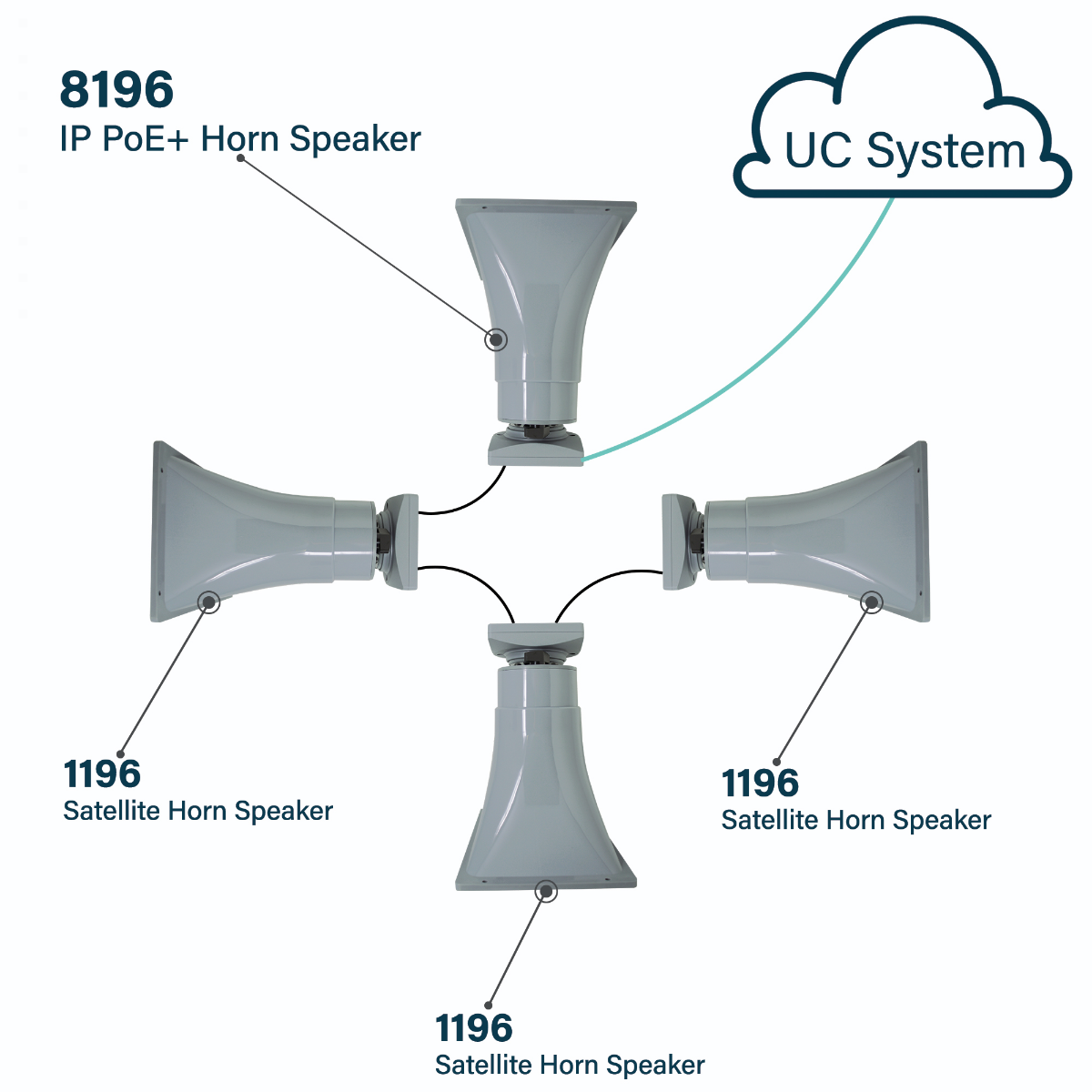

Satellite speakers connect using standard Ethernet patch cables in a daisy-chain configuration, reducing the number of network ports and cable drops required. The 8196 automatically detects connected satellite speakers and monitors their connection status, helping simplify larger installations.

When satellite speakers are connected, the available 16W audio power is shared equally between the 8196 and connected 1196 speakers.

SIP, Multicast & Network Integration

The 8196 supports SIP paging, emergency alert and ring extensions, alongside the ability to send and receive RTP multicast across up to 50 zones. Secure communications are supported through TLS, SRTP and mutual authentication.

With 1GB of onboard audio storage, WAV and MP3 files can also be stored for pre-recorded announcements, alerts and notification tones.

Configuration is available through a web interface or provisioning server, with Zero Touch Provisioning (ZTP) helping simplify larger and multi-site deployments.

IP66 Rated for Indoor & Outdoor Installation

Built for demanding environments, the Algo 8196 features an IP66-rated enclosure manufactured from UV-stabilised outdoor-rated plastic with stainless steel mounting hardware.

The speaker can be installed on a wall, ceiling or double-gang electrical box, with three-axis adjustment allowing the horn to be directed towards the required coverage area. An optional pole-mount bracket is also available.

Ideal Applications

• Warehouses & Distribution Centres
• Factories & Manufacturing Facilities
• Industrial & High-Noise Environments
• Transport & Logistics Facilities
• Schools & Educational Campuses
• Commercial & Public Buildings
• Outdoor Paging Systems
• Emergency & Safety Notifications
• Loud Ringing & Alert Applications

Key Features

• Powerful 119 dB Output - Clear paging and alerts across noisy environments
• 16W Maximum Audio Power - High-output performance when used independently with PoE+
• Expandable Audio Coverage - Powers and supervises up to three optional Algo 1196 Satellite Horn Speakers
• IP66 Outdoor Rated -  Suitable for indoor, outdoor and wet environments when correctly installed
• PoE+ Powered - Simplifies installation by using Ethernet infrastructure for power and connectivity
• VoIP / SIP Paging - Designed for integration with compatible SIP communication systems
• Multicast Support - Send and receive RTP multicast across up to 50 zones
• Ambient Noise Detection - Integrated microphone helps manage paging in changing noise conditions
• Hands-Free Talkback - Enables compatible two-way communication applications
• Wideband Audio - Supports G.711, G.722 Wideband and Opus Fullband codecs
• Built-In Audio Storage - 1GB storage for WAV and MP3 announcements and alerts
• Flexible Installation - Wall, ceiling or double-gang electrical box mounting

Technical Specifications

Package Contents

• Algo 8196 IP PoE+ Horn Speaker
• Mounting Hardware
