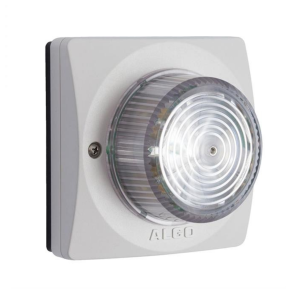

Algo 8138 IP Colour Visual Alerter

IP Colour Visual Alerter for Telephone, Safety, Security & Event Notification and Emergency Alerting - PoE

The Algo 8138 IP Colour Visual Alerter is a PoE IP Endpoint with Amber, Blue, Green and Red multi-colour LED's for visual notification. The outdoor rated PoE IP Strobe Light is designed for telephone ringing where noise, noise sensitivity or hearing impairment are at issue. Together with Algo IP Speakers, the 8138 is commonly deployed as part of public address (PA) and mass notification systems to visually alert for safety, security and for emergency events.

Activation is triggered by a telephone ring event using SIP registration to any leading VoIP UC Cloud and Premise Platform, The Algo 8138 Alerter is a fully compliant 3rd Party SIP Endpoint, making it compatible with most hosted cloud and premised based VoIP Telephone Systems.

The 8138 IP Color Visual Alerter is UL/CSA, FCC and CE certified.

360° Visibility

Whether flashing or steady on state, the bright LED's of the 8138 are visible from any direction, allowing installation in any orientation, including wall mount or ceiling mount. Each colour is produced by 16 separate ultra efficient and long life LED's pointing on axis and radially to provide up to 690 lumen flux and 190 peak candela.

Multicast Scalable

The Algo 8138 can be activated by an SIP ring event and configured to simultaneously transmit a multicast stream over the network to trigger as many other 8138 IP Visual Alerters as required and keep them synchronised with each other.

Safety & High Brightness LED's

The 8138 meets requirements of the IEC 62471 standard relating specifically to blue light and UV emission to be considered safe to view in all conditions. Photosensitive seizure is a risk for any flashing light however the Algo 8138& includes a steady state solid on option, low intensity settings and high frequency modulation for elimination of risk related to flicker.

Features

• Weatherproof Multi-Colour IP Alerter for Public Address (PA) and Alert Notification
• Secure SIP Using TLS and SRTP
• Multicast to Scale from one to Many Synchronised Strobes
• Long Life LED's Providing 360 x 180 Degree Visibility from a Wall or Ceiling Mount Location
• 180 Combinations of Flash Patterns, Intensity and Colour, Including Steady State On

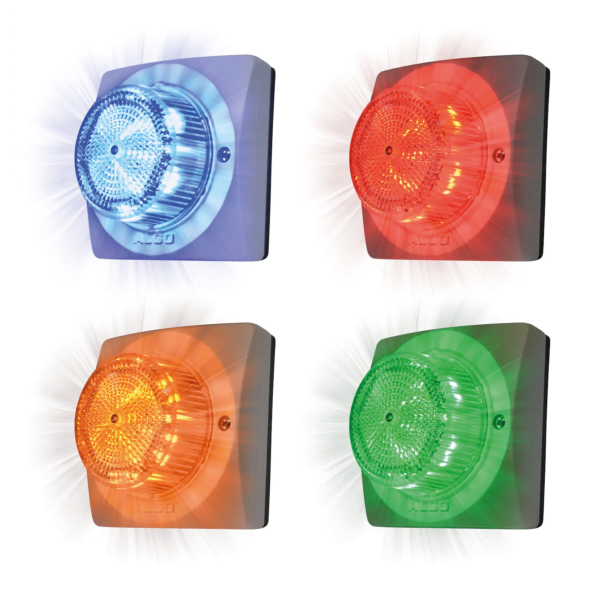

• Amber, Blue, Green and Red LED Colour Options to Distinguish Unique Events and Enhance Situational Awareness
• Configuration Via User Friendly Web Interface or Auto Provisioning
• PoE (IEEE 802.3af)

• For White LED Only - See Algo 8128

Typical Applications / Usage Scenarios

• Telephone Ring in Noisy Environments
• Situational Awareness (Warning, Danger, All Clear, Go, Stop etc)
• Voice Paging Pre-Alert or Live Alert
• Emergency, Safety and Security Notification
• Notification for the Hearing Impaired
• Silent Notification in Quiet Locations
• Usage Scenarios - Outdoor Yards Factories / Warehouses / Schools / Hospitals / Universities / Bus / Railway Stations / Government Offices

Specifications:

• Power Input - PoE IEEE 802.3af Idle Nominal 2.0W Maximum 12.95W
• SIP - 50 SIP Extensions for Activation or Cancellation of Visual Alerting. UDP, TCP, TLS, RTP, SRTP
• Multicast - Transmit/ Receive 50 Zones, IGMP, RTP, InformaCast, Revolution*, Polycom Group Page
• Configuration - Web Interface or Provisioning Server
• Web Interface - HTTP, HTTPS
• Provisioning - TFTP, FTP, HTTP, HTTPS, DHCP Options 66, 150, 160, Reboot via SIP Check-Sync
• Networking - IPv4, IPv6, DHCP, VLAN, MDNS
• Link Layer - LLDP, CDP
• QoS - DSCP
• Supervision - SNMP V3
• NAT - STUN, TURN, CRLF, Keep Alive, SIP Outband
• Address Resolution - DNS, SRV Record
• Redundancy - Secondary and Tertiary SIP Server
• Time - NTP Server (Up to Four)
• API Support - RESTful API (Developer Support Available from Algo)
• Enclosure - High Impact UV Stabilised Flame Retardant Plastic with Mounting Plate and Gasket Kit
• LED's - 64 CREE LEDs (16 Each - Amber, Blue, Green, Red)
• Flux - 370-690 Lumens (Colour Dependent)
• Peak Intensity - 102-190 Candela (Colour Dependent)
• Flash Patterns - 20 Configurable from 180 Combinations of LED Flash Pattern, Intensity, and Colour(s)
• Relay Output - Normally Open Dry Contact Closure50mA 30V Max. Activation Event Configurable/li>
• Relay Input - Detect Normally Open or Normally Closed Dry Contacts.Max 6.5 kOhm External Resistance. Compatible with 1202 &1203 Call Buttons
• Weight - 1.5lbs ( 0.7kg)
• Dimensions - 4.8” W x 4.8” H x 3.0” D, (12.2cm W x 12.2cm H x 7.6cm D)
• Mounting - Plastic Mounting Bracket Including Fitting and Single and Double Gang Electrical Boxes or Low Voltage Brackets

Package Contents

• Algo 8138 Colour Visual Alerter
• Mounting Bracket
• Screwdriver
• Quick Start Guide
