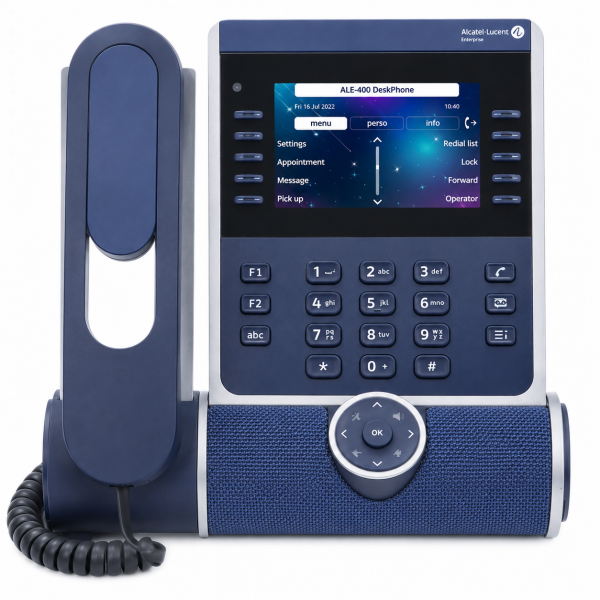

Alcatel-Lucent Enterprise ALE-400 IP Desk Phone

The Alcatel-Lucent Enterprise ALE-400 IP DeskPhone is a premium professional business telephone designed to provide intuitive call handling, high-quality audio and flexible connectivity for modern workplaces. Part of the ALE Enterprise DeskPhones range, the ALE-400 combines a large 4.3-inch colour touchscreen, 3D Symphonic HD audio, dual Gigabit Ethernet, dual USB-C and NFC connectivity in a modern and expandable desktop design.

Supplied with a corded handset, the ALE-400 is designed for use with compatible Alcatel-Lucent Enterprise communication platforms. Its modular design allows optional accessories including Wi-Fi and Bluetooth connectivity, an alphabetic keyboard and key expansion modules to be added according to individual user and workplace requirements.

4.3-Inch Colour Touchscreen

The ALE-400 features a large 4.3-inch colour LCD touchscreen with 480 x 272 pixel resolution, providing an intuitive interface for viewing call information, accessing menus and managing everyday telephone functions.

The phone provides 2 x 5 contextual touch keys together with three programmable function keys, giving users convenient access to frequently used communication functions.

3D Symphonic HD Audio

Designed to deliver an enhanced business calling experience, the ALE-400 features 3D Symphonic HD audio with super-wideband sound.

Three integrated microphones help capture speech clearly during hands-free conversations, while acoustic echo cancellation helps maintain natural two-way communication.

The ALE-400 supports high-quality audio through its handset, hands-free speakerphone and compatible headset options, making it suitable for users who spend significant amounts of time communicating throughout the working day.

Full-Duplex Hands-Free Calling

An integrated full-duplex hands-free speakerphone allows users to handle conversations without lifting the handset.

Combined with its three-microphone audio system and super-wideband sound, the ALE-400 provides a practical solution for individual hands-free calls and collaborative workplace conversations.

Dual Gigabit Ethernet Connectivity

The ALE-400 features dual Gigabit Ethernet 10/100/1000Mbps interfaces, providing high-speed wired network connectivity for the telephone and a compatible computer.

The integrated PC connection allows the ALE-400 and a computer to share the same network connection, helping simplify desktop installations while maintaining Gigabit network performance.

Flexible Wired & Wireless Connectivity

The ALE-400 provides dual Gigabit Ethernet, two USB-C ports and NFC connectivity, offering a range of connection options for modern workplaces.

For users requiring wireless connectivity, the phone can be upgraded with the optional ALE-108 Wireless Module, adding dual-band Wi-Fi and Bluetooth 5.0.

This allows businesses to add wireless functionality where required while retaining reliable wired connectivity as standard.

*Please Note - Wi-Fi and Bluetooth are not included as standard with the 3ML27410AA and require the optional ALE-108 Wireless Module, available separately

Expandable for Different Working Requirements

The modular design of the ALE-400 allows the telephone to be adapted to different workplace requirements using compatible Alcatel-Lucent Enterprise accessories.

The optional ALE-100 Alphabetic Keyboard provides convenient text entry, while the ALE-120 Key Expansion Module provides additional programmable keys for users who require quick access to a larger number of telephone functions.

Compatible customisation kits and wall mounting accessories provide further options for adapting the telephone to different working environments.

Power over Ethernet

The ALE-400 supports IEEE 802.3af Power over Ethernet (PoE Class 2), allowing compatible network infrastructure to provide both power and network connectivity through the Ethernet connection.

This can help simplify desk installations by reducing the requirement for a separate mains power connection. Where PoE is unavailable, a compatible optional USB-C 5V/3A power supply can be used.

Designed for ALE Business Communication Systems

The ALE-400 is designed for use with compatible Alcatel-Lucent Enterprise communication platforms, providing access to ALE business telephony features and services.

Support for NOE-IP and SIP communications on compatible systems provides deployment flexibility, while VPN support can provide secure connectivity for compatible remote-working environments.

Key Features

• Alcatel-Lucent Enterprise ALE-400 Enterprise DeskPhone
• IP Connectivity
• 4.3-Inch Colour LCD Touchscreen
• 480 x 272 Pixel Resolution
• 2 x 5 Contextual Touch Keys
• 3 Programmable Function Keys
• 3D Symphonic HD Audio
• Super-Wideband Audio
• Full-Duplex Hands-Free Speakerphone
• 3 Integrated Microphones
• Acoustic Echo Cancellation
• Microphone Mute
• Hearing Aid Compatible (HAC)
• Dual Gigabit Ethernet 10/100/1000Mbps
• LAN & PC Connectivity
• 2 x USB-C Connectivity
• NFC Connectivity
• Optional Dual-Band Wi-Fi via ALE-108 Wireless Module
• Optional Bluetooth 5.0 via ALE-108 Wireless Module
• NOE-IP Protocol Support
• SIP Protocol Support on Compatible Systems
• Power over Ethernet (PoE)
• PoE Class 2
• Optional Local USB-C Power Supply
• ALE-120 Key Expansion Module Support
• Optional ALE-100 Alphabetic Keyboard
• VPN Support
• Wall Mounting Supported with Optional Kit
• ENERGY STAR Certified
• Designed for Compatible Alcatel-Lucent Enterprise Communication Systems

Technical Specifications

Display

• 4.3-Inch Colour LCD Touchscreen
• 480 x 272 Pixel Resolution
• 2 x 5 Contextual Touch Keys
• 3 Programmable Function Keys
• Intuitive Touch Navigation

IP & Network Connectivity

• IP Operation
• Dual Gigabit Ethernet
• 2 x RJ45 10/100/1000Mbps Ethernet
• LAN & PC Connectivity
• NOE-IP Protocol
• SIP Protocol Support on Compatible Systems
• 2 x USB-C Ports
• NFC Connectivity
• Optional Dual-Band Wi-Fi – Requires ALE-108 Wireless Module
• Optional Bluetooth 5.0 – Requires ALE-108 Wireless Module
• Corded Handset Connection

Audio & Calling

• 3D Symphonic HD Audio
• Super-Wideband Audio
• Full-Duplex Hands-Free Speakerphone
• 3 Integrated Microphones
• Acoustic Echo Cancellation
• Corded Handset
• Microphone Mute
• Compatible USB-C Headset Support
• Hearing Aid Compatible (HAC)

Power

• Power over Ethernet – IEEE 802.3af
• PoE Class 2
• Approx. 1.5W Idle Power Consumption - Without USB
• Approx. 2W Active Power Consumption - Without USB
• Optional USB-C 5V/3A Local Power Supply

Installation

• Desktop Installation
• Adjustable Desk Stand – 25° to 60°
• Wall Mounting Supported – Optional Wall Mounting Kit Required

Physical Specifications

• Width - 228mm
• Height - 219mm
• Depth - 162mm
• Weight - Approx. 1,528g Including Corded Handset & Stand

Product Information

• Manufacturer - Alcatel-Lucent Enterprise
• Model - ALE-400 Enterprise DeskPhone
• Manufacturer Part Number - 3ML27410AA
• Product Type - IP Desk Phone
• Handset Type - Corded

Package Contents

• Alcatel-Lucent Enterprise ALE-400 IP Desk Phone
• Corded Handset
• Desk Stand
• Safety Sheet

*Please Note - A mains power supply is not included as standard. The ALE-400 supports Power over Ethernet (PoE Class 2); an optional compatible USB-C power supply is available separately where required
