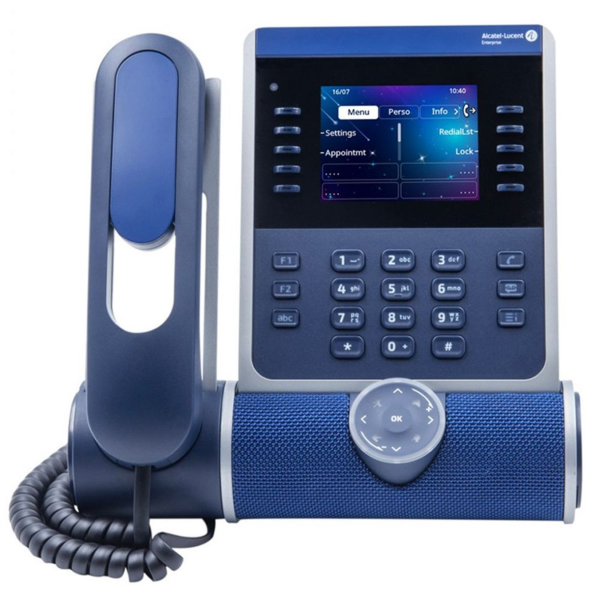

Alcatel-Lucent Enterprise ALE-300 IP Desk Phone

The Alcatel-Lucent Enterprise ALE-300 IP Desk Phone is a professional business telephone designed to deliver high-quality audio, intuitive call handling and flexible connectivity for modern workplaces. Part of the ALE Enterprise DeskPhones range, the ALE-300 combines a 3.5-inch colour display, super-wideband audio, dual Gigabit Ethernet, dual USB-C and NFC connectivity in a modern, expandable desktop design.

Designed for use with compatible Alcatel-Lucent Enterprise communication platforms, the ALE-300 supports professional IP communications while providing access to ALE business telephony features. Its modular design also allows compatible accessories, including Wi-Fi and Bluetooth connectivity, an alphabetic keyboard and key expansion modules, to be added according to individual workplace requirements.

Clear 3.5-Inch Colour Display

The ALE-300 features a 3.5-inch colour display with 320 x 240 pixel resolution, providing a clear interface for viewing caller information, telephone menus and everyday communication functions.

2 x 5 contextual programmable keys with blue LEDs provide convenient access to frequently used functions, while three programmable function keys and intuitive navigation controls help make everyday call handling straightforward.

Super-Wideband Business Audio

Designed to provide clear and natural business conversations, the ALE-300 supports super-wideband audio across the handset, compatible headset and hands-free speakerphone.

An integrated full-duplex speakerphone provides convenient hands-free calling, while acoustic echo cancellation helps maintain clear two-way conversations.

The ALE-300 is also Hearing Aid Compatible (HAC), helping provide a more accessible calling experience for compatible hearing aid users.

Dual Gigabit Ethernet Connectivity

The ALE-300 features dual Gigabit Ethernet 10/100/1000Mbps interfaces for LAN and PC connectivity.

This allows the ALE-300 and a compatible computer to share the same network connection, helping simplify desktop installations while providing high-speed wired network connectivity.

Support for Energy Efficient Ethernet also helps reduce unnecessary energy consumption during operation.

Flexible Wired & Wireless Connectivity

The ALE-300 provides dual Gigabit Ethernet, two USB-C ports and NFC connectivity, offering flexible connection options for modern business environments.

For workplaces requiring wireless connectivity, the ALE-300 can be upgraded with the optional ALE-108 Wireless Module, adding dual-band Wi-Fi and Bluetooth 5.0 functionality.

This modular approach allows businesses to add wireless connectivity where required without making it necessary for every telephone deployment.

Please Note: Wi-Fi and Bluetooth are not included as standard with the 3ML27310AA and require the optional ALE-108 Wireless Module, available separately.

Expandable for Changing Workplace Requirements

The ALE-300 can be expanded using compatible accessories to suit different users and workplace requirements.

The optional ALE-100 Alphabetic Keyboard provides convenient text entry, while compatible ALE-120 Key Expansion Modules can provide additional programmable telephone functions for users who handle larger volumes of calls.

Up to three compatible ALE-120 expansion modules can be supported, subject to system and power requirements.

Power over Ethernet

Support for IEEE 802.3af Power over Ethernet (PoE Class 1) allows the ALE-300 to receive network connectivity and power through compatible PoE infrastructure.

This can simplify desk installations by reducing the requirement for a separate mains power connection. Where PoE is unavailable, an optional compatible USB-C 5V/3A power supply can be used.

Designed for ALE Business Communication Systems

The ALE-300 has been developed for use with compatible Alcatel-Lucent Enterprise communication platforms, including supported OmniPCX Enterprise and OXO environments.

The telephone supports NOE-IP and SIP communications, subject to the connected ALE platform and system configuration, providing a flexible professional communications solution for a variety of business environments.

Key Features

• Alcatel-Lucent Enterprise ALE-300 Enterprise DeskPhone
• IP Connectivity
• 3.5-Inch Colour Display
• 320 x 240 Pixel Resolution
• 2 x 5 Contextual Programmable Keys with Blue LEDs
• 3 Programmable Function Keys
• Super-Wideband Audio
• Full-Duplex Hands-Free Speakerphone
• Acoustic Echo Cancellation
• Microphone Mute
• Hearing Aid Compatible (HAC)
• Dual Gigabit Ethernet 10/100/1000Mbps
• LAN & PC Connectivity
• 2 x USB-C Connectivity
• NFC Connectivity
• Optional Dual-Band Wi-Fi via ALE-108 Wireless Module
• Optional Bluetooth 5.0 via ALE-108 Wireless Module
• NOE-IP Protocol Support
• SIP Protocol Support on Compatible Systems
• Power over Ethernet (PoE)
• PoE Class 1
• Optional Local USB-C Power Supply
• ALE-120 Key Expansion Module Support
• Optional ALE-100 Alphabetic Keyboard
• Wall Mounting Supported with Optional Kit
• ENERGY STAR Certified
• Designed for Compatible Alcatel-Lucent Enterprise Communication Systems

Technical Specifications

Display

• 3.5-Inch Colour Display
• 320 x 240 Pixel Resolution
• 2 x 5 Contextual Programmable Keys with Blue LEDs
• 3 Programmable Function Keys
• Intuitive Navigation Controls

IP & Network Connectivity

• IP Operation
• Dual Gigabit Ethernet
• 2 x RJ45 10/100/1000Mbps Ethernet
• LAN & PC Connectivity
• NOE-IP Protocol
• SIP Protocol Support on Compatible Systems
• 2 x USB-C Ports
• NFC Connectivity
• Optional Dual-Band Wi-Fi – Requires ALE-108 Wireless Module
• Optional Bluetooth 5.0 – Requires ALE-108 Wireless Module

Audio & Calling

• Super-Wideband Audio – Handset, Headset & Hands-Free
• Full-Duplex Hands-Free Speakerphone
• Acoustic Echo Cancellation
• OPUS Codec
• Wideband G.722
• G.711 A-Law & Mu-Law
• G.729 AB
• Voice Activity Detection
• Comfort Noise Generation
• Microphone Mute
• Compatible Headset Support
• Hearing Aid Compatible (HAC)

Power

• Power over Ethernet – IEEE 802.3af
• PoE Class 1
• Approx. 1.4W Idle Power Consumption – Without USB
• Approx. 1.8W Active Power Consumption – Without USB
• Optional USB-C 5V/3A Local Power Supply

Installation

• Desktop Installation
• Adjustable Desk Stand
• Wall Mounting Supported – Optional Wall Mounting Kit Required

Product Information

• Manufacturer - Alcatel-Lucent Enterprise
• Model - ALE-300 Enterprise DeskPhone
• Manufacturer Part Number - 3ML27310AA
• Product Type - IP Desk Phone
• Handset Type - Corded
• ENERGY STAR Certified

Package Contents

• Alcatel-Lucent Enterprise ALE-300 IP DeskPhone – 3ML27310AA
• Corded Handset
• Desk Stand
• Safety Sheet

*Please Note - A mains power supply is not included as standard. The ALE-300 supports Power over Ethernet (PoE Class 1); an optional compatible USB-C power supply is available separately where required
