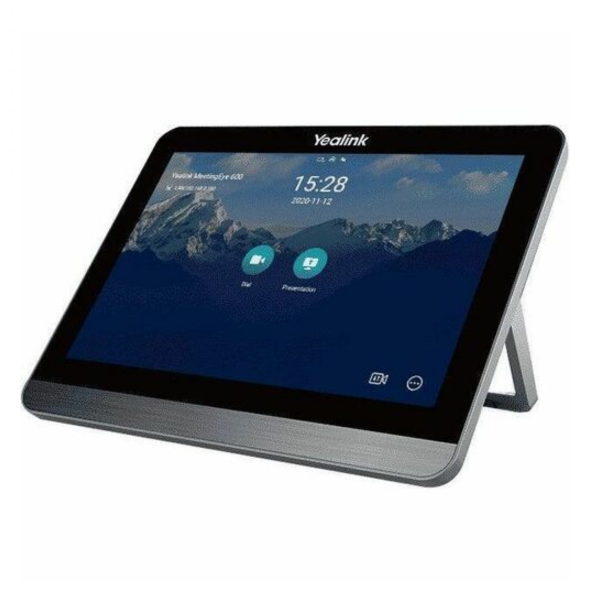

Yealink CTP18 Collaboration Touch Panel

Collaboration Touch Panel Designed for Small and Medium Meeting Rooms, 8 Inch Touch Screen with Adjustable Screen Angle

About the Yealink CTP18

The Yealink CTP18 is a collaboration touch panel that has been designed for small to medium sized conference rooms. The 8 Inch touch screen and user centered interactive design allows users to join in or control a meeting quickly. It creates a better meeting experience and greatly reduces the sometimes difficult use of video conferencing systems.

When using the Yealink CTP18 with the Yealink WPP20 Wireless Presentation Pod, you can annotate or control the shared content on the CTP18 directly, greatly improving the communication. Up to four CTP18 Touch Panels can be used simultaneously in one system.

Easier Meeting Control Features

Start or join a meeting with a single touch, all meeting controls can be navigated on the Yealink CTP18 with just a touch or a swipe of your finger, including previewing and adjusting the camera, changing participant layouts and recording.

Clutter Free Meeting Space

Yealink CTP18 supports PoE, where one cable carries both data and power for the device. Data transmission between CTP18 and the video conferencing device is realised either by cable or by Wi-Fi, which eliminates the tricky wiring connections between the TV and the conference table.

Highlights

• Android 9.0 Operating System
• 8 Inch Touchscreen
• Supports Conference Control
• Supports Annotation on Shared Content
• Connect to VCS Endpoint via Cable or via Wi-Fi
• Power over Ethernet (IEEE.802.3af)

Specifications:

Connection

• Connect to VCS Endpoint via Cable
• Pair with the VCS Endpoint in the Same LAN (Supported by Later Versions)
• Connect to VCS Endpoint via Wi-Fi

System Compatibility

• MeetingEye 400 / MeetingEye 600 - 44 or Later Versions, Up to Four CTP18 Units can be Used in One System
• VC880 / VC800 / VC500 - Supported by Later Versions, Up to Four CTP18 Units can be Used in One System
• VC200 / VC210 - Supported by Later Versions, Up to One CTP18 Units can be Used in One System

Wireless Network

• Wi-FI - 2.4GHz / 5GHz Wi-Fi, IEEE.802.11n/ac, Supports Connecting to the Wi-Fi Generated by Yealink VCS Endpoints Only

Display

• Screen - 8 Inch IPS FHD Capacitive Touch Screen
• Resolution - 1280 x 800 (16:10)
• Touch - 10 Point Multi-Touch

Interface

• USB - 1 x USB-C for Device Debugging
• RJ45 - 1 x RJ45 Ethernet for Power and Data Connection
• Reset Slot - 1 x Reset Slot

Power Supply

• Power over Ethernet (IEEE.802.3af)
• Power Input - PoE 48V 0.27A
• Power Consumption - 7W at Most

Stand

• Adjustable Angle 28°~50°

Dimensions

• 202mm x 151mm x 100mm

Package Contents

• Yealink CTP18 Touch Control Panel
• Cat5e UTP - RJ45-RJ45 Cable (7.5m / 24.61ft_
• Mounting Bracket & Screws
• Screwdriver
• Quick Start Guide
