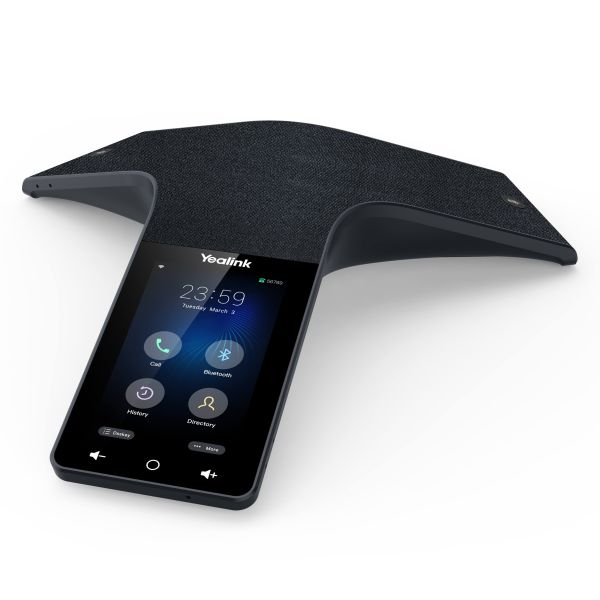

Yealink CP925 - Touch Sensitive HD IP Conference Phone

The Yealink CP925 is a touch sensitive HD Conference Phone designed for small to medium conference rooms, the CP925 adopts a business and introverted design that perfectly matches the calm style of the conference room and is designed with acoustic fabric that is impervious to any accidental liquid spills. Its fingerprint proof LCD Screen with a clear UI interaction page makes it easy for everyone to control the meeting. The CP925 has 7 built in Microphones providing a clear and natural conference call experience. In addition the CP925 can be conected to your mobile device via Bluetooth to achieve a Hybrid UC meeting.

As a valuable complement for your conference room, Yealink concentrates on users themselves, giving you an easy, clear, and engaging business conference experience when using the CP925.

Key Features and Benefits:

Modest Design, Easy to Use Interface

Yealink CP925 is a hermit in the conference room. Its black acoustic fabric can realise crystal clear audio and is resistant to water, oil, and stains. Its ultra thin body, appropriate desktop fit, and ingenious hidden wiring slot, perfectly fit for the simple business style in the conference rooms. Additionally, its built in Linux system and easy to use UI interface, allow users to launch a meeting with one button and increase user adoption.

HD Audio, Smooth Communication

The Yealink CP925 adopts a Y-Shaped design and has 7 built in Microphones - 6 Microphones for sound pickup and 1 Microphone for noise cancellation. Its 20ft and 360° Omni-Direction sound pickup provide users with clear and natural voice conference experience.

Scalable for More Flexibility and Possibility

BYOD

By simply connecting the mobile devices (such as smart phone, PSTN device CPN10, etc.) to a CP925 via Bluetooth or USB, everyone can enjoy the premium audio for hybrid UC meetings (including PSTN, SIP, mobile phone).

Wireless Microphones

The Bluetooth expansion microphone CPW25 (*Coming soon) provides an extra 3 metre voice pickup range to expand the covering area of CP925 without cord restraint.

Conference

With Yealink CPN10 the CP925 also supports 3 way local conference.

Features

• 4 Inch Multi-Touch Screen with 400 x 800 Resolution
• Optimal HD Audio, Full Duplex Technology
• Yealink Noise Proof Technology
• 20ft (6 Metre)360° Voice Pickup Range
• Built in 6 Microphone Array for Voice Pickup
• Built in 1 Microphone Array for Noise Cancellation
• Power over Ethernet (PoE)
• 5 Way Conference Call
• Hybrid UC Meeting
• Built in Wi-Fi (2.4GHz/5GHz, 802.11a/b/g/n)
• Built in Bluetooth 4.2
• Local Way PSTN Conference via Yealink CPN10

Audio Features

• Optimal HD Audio
• Yealink Noise Proof Technology
• Smart Noise Filtering
• 20ft (6 Metre)360° Voice Pickup Range
• Ideal for Use in Small to Medium Conference Rooms
• Built in 6 Microphone Array, 360° Voice Pickup
• Built in 1 Microphone Array - Decrease Noise
• Loudspeaker - Frequency - 100-20,000 Hz, Volume - 94dB at 0.5m Peak Volume
• 56mm Diameter and 5w Speaker
• Full Duplex Speakerphone with AEC
• Echo Cancellation Tail Length is up tp 320ms
• Background Noise Suppression
• Codecs - G722, G722.1C, G726, G.729, G.729A, G723, iLBC, Opus, PCMU (G.711A), PCMA (G.711μ)
• DTMF - In-Band, Out-of-Band (RFC 2833) and SIP INFO
• VAD, CNG, PLC, AJB, AGC

Phone Features

• 1 SIP Account
• Call Hold, Mute, DND, Call Recording, Hotline
• 5 Way Conference Call
• Analog PSTN Calls via Yealink CPN10
• Redial, Call Waiting, Emergency Call
• Call Forward, Call Transfer, Call Return, Dial Plan
• Ringtone Selection/Import/Delete
• Set Date/Time Manually or Automatically
• Volume Adjustment
• Pairing via Bluetooth
• Create Meeting Directly
• Join Meeting Seamlessly
• Active Speaker

Directory

• Local Phonebook up to 1000 Entries
• XML/LDAP Remote Phonebook
• Intelligent Search Method
• Phonebook Search/Import/Export
• Call History - Dialed/Received/Missed/Forwarded
• Block List

IP-PBX Features

• Busy Lamp Field (BLF)
• Multicast Paging
• Intercom
• Anonymous Call
• Anonymous Call Rejection
• Voicemail
• Distinctive Ringtone
• Call Pickup

Display

• 4” 480x800 CapacitiveTouch Screen
• Volume Key
• Home Button

Interface

• 1 x RJ45 10/100M Ethernet Port
• Built-in Wi-Fi (2.4GHz/5GHz, 802.11a/b/g/n)
• Built-in Bluetooth 4.
• Power over Ethernet (IEEE 802.3af ), Class 3
• 1 x USB 2.0 Type-C Device Port
• 1 x Security Slot

Network and Security

• SIP v1 (RFC2543), v2 (RFC3261)
• SIP Server Redundancy Supported
• NAT Traversal - STUN Mode
• Proxy Mode and Peer-to-Peer SIP Link Mode
• IP Assignment - Static/DHCP
• HTTP/HTTPS Web Server
• Time and Date Synchronisation using SNTP
• UDP/TCP/DNS-SRV (RFC 3263
• QoS - 802.1p/Q Tagging (VLAN), Layer 3 ToS, DSCP
• SRTP for Voice Encryption
• Transport Layer Security (TLS1.3)
• HTTPS Certificate Manager
• AES Encryption for Configuration File (AES256)
• Adb Encryption Authenticated
• Digest Authentication using MD5/MD5-sess
• OpenVPN, L2TP VPN IPv4/IPv6
• WPA2/WPA3 | Secure Boot
• GARP (Generic Attribute Registration Protocol)

Management

• Configuration - Browser/Phone/Auto-Provision/Yealink Device Management Platform
• Auto Provision via FTP/TFTP/HTTP/HTTPS for Mass Deploy
• Auto Provision with PnP
• Zero-sp-Touch, TR-069
• Reset to Factory, Reboot
• Package Tracing Export, System Log

Package Contents

• Yealink CP925 IP Conference Phone
• Ethernet Cable (7.5m CAT5E UTP Cable)
• M2×5 Screw
• Screwdriver
• Quick Start Guide
