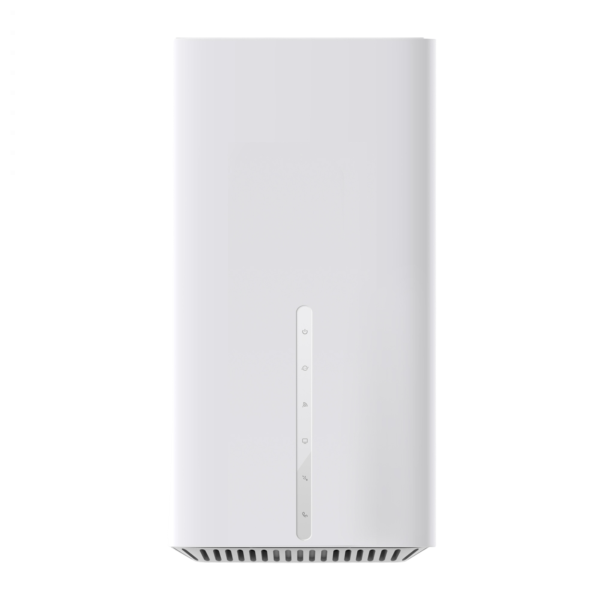

TP-Link EX530v V1 AX3000 Dual Band Wi-Fi 6 VoIP Router

Engineered for fibre-to-the-home (FTTH) deployments and modern connected properties, the TP-Link EX530v delivers high-performance networking with advanced Wi-Fi 6 technology and full gigabit wired ports. Designed to handle high-bandwidth applications smoothly, this dual-band wireless router combines fast Wi-Fi speeds with integrated VoIP telephony and centralized remote administration. High-performance internal antennas and Beamforming technology combine to extend strong, reliable Wi-Fi throughout your home.

Extensive WiFi Coverage and Beamforming Technology

Beamforming technology and high-performance antennas combine to adapt WiFi coverage to perfectly fit your home and concentrate signal strength towards every device. Furthermore, the EX530v is engineered with a 3T3R (3 transmitters + 3 receivers) antenna architecture, delivering stronger signals and higher throughput on the 5 GHz band with high sensitivity.

AX3000 Dual Band Wi-Fi 6 Performance

Powered by 802.11ax Wi-Fi 6 technology, the router provides total wireless speeds of up to 3 Gbps, split between 2402 Mbps on the 5 GHz band and 574 Mbps on the 2.4 GHz band. OFDMA and MU-MIMO technologies increase capacity and enable simultaneous transmission to more devices, delivering lower latency and seamless handling of heavy file transfers across multiple connected clients.

Gigabit Internet Access and Wired Connectivity

The Gigabit Ethernet ports act as the wired backbone of your network, routing up to 1 Gbps of bandwidth directly from your fibre broadband connection straight to bandwidth-heavy devices like desktop PCs, smart TVs, and gaming consoles without wireless latency. The integrated USB 3.0 port functions as a versatile local network storage hub. By connecting an external hard drive or USB flash memory, users can easily set up an FTP server or network-attached media server to stream movies, share family photos, and transfer large office files across multiple connected computers at speeds up to 10 times faster than legacy USB 2.0 ports.

Whole-Home Mesh and VoIP Telephony Support

Adopting standardised EasyMesh technology, you can create a smart mesh network with seamless coverage and greater flexibility based on standard mesh technology. The integrated FXS telephone port supports multiple VoIP accounts and various call features to surpass traditional landlines, including caller ID, call waiting, call holding, and call forwarding.

Advanced Security and Remote Management

Advanced security features protect your network using WPA3 encryption, DoS protection, SPI firewalls, IP/MAC address binding, and parental controls. Set up your network in minutes with the powerful Aginet app, while service providers can manage multiple devices remotely as TAUC (TP-Link Aginet Unified Cloud), TR-069, TR-098, TR-181, TR-111, and TR-143 protocols are supported.

Features

• Boosted Coverage - High-performance internal antennas and Beamforming technology combine to extend strong, reliable Wi-Fi throughout your home
• More Efficient Connections - OFDMA and MU-MIMO technologies increase capacity and enable simultaneous transmission to more devices
• AX3000 Wi-Fi 6 Speeds - Delivers dual-band wireless speeds up to 3 Gbps (2402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz)
• Gigabit Wired Connections - 1x gigabit WAN port and 3x gigabit LAN ports provide fast and flexible internet access
• VoIP Calls - Supports multiple VoIP accounts and various call features to surpass traditional landlines
• EasyMesh Compatible - Create a smart mesh network with seamless coverage and greater flexibility based on standard mesh technology
• USB 3.0 Storage Sharing - Supports file sharing, FTP servers, and media streaming across connected devices
• Advanced Security - Features WPA3 personal/enterprise encryption, SPI firewall, and robust parental controls
• Easy Setup and Use - Set up your network in minutes with the powerful Aginet app
• Remote Management - TAUC (TP-Link Aginet Unified Cloud), and TR-069, TR-098, TR-181, TR-111, TR-143 protocols are supported

Technical Specifications

Product Type

• AX3000 Dual Band Wi-Fi 6 VoIP Router

Hardware Interfaces

• 3 x 0/100/1000 Mbps RJ45 LAN Ports, 1x 10/100/1000 Mbps RJ45 WAN Port, 1x FXS Port, 1x USB 3.0 Port

Buttons

• Power On / Off Button, Reset Button, WPS / Wi-Fi Button

External Power Supply

• 12V / 5A

Wireless Standards

• IEEE 802.11a/n/ac/ax 5 GHz, IEEE 802.11b/g/n/ax 2.4 GHz

Wireless Signal Rate

• 2402 Mbps at 5 GHz, 574 Mbps at 2.4 GHz

Wireless Security

• WPA/WPA2/WPA3 Personal, WPA/WPA2 Enterprise

VPN Support

• PPTP, OpenVPN, IPSec (Server & Pass-through)

Dimensions

• 99mm x 99mm x 190mm (3.9 Inches x 3.9 Inches  x 7.5 Inches) - W x D x H

Package Contents

• AX3000 Dual Band Wi-Fi 6 VoIP Router EX530v
• RJ45 Ethernet Cable
• RJ11 Cable
• Power Adapter
• Quick Onstallation Guide
