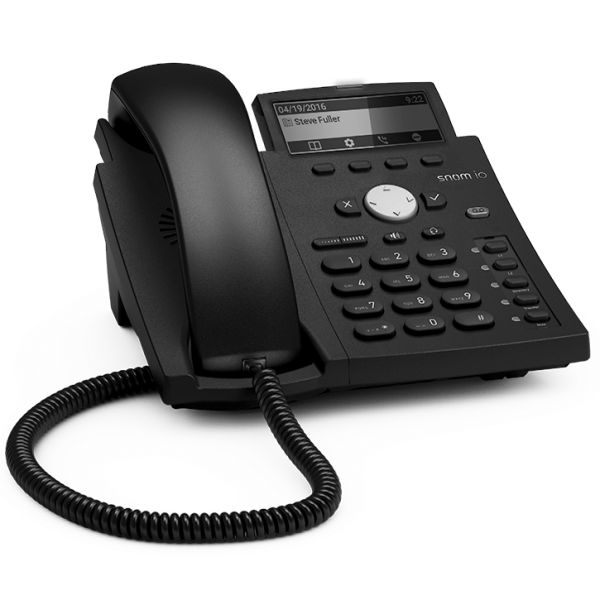

Snom D315 SIP Desk Telephone

Gigabit Switch and USB port

The D315 is a professional phone with a high resolution display that fulfils all important requirements of VoIP telephony as well as providing numerous functions that are of value in the business world.

Business Class Connectivity

The extensive connectivity options provided in the D315 make this telephone a safe long-term investment for your telephony network. A high-speed USB port enables the user to connect a variety of accessories such as D3 expansion modules or Wi-Fi sticks. In addition, the D315 has a gigabit Ethernet switch for connectivity to a gigabit Ethernet LAN to ensure that you get the most out of your local connections, and a VPN client to enable the integration of an additional security layer when required.

Flexible Placement

The D315’s flexible design makes it suitable for use in a wide variety of environments, including offices, call centres, and reception areas. The D315 can be used as a desk phone, its gently inclined, European-style keyboard making it ideal for easy dialing with minimal impact on the user’s hand, and it can also be wall mounted without the need for any additional hardware.

Investment Protection

Designed to last, the D315 features a dual IPv4/IPv6 stack, which ensures that it is future proof even as networks evolve. It also has the new Snom sensor hook switch designed for durability and reduced wear, ensuring a long product life even when the phone is used extensively and over long periods.

Benefits

• High resolution graphical display
• Wall mountable
• Sensor hook switch
• Digital signal processor (DSP) enhanced audio quality
• 2-port Gigabit Ethernet switch (RJ45)
• Power over Ethernet IEEE 802.3af, Class 2
• USB headset-ready
• D3 Expansion module-ready(1)
• USB WiFi stick support (RT2070/RT3070 chipsets)
• Electronic Hook Switch (EHS)(1) support for wireless headsets

Features

• 4 SIP identities / accounts
• XML browser
• Call lists for dialed, received, missed calls
• Local directory with 1000 entries
• Multiple language support
• DTMF in-band / out-of-band / SIP-INFO
• Interoperable with all major IP-PBX platforms

Call Features

• Speed dialing
• URL dialing
• Local dial plan
• Automatic redial on busy
• Call completion (busy/unreachable)
• Caller identification
• Call waiting
• Call blocking (deny list)
• Auto answer
• Hold
• Music on hold
• Handling of up to 4 simultaneous calls
• Blind and attended transfer
• Call forwarding
• 3-way conferencing on the phone
• Extension monitoring, call pickup
• Call park, call unpark
• Multicast paging
• DND mode (do not disturb)
• Keyboard lock
• Unified Communications ready
• Client matter code (CMC)

Set up

• Configurable through web interface

 Provisioning:

•  Automatic loading of settings via HTTP/HTTPS/TFTP
• DHCP Options 66/67
• Snom Redirection Service
• Remote management via TR-069 / TR-111

Phone Features

• Dimensions (approx.): 185x200x120 mm (LxWxH)
• Weight (approx.): 720g
• Input voltage: 5V DC (SELV)
• Power supply: PoE or 5V DC power adapter
• Handset: 4P4C connector
• Headset: 4P4C connector
• Hearing aid compatible
• 1 x USB 2.0 host port type A, Hi/Full/Low-Speed

In the Box

• Base phone unit
• Foot stand
• Handset with cord
• Ethernet cable
• Quick Start Guide
