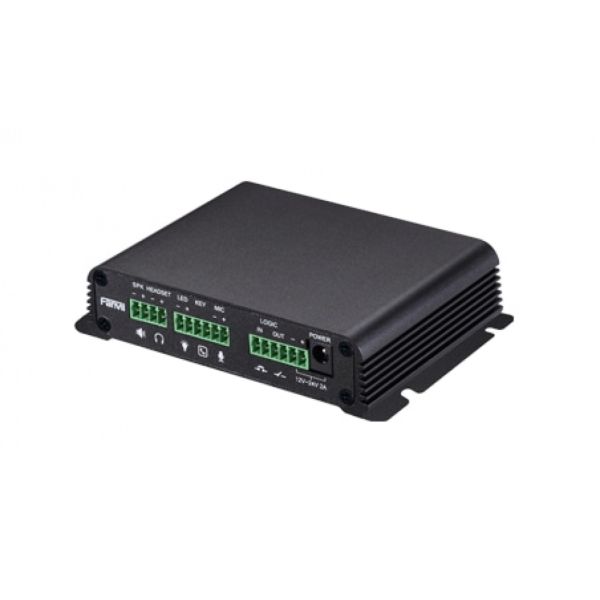

Fanvil PA2 SIP Paging Gateway

This Product is End of Life

Please Click Here for the Recommended Replacement Product - Fanvil PA2S

Fanvil PA2 SIP Paging Gateway

SIP Video Intercom & Paging Gateway

The Fanvil PA2 is a SIP Video Intercom and Paging Device for Industry Application. It will fit the needs of many industries from Offices, Hotels, Restaurants to Large and Small Shops as well as Universities and Aiports are some of the many Target Groups. The media stream transmission adopts standard IP/RTP/RTSP Protocol. It inherits the advantages of the stability and the sound quality of FANVIL VOIP Phones. Its perfectly compatible with all the current SIP IPPBX/IMS Platforms such as Asterix, Broadsoft, 3CX, Elastix and more.

Its various Functions and Interfaces such as Intercom, Broadcast, Video, Security and Recording adapt to different application environments, the PA2 is ideal for anyone looking to implement an Intercom or Paging Solution.

The DIY Intercom Solution

• The PA2 has a Variety of Interfaces Which Enable Users to Quickly Configure Intercom & Paging Solutions to Suit the Requirements of a Wide Range of Scenarios

HD Video Calls

• Supports Plug and Play for SIP-HD Video Calls by Using the Special Camera Module

Maximum 3W Audio Output

• With 10W, 20W and 30W Audio Amplification Output Modes, the PA2 is Able to Meet Different Needs in Various Situations

Video Linkage

• Support Video Linkage with HIKVISION and DAHUA IP Cameras to Make Video Calls

High Reliablilty

• With 15KV High Electrostatic Protection and Double Watch Dog Design, the PA2 can Work Perfectly in Extreme Weather Conditions and Suit Industrial Applications

HD Intercom and Paging

• Supports 7K Bandwidth High Quality HD Voice on Two Way Intercom and Broadcast

Dual Stream

• The PA2 is Able to Stream High Quality Video to an NVR Device for Recording/Playback Whilst Monitoring with Bandwidth Efficiency on Devices, Including Video IP Phones

Easy Integration

• RTSP Stream for Monitoring Within Existing Systems on your Network, Outside your Phone System

Fanvil PA2 SIP Paging Gateway Key Features & Highlights

• Small and Exquisite, Can be Embedded in the Internal Installation
• Emergency Call Button Interface, Active Call
• Interact with IPC Camera, You Can Make a Video Phone Call
• NVR Video Recording, Standard RJ45 Interface
• Recording Output, 3.5mm Standard Audio Interface
• 10W-30W Adaptive Output Power
• System Online Management and Upgrade

Fanvil PA2 SIP Paging Gateway Technical Specifications:

Intercom

• Two SIP Lines, Supporting SIP 2.0 (RFC3261) and Related RFC
• Supports Two Lines RTSP
• Voice Broadcast IP Address
• Button or Remote Volume Adjustment
• Switch Signal Input and Output
• Talkback Recording Output
• Hands Free Talking
• Default Auto Answer
• Dynamic Multicast Function
• Supports DC or PoE Power Supply
• Support for Function Key Interface
• Support Monophonic Active Speakers
• Network Time Synchronisation
• Action URL / Active URI Remote Control

Audio

• Narrow Band Speech Coding - G.711a / u, G.723.1, G.726-32K, G.729AB
• Broadband Speech Coding - G.722
• Half Duplex Echo Cancellation (AEC)
• DTMF - In-Band, Out-of-Band DTMF (RFC2833) / SIP Info

Networking Protocols

• Supports PoE (802.3af)
• Primary and Secondary DNS Servers are Supported
• Support VLAN
• Supports SNTP Client
• Support VPN L2TP / PPTP / IPSec
• Supports SRTP
• Support for HTTP / HTTPS Web Pages
• Support QoS - 802.1p / q, DSCP
• Support MD5 Authentication
• Supports Web Filter
• DHCP / Static / PPPoE
• STUN

Physical Specifications

• 2 x RJ45 Interface - Yellow - WAN Port 10 / 100M Adaptive, Support PoE, PoE - 802.3af (Class 3 -6.49 ~12.95W), Black - LAN Port (Only Connected to the Original Camera, Cable - Super Five Lines or Better
• 1 Blue Indicator (SIP Status and Network Status)
• 2 Volume Plus or Minus Key
• 1 Restore Factory Settings Key
• 1 Recording Output Interface - 3.5mm Standard Audio Interface 15 Ohm Impedance
• 1 Ground Screw
• 1 Way Passive Speaker Interface - Output Power - 4Ω, POE / 10W, 12V / 10W,18V / 20W, 24V / 30W, Related to Supply Voltage
• Wire Diameter - 18 AWG or Larger Diameter, Interface - Pluggable Terminal Block
• 1 Headset Speaker - Output - 32 Ohm 1.2V Interface Pluggable Terminal Block
• 1 Way Microphone Input Interface - Recommendation - Use an Electret Condenser Microphone Sensitivity: -38dB, Impedance 2.2 K Ohm Bias Voltage 2.2V Interface:Pluggable Terminal Block
• 1 Short Circuit Input and Output Interface (Built-in Relay) - Relay - MAX DC30V / 1A, AC125V / 0.5A, Interface - Pluggable Terminal Block
• 2 Parallel Power Input Interface - 12V-24V / 2A DC 1 Road for the 5.5mm DC Power Seat 1 Road Way 2Pin Pluggable Terminal Block
• Standby Power Consumption - DC12V 1.32W / POE 1.78W
• Housing Material - Aluminum Alloy Shell
• Installation - Indoor Installation
• Operating Temperature: -30 ~ 70 ℃
• Storage Temperature: -40 ~ 70 ℃
• Relative humidity: 10% - 95%
• Equipment Size - 113 x 83 x 28 mm
• Packing Size - 138 x 108 x 77 mm
• Equipment Weight - 250g
