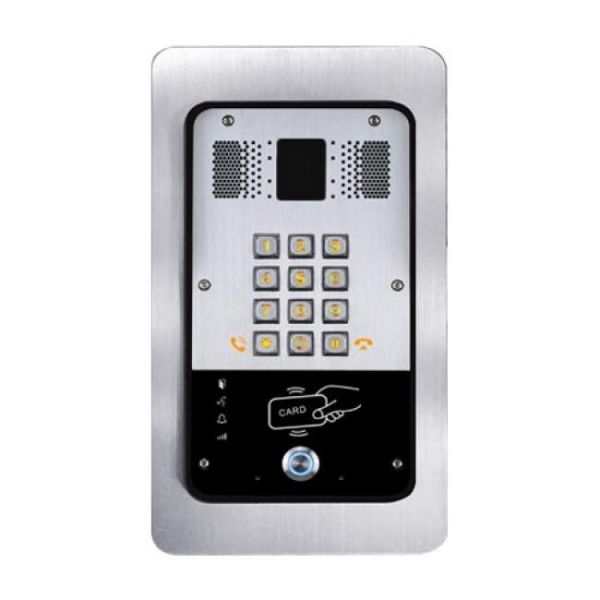

Fanvil i23S SIP Audio Door Phone

All-in-One Doorphone - Supports Remote DTMF, Local Password and RFID Cards to Open the Door

The Fanvil i23S is a vandal resistant SIP enabled Audio Door Phone System for security protection, and can be used in various locations. It combines with security, intercom, broadcasting, access control functionalities with telecom grade HD audio for smooth, safe and clear communication.

Designed for outdoor use, with robust performance and IP65/IK10 protection level for harsh outdoor environments.

Fanvil i23S Highlights

• Compatible With Standard SIP (RFC3261) Protocol and Main IPPBX/IMS Platform
• All-in-One (Access Control, Intercom and Broadcasting)
• Status Indication Icon
• Built-In 3W Speaker and AEC, Support High Quality Hands Free Communication
• Access Control (by Call, by Code, by RFID/IC, Indoor Switch)
• The System Design Adapts to Operating Under Various Environmental Conditions and Temperatures (Supports Temperatures Ranging From -40 to +70°c)
• System Online Maintenance and Management
• Relay
• HD Voice
• Multi-Protection

Access Control Function

• Two SIP Lines, Support SIP 2.0 (RFC3261) and Related RFC
• PoE Enabled
• Full Duplex Hands Free (HF)
• Default Auto Answer
• Open the Door Operation - DTMF, Password, RFID Card, Switch
• Support 200,000 Door Open Records
• Support 1000 Remote Access List
• Support 2000 RFID/IC Cards
• Support Electric Lock Internal or External Power Supply Options
• Support Customised DSS Keys
• Network Time Synchronisation
• Action URL / Active URI Remote Control

Audio

• Narrowband Speech Codec - G711a/u, G723.1, G.726-32K, G.729AB
• Broadband Speech Codec - G.722
• Full Duplex Echo Cancellation (AEC) - 96MS Tail-Length
• DTMF - In-Band, Out-of-Band DTMF (RFC2833) /SIP INFO

Networking Protocols

• Support PoE
• Primary and Secondary DNS Servers are Supported
• Support RTSP
• Support SNTP Client
• Support VPN L2TP / OpenVPN
• Support SRTP
• Network Cable - CAT5 or Better
• Shell Material - Aluminium Cover and Cast-Aluminium Back Case
• Installation Method - Wall Mount or Flush Mounting
• Support HTTP/HTTPS Web Pages
• Support QoS - 802.1p/q, DSCP
• Support MD5 Authentication
• Support Web Filter
• DHCP/static/PPPOE
• Support STUN

Deployment and Maintenance

• Auto-Provisioning via: FTP / TFTP / HTTP / HTTPS / DHCP / TR069 / SIP PNP
• Web Management Portal
• Web-Based Packet Dump
• Configuration Backup / Restore
• Entry Log Export
• Access Table Export / Import
• Firmware Upgrade
• Syslog(Include Door Access Logs)

Physical Specifications

• 1 DSS Button (Speed Dial Button)
• 5 Indicator Lights (Including Hot-Key Backlight)
• 12 Numeric Keypad With Backlight
• 1 Indoor Switch
• 1 Relay - MAX DC30V / 1A, AC125V / 0.5A
• Active Switching Output - 12V / 650mA DC
• RFID Reader - ID (EM4100) Standard Type,IC(MIFARE ONE)
• Microphone: -38dB
• Speaker - 4Ω / 3W
• WAN Port - RJ-45, 10 / 100M Adaptive
• Power Supply - 12V ± 15% / 1A DC or POE
• Storage Temperature:-40~70℃
• Working Humidity: 10~90%
• Protection Level - IP65 and IK10
• Overall Dimensions - 223mm x 130mm x 74mm (W x H x L)
• Package Weight - 1800g
