Fanvil i12-N-02 SIP Intercom (Dual Button) - New

£159.00 (Excl. VAT) £190.80 (Incl. VAT)

    PMC Product Code: 17665

    Manufacturer's Product Code: fanvil-i12-n-02

    • Noise Reduction
    • Tamper Proof / Tamper Detection
    • HD Voice
    • SIP - International Standard
    • IP65 / IK10 Rating
    • Intercom
    • *Dual Button*

    Stock status: In Stock

    Condition: Brand New

    Quantity:
    -+

    Need help with your Order?

    Call: 0161 737 9898

    email:info@pmctelecom.co.uk

    Details

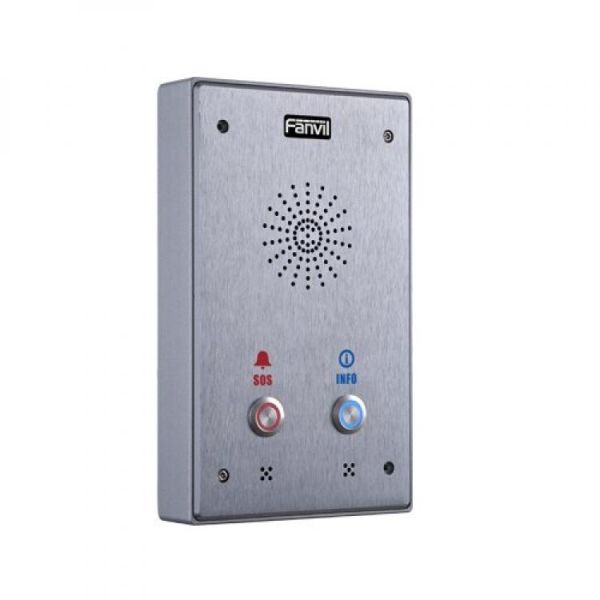

    Fanvil i12-N-02 SIP Intercom (Dual Button)

    The Fanvil i12 Dual Button SIP Intercom is ideal for a range of different professional settings such as Schools, Banks, Museums and more.

    The front of this model is aluminum alloy material with cast aluminium back plate, making sure that its waterproof, dustproof to an IP65 protection level, with built in tamper proof detector to prevent theft or vandalism.

    Highlights - Key Features

    • Voice Record Output, Can Connect to Hard Disk Video Recording
    • Two Input, Support to Connect with Infrared Probe, Door Sensor, Vibration Sensor and Emergency Button etc
    • Two Output, Can Connect with Alarm Lamp, Locks and Other Equipment, Control the Security Linkage Through DTMF. Remote Server or Two Output Input Linkage Controller
    • External Active Speaker Output Interface, Support HD Voice (G.722) Background Music Broadcast
    • High Compatibility - Compatible with Major Platforms - Asterisk, Broadsoft, 3CX, Metaswitch, Elastix, Avaya etc

    Main Features

    • SIP International Standard
    • Tamper Proof
    • HD Voice
    • Multi-Protection
    • Noise Reduction
    • Wide Temperature Range
    • Tamper Detection
    • Intelligent Security System

    Generic Features

    • 2 SIP Lines
    • Full Duplex Speakerphone (HF)
    • Intelligent DSS Keys (Speed Dial)
    • Wall Mount Installation
    • 2 Embedded Short Circuit Input Interfaces
    • 2 Embedded Short Circuit Output Interfaces, Support 4 Controlled Events, Remote DTMF, Remote Servers Commands, Interaction with Short Circuit Input, Talking Status
    • Output Interface for Active Speaker
    • Audio Record Output Interface
    • External Power Supply
    • Multicast
    • All in One - Radio and Intercom, Intelligent Security Function
    • Industrial Standard Certifications - IP65, IK10, CE/FCC

    Call Features

    • Intercom
    • Speed Dial
    • Auto Answering (Per Line)
    • Voice Message (On Server)
    • Local 3 Way Conference

    Intercom Function

    • Call Log - 900 Entries, In/Out/Missed

    Protocols

    • SIP2.0 over UDP/TCP/TLS
    • RTP/RTCP/SRTP
    • STUN
    • DHCP
    • LLDP
    • PPPoE
    • 802.1x
    • L2TP
    • OpenVPN
    • SNTP
    • FTP/TFTP
    • HTTP/HTTPS
    • TR-069

    Deployment & Maintenance

    • Auto-Provisioning via FTP/TFTP/HTTP/HTTPS/ DHCP/TR069/SIP PNP
    • Web Management Portal
    • Web-Based Packet Dump
    • Configuration Backup/Restore
    • Firmware Upgrade
    • Syslog

    Audio

    • Narrowband CODEC - G.711a/u, G.723.1, G.726-32K,G.729AB
    • Wideband CODEC: G.722
    • Full-Duplex Acoustic Echo Canceller (AEC) – Hands-Free Mode, 96ms Tail-LengthVoice Activity Detection (VAD) / Comfort NoiseGeneration (CNG) / Background Noise
    • Estimation (BNE) / Noise Reduction (NR)
    • Packet Loss Concealment (PLC)
    • Dynamic Adaptive Jitter Buffer up to 300ms
    • DTMF - In-Band, Out-of-Band – DTMF-Relay (RFC2833)/ SIP INFO
    • Omnidirectional Voice Pickup - Pickup Distance to 5 Metres

    Networking

    • Physical - 10/100 Mbps Ethernet
    • IP Configuration: Static / DHCP / PPPoE
    • Network Access Control - 802.1x
    • VPN - L2TP (Basic Unencrypted) / OpenVPN
    • VLAN
    • QoS

    Physical Specifications

    • 1 or 2 DSS Keys (Speed Dial)
    • RJ45 Ethernet Jacket x2 - Network x1, PC x1 (Bridged to Network)
    • Main Chipset - Broadcom
    • Passive Switch - Normally Open and Normally Closed Highest at 30V/1A AC/DC
    • Output Interface for Active Speaker
    • Audio Record Output Interface
    • 2 Embedded Short Circuit Input Interfaces
    • 2 Embedded Short Circuit Output Interfaces
    • Speaker - 3W / 4Ω
    • Cables - CAT5 or Better
    • Power Supply - 10~14V/1.5A DC or PoE
    • Shell Material - Front Plate, Aluminum Alloy. Back Plate, Cast Aluminum
    • Protection Level - IP65 and IK10
    • Dimensions - 195mm x 120mm x 39mm (W x H x L)
    • Package Weight - 0.85kg
    General
    ColourSilver
    EAN6937295601749
    Warranty12 months
    Please Note
    Please noteAll information is provided for reference only. If you are unsure about any of the features listed, please check the manufacturer's official information.
