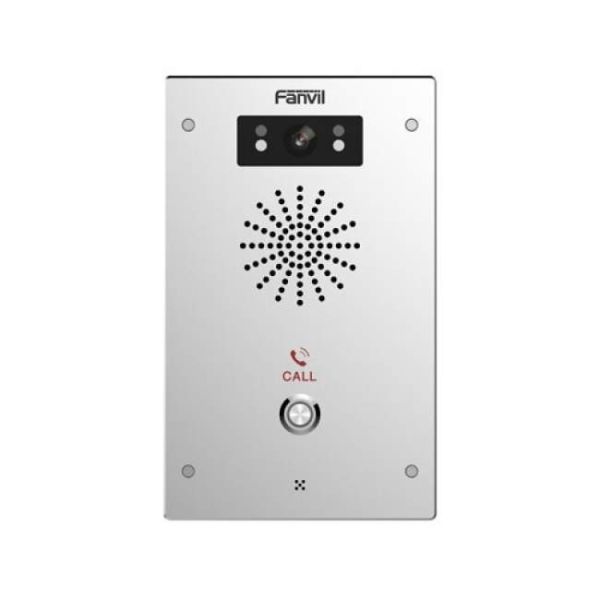

Fanvil i16V SIP Video Intercom

Fanvil i16V SIP Video Intercom

HD Audio, HD Video, 24 Hour Video Surveillance and Multi-Protection Design (IP65 and IK10 Rating) - Ideal for Use In Banks, Hospitals, Railway Stations, Schools, Prisons and more

The Fanvil i16V SIP Video Intercom is designed for Outdoor use with high reliability, HD Audio/Video and IP65/IK10 Protection ratings. Combining Audio/Video, Intercom and Broadcasting functionalities it offers an ideal communication solution for users.

HD Audio

The Fanvil i16V has a built-in 3W Speaker with High HD Audio Quality and Backgound Noise Reduction

HD Video

Press the "Call" Button to make a call with Full Duplex Video - Infrared Night Vision with built in 720P HD Camera

24 Hour Video Surveillance

Connected with VMS Video Management System via ONVIF, the i6V can be used for 24 Hour Video Monitoring

Multi-Protection Design

With an IP65 Protection Rating, the Anti-Collision Standard IK10 and the Wide Temperature Range from -40℃ to 70℃, the Fanvil i16V can satisfy the special demands in different industries

Alarm Linkage

The i16V can trigger the recording of the Video Camera or the Alarm Indicator with the short output port

Access Control

Open the door remotely with the Fanvil i16V by connecting to the electric lock with the short circuit input port

Record Output

The i16V can connect to the audio input port of the camera or digital recording device with a record output port to provide 24 hour monitoring

External Active Speaker

The i16V can connect to a Speaker by the Audio Output Port to play voice messages or music

Easy to Configure and Easy to Manage

Manage and configure the i16V with web online configuration, batch deployment through Fanvil Device Management System

Fanvil i16V Highlights

• Built in HD Camera with Infrared Night Vision, Adopt H.264 Codec
• HD Voice Speech Quality with Built in 3W Speaker and acoustic Echo Canceller (AEC)
• IP65 Protected - Water Proof and Dust Proof
• IK10 Anti-Collision with Robust Die Cast Aluminium Frame
• Anti-Tamper Alarming as Long as the Cover is Apart from the Housing, and Reporting to the Control Centre at the Same Time
• -40°C to 70°C Wide Range Temperature Adaptability
• Built in 3 Short-In Detect Port and 2 Short-Out Control Port
• Support Online Management and Upgrade
• Compatible with Major Platforms Such as - Asterisk, Avaya, Elastix, Metaswitch, 3CX and more

Generic Features

• 2 SIP Lines
• Full Duplex Hands Free (HF)
• Intelligent DSS Keys (Speed Dial / Intercom Etc)
• Auto Answer
• Intercom Function
• Industrial Standard Certifications - IP65 & IK10, CE/FCC

Intercom Functions

• Dynamic Multicast Function
• Support ONVIF
• Support Customised DSS Keys
• Network Time Synchronisation
• Action URL / Active URI

Video

• Sensor - 1/2.7” Colour CMOS
• 2 Megapixels
• Video Codec - H.264
• Resolution Main Stream - 1280 x 720 @25fps, Substream - 704 x 576 (D1) @25fps
• Viewing Angle - 112° (H), 84° (V)
• Minimum Illumination - 0.1Lux, Support for Infrared Illumination

Networking

• 10/100Mbps
• IP Configuration - Static / DHCP / PPPoE
• Network Access Authority Authentication - 802.1x
• VPN - L2TP / OpenVPN

Protocols

• SIP2.0 over UDP/TCP/TLS z RTP/RTCP/SRTP
• STUN
• DHCP
• LLDP
• PPPoE
• 802.1x
• L2TP
• OpenVPN
• SNTP
• FTP/TFTP
• HTTP/HTTPS
• TR-069

Audio

• Narrowband Codec - G.711a/u, G.723.1, G.726-32K, G.729AB
• Wideband Codec - G.722
• Full-Duplex Acoustic Echo Canceller (AEC) - Hands-Free Mode, 96ms Tail-Length
• Voice Activity Detection (VAD) / Comfort Noise Generation (CNG) /Background Noise Estimation (BNE)
• Packet Loss Concealment (PLC)
• Dynamic Adaptive Jitter Buffer up to 300ms
• DTMF- In-Band, Out of Band DTMF (RFC2833) / SIP INFO

Deployment and Maintenance

• Auto-Provisioning via FTP/TFTP/HTTP/HTTPS/DHCP OPT66/SIP PnP/TR-069
• Web Management Portal
• Web-based Packet Dump
• Configuration Import and Export
• Firmware Upgrade
• Syslog

Physical Specifications

• 1 DSS Button (Speed Dial Button)
• 1 RJ45 Port
• 1 Audio Output Interface
• 1 Recording Output Interface
• 2 Short Circuit Input Interface
• 2 Relays - MAX DC30V/2A, AC125V/0.5A
• Active Switching Output - 12V/500mA DC(Only 1 Relay Support)
• 2 Indoor Magnetic Switch
• 1 Tamper Alarm Switch
• Power - DC12V/1A or PoE
• Working Temperature: -40 ~ 70°C
• Protection Levels - IP65 and IK10
• Wall Mount Installation
• i16V Weight - 1015g
• i16V Dimensions - 195mm x 120mm x 34mm
