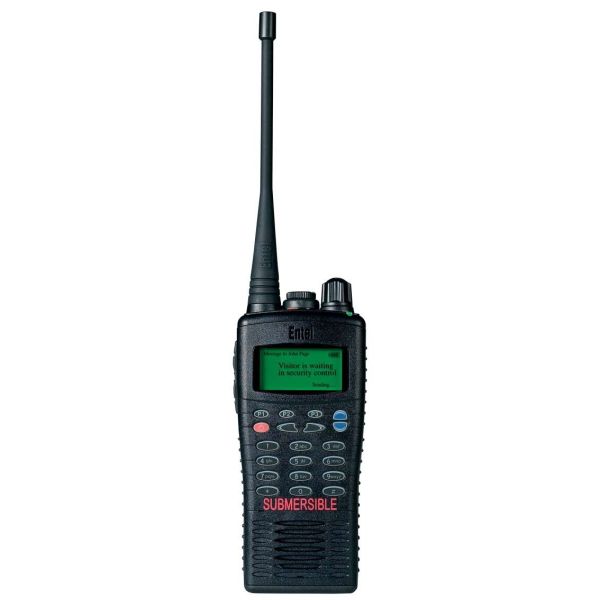

Entel HT986T - Advanced Trunked LCD Keypad ATEX IIC Radio UHF - New

Entel HT986T - Advanced Trunked LCD Keypad ATEX IIC Radio UHF

This Radio Requires a License to Operate, if you do not already have an Existing Radio License, a License will need to be Purchased before using the Radio - Please Click Here to Purchase a License

Entels HT Commercial Grade Portable Radio's are specifically designed to withstand the everyday rigours of the outdoor workplace, as well as being rugged and designed for gloved hand use with exceptionally loud audio.

2 Metres, 4 Hours Submersible

Conforming to IP68 Standard, the HT Series offers the highest submersibility rating of any manufacturer. This unique series protects against corrosion, withstanding total immersion in water to a depth of 2 metres for up to 4 hours, protecting against hazards encountered in any field of operation.

Commercial Grade Construction

Exceeding MIL-STD 810C/D/E/F rating, the HT Series is designed to withstand shock, vibration, dust and moisture, ensuring a tough performance and many years of trouble free use, even in the most hostile environments.

Superior Audio

Using the latest compander noise reduction technology, Entel's HT portables deliver loud and crisp audio, no matter what environment you are in.

Intelligent Li-Ion Battery

Entels Lithium-Ion Batteries are not prone tpo the dreaded memory effect that Ni-Cad and Ni-MH battery packs suffer from. This ensures that users always have a good charge everytime the battery is taken from its charger.

Intrinsically Safe

ATEX Approved IIC range of ATEX certified portables meet IIC T4 - the most stringent ATEX ratings as per EU directive 94/9/EC.

General Features

• Frequency Range (UHF) - 400 - 470 MHz
• Channel Spacing - 25KHz / 12.5KHz
• Battery - 1800mAh Li-Ion
• Dust and Liquid Intrusion - IP68 Submersible to a Water Depth of 2 Metres for up to 4 Hours
• Drop, Packing, Vibration and Shock - MIL-STD 810C/D/E/F
• Operating Voltage - 7.4V
• Dimensions - 59.5(W) x 130(H) x 37(D) (mm)

Transmitter

• Power Output - 1W
• Modulation Type - 8K0G3E / 16K0G3E (12.5 / 25KHz)
• Hum & Noise: -40 [dB]
• Frequency Stability: 2.5PPM
• Maximum Deviation - ±2.5 kHz(Narrow)/ ±5 kHz(Wide)
• Spurious Emission: -68 [dBc]

Receiver

• Sensitivity: -0.25uV (12dB SINAD)
• Frequency Stability - 2.5PPM
• Spurious Rejection - +70 dB
• Audio Output - 1W
• Hum & Noise: -40 [dB]
• Distortion - < 5% (1 kHz 60%)
• Adjacent Channel Selectivity: -60 dB (Narrow) , -70 dB (Wide)

Entel HT986T - Advanced Trunked LCD Keypad ATEX IIC Radio UHF Package Contents

• CNB950E - 7.4V, 1800mAh Rechargeable Lithium-Ion Battery Pack
• CSAHT - Rapid Charger
• CBH950 - Spring Loaded Belt Clip
• High Efficiency Antenna
• User Guide
