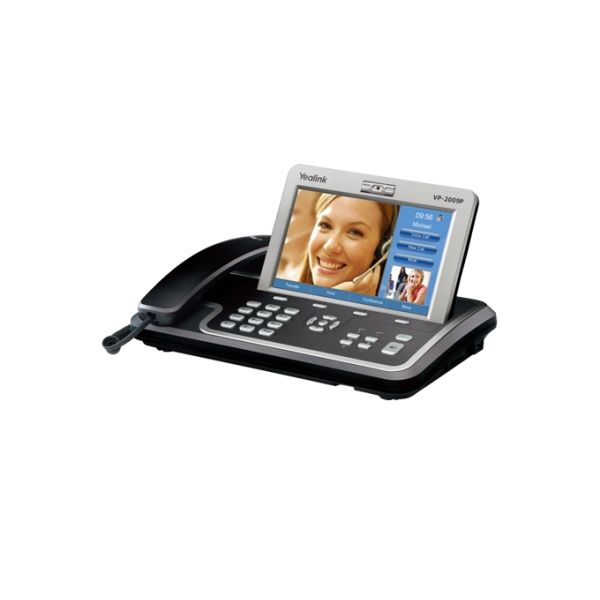

Yealink VP2009 Video IP Phone With PoE

The Yealink VP2009 7 inch touch screen colour LCD and 300K pixels CMOS camera, enabling stunning and live-like video conversation by the H.264 codec even at low bandwidth.

The VP-2009 is a multimedia terminal which supports audio/video playing through Local Media Player or remote media streaming server (IPTV & VoD). Moreover, the picture-importable digital photo frame and built-in web browser could greatly enhance customer experience.

VP-2009 combines professional design and advanced features with excellent audio and voice quality, friendly user interface. It is ideal for any communication environment, the corporate office and residential users.

Powerful TI DaVinci Engine

• Equipped with TI DaVinci processor, 64M flash and 128M DDR2 memory. Top configuration can be further developed for more value-added services through firmware updating so that to save the customers invest in maximum.

H.264 Superior Video Codecs

• It supports H.264, H.263, MPEG-4 video codecs and G.722, G.711, G.729AB voice codecs. H.264 supports D1 30fps and it enhances the face-to-face communication experience even at low bandwidth.

Online Video Advertisement

• Video advertisement could be played in ring back, talking and idle statues. Advertisement could be online video stream from server or offline on local memory.

IPTV and Video-on-Demand

• It can deliver high quality video streams including IPTV and VoD directly on its 7 inch LCD or on a connected TV screen, and it supports Video Call Centre also.

Browser & Digital Photo Frame

• User can access internet through the browser. Service providers can build value-added service around it. Meanwhile, phone supports digital photo frame and the pictures could be loaded locally.

Video Features

• Video Codecs: H.264 , H.263 and MPEG-4 SP
• Picture Codecs: JPEG, GIF, PNG
• Maximum D1 30 fps
• Bandwidth level: 128kbps -- 1Mbps
• Powerful video DSP with advanced AJC and PLC

Video Application

• IPTV and VOD (Streaming player)*
• Picture-in-Picture
• Camera block
• Video phone book3-way video conference*
• Picture slide show support

Voice Features

• Voice Codecs: G.711, G.723.1/iLBC,
• VAD, CNG, AEC, PLC, AJB, AGC
• Full-duplex hands-free speakerphone
• Stereo audio
• G.726, G.729AB and GSM
• Audio Codecs: MP3, WMA, AAC

Network Features

• SIP v1(RFC2543), v2(RFC3261)NAT transverse: STUN modeIP Assignment: Static/DHCP/PPPoEIn-Band DTMF, Out-of-Band DTMF, SIP InfoNAT/DHCP serverSupport QoS, VLAN*PoE and PSTN optionalProxy mode and Peer-to-peer SIP link modeTFTP/DHCP/PPPoE clientTelnet/HTTP serverDNS client

Telephony Features

• Call Hold, Call Waiting, Call Transfer and Call ForwardDial plan, Dial-now, Speed dialVoicemail*, 3-way Conference*, MP3 Ringtone Selection*DND, caller ID, call pickup, call list, Mute and volume adjustment

Config,Upgrade and Usage

• Support TR069
• Browser/Console/Telnet/Auto-provision/Keypad
• Direct IP call without SIP proxy
• Dial number via SIP server
• Dial URL via SIP server
• Firmware Upgrade: TFTP/Console/Auto-provision

Value-added Applications

• Web Browser
• Colour Media Ring
• Digital Photo Frame
• Online Ads, news/weather report*
• Email*, IM*, SMS*
• Media Player

Security

• Digest authentication using MD5/MD5-sess
• Secure configuration file via AES encryption

Physical Features

• TI DaVinci chipset
• LCD: 7 inch large TFT colour with touch screen
• Camera: adjustable 300K pixels CMOS sensor
• Speaker: 8 Ohm/2x1 Watt
• Dimension: 286x89x45mm
• Weight: 2.2Kg
• Power adapter: Input: AC 100~240V,
• Output: DC 5V/3A
• Operating humidity: 10~95%
• Storage temperature: up to 60°C
• 128M DDR-II, 64M flash memory
• A/V out ports: RCA style stereo audio & composite video output jack
• 1 RJ45 Ethernet 10/100M port
• 1 USB2.0 port
• 1 SD memory card interface
• 1 headset jack
• 1 PSTN life-line
