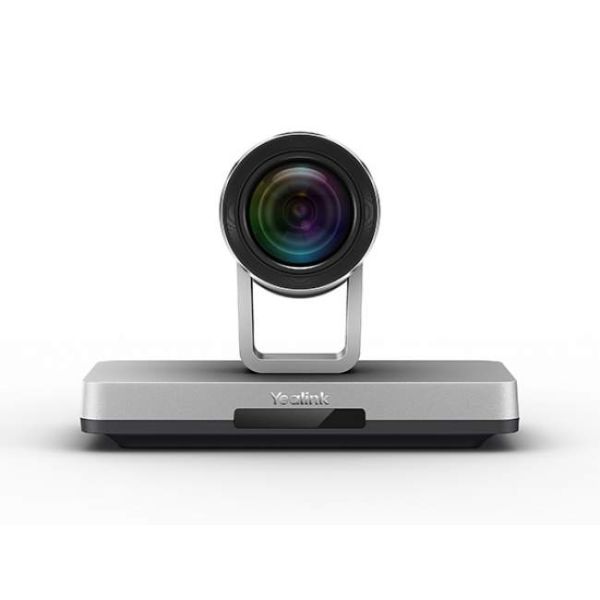

Yealink VCC22 - HD Video Conferencing Camera

About the Yealink VCC22

The Yealink VCC22 HD Video Conferencing Camera with striking 1080p60 quality and developed optics is designed for the Yealink VC800 Video Conferencing System. It has an HD CMOS sensor plus 12X optical zoom which power the VCC22 HD PTZ and deliver high definition capture of up to 1080p60, presenting professional video images and excellent multi-environment adaptability.

The Yealink VC800 Supports up to 8 VCC22 Cameras, developing a typical Yealink 1+8 multi camera solution. This dead zone free solution is suitable for every large meeting room and can send one multi-image video to the far side by piecing different video images from different cameras together. Furthermore it supports various video layouts including onePlusN, N*N, full screen, and the camera's layout can be controlled or adjusted by CTP20 collaboration touch panel, CP960 Conference Phone, remote control or control device, minus any pricey video matrix.

The VCC22 supports PoE which brings simple and easy deployment by connecting to PoE switch via standard RJ45 network cable (up to 100 metres long), in this way power supply, video data transmission and signal control unifies as one, sharply reducing the complex installation procedures as well as costly expenses.

Main Features

• 12x Optical, Pan/Tilt/Zoom Functionality
• Full HD 1080p60
• Power over Ethernet (PoE)
• Power Supply/Video/Control Three in One
• 1+8 Multi Camera Solution with VC800
• Multi Camera Image Splice
• Camera Layout Adjustment
• Up to 99 Presets

Specifications

• Room Size - Large
• Video System Compatibility - Yealink VC800
• Camera Type - 1/3” HD CMOS
• Maximum Resolution - 1920 x 1080
• Video Output Pixels - 1080P
• Maximum Frames Per Second (FPS) - 60fps
• Zoom - 12x Optical
• Horizontal Field of View - 70°
• Vertical Field of View - 42°
• Min Illumination - 1.5 lux
• Signal Noise Ratio (SNR) - >55dB
• Focus - Auto/Manual
• Exposure - Auto/Manual
• White Balance (WB) - ATW/Auto/Manual
• Beauty Shot
• Video Output Interface - 1 x HDMI
• Network Interface - 1 x RJ45
• Power Supply - PoE
• Pan Range - 0~±100°
• Tilt Range - 0~±30°
• Dimensions - 235mm x 172mm x 169mm W x H x D)
