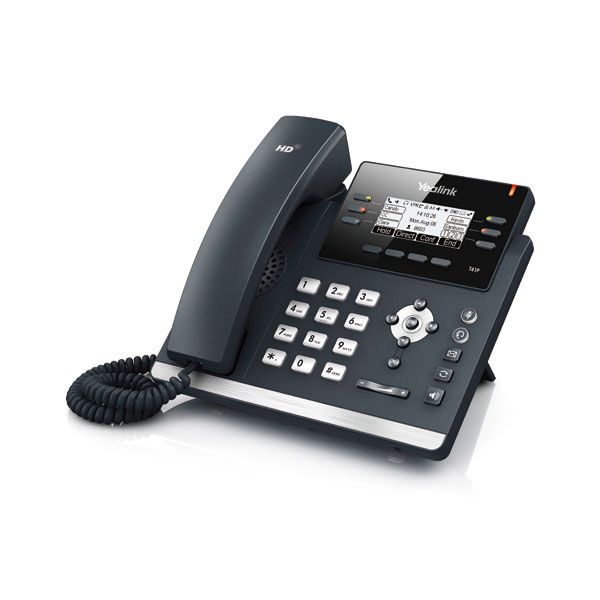

Yealink T41PN IP Phone

The stylish, feature-rich T41PN entry level business phone is ideal for busy professionals. The clear display and simple navigation enhances productivity. The 10/100 Mb telephone benefits from an intuitive interface, BLF’s, HD Voice, 3-way conferencing, handsfree speakerphone and supports corded or wireless headset and EHS. With simple, flexible and secure provisioning options, the T41PN is certified compatible with 3CX, Asterisk and BroadSoft BroadWorks, making it an ideal and cost-effective entry level IP phone for businesses.

Revolutionarily new design

Yealink's SIP Phones continue to evolve, the T4 Series have been designed by pursuing ease of use in even the tiniest details, these new design include paper label free design, new foot stand allows two posi-tions for the device, non-slip rubber feet, ergonomic recessed buttons etc.

HD Audio

Yealink Optima HD Voice refers to the combination of software and hardware design as well as the implementation of wideband technology to maximizes the acoustic performance. Coupled with advanced acoustic clarity technology such as full duplex, echo cancellation, Adaptive jitter buffer etc. Creating an amazing face-to-face live experience.

Enhanced Call Management

The SIP-T41PN supports vast productivity-enhancing feature such as SCA, BLF List, call forward, call transfer, 3-way conference.Three pages of 6 flexible buttons are shown on the display can be programmed up to 15 various features. Support Yealink YHS32, With EHS36 user can control phone through wireless headset.

Efficient Installation and Provisioning

Integrated IEEE 802.3af Power-over-Ethernet allows easy deployment with centralized powering and backup.The SIP-T41PN support the FTP, TFTP, HTTP, and HTTPS protocols for file provisioning and are configured by default to use Trivial File Transfer Protocol (TFTP), supports AES encrypted XML configuration file.

Highly secure transport and interoperability

The Communicator uses SIP over Transport Layer Security (TLS/SSL) to provide service providers the latest technology for enhanced network security. The range is certified compatible with 3CX, Asterisk and BroadSoft Broadworks, ensuring excellent compatibility with leading soft switch suppliers.

Main Features

• Revolutionarily new design
• Yealink Optima HD voice
• 2.7" 192x64-pixel graphical LCD with backlight
• Up to 3 SIP accounts
• Paper label free design
• PoE support
• Headset, EHS support
• Integrated stand with 2 adjustable angles
• Wall mountable
• Simple, flexible and secure provisioning options
• Hearing aid compatible

Specification

Audio Features

• HD voice: HD handset, HD speaker
• Wideband codec: G.722
• Narrowband codec: G.711(A/μ), G.723, G.729AB, G.726
• DTMF: In-band, Out-of-band(RFC 2833) and SIP INFO
• Full-duplex hands-free speakerphone with AEC
• VAD, CNG, AEC, PLC, AJB, AGC

Phone Features

• 3 Voip accounts
• One-touch speed dial, redial
• Call forward, call waiting, call transfer, call hold
• Call return, group listening
• Mute, auto answer, DND, SMS
• Call history: dialed/received/missed/forwarded
• 3-way confernece call
• Direct IP call without SIP proxy
• Ring tone selection/import/delete
• Hotline, emergency call
• Set date time manually or automatically
• Dial plan, push XML, action URL

Directory

• Local phonebook up to 1000 entries
• Call history: dialed/received/missed/forwarded
• Black list
• XML remote phonebook
• Intelligent search method
• Phonebook search/import/export

IP-PBX and BroadSoft Features

• Busy Lamp Field (BLF), BLF list
• Bridged Line Apperance(BLA)/SCA
• Anonymous call, anonymous call rejection
• DND & forward synchronization
• BroadWorks anywhere
• N-Way Calling, remote office
• Network call logs - Basic
• BroadSoft call center features
• Message Waiting Indicator (MWI)
• Voice mail, call park, call pickup
• Intercom, paging, music on hold
• Call completion, Call recording

Display and Indicator

• 2.8" 192x64-pixel greyscale graphical
• LCD with backlight
• LED for call and message waiting indication
• Dual-color (red or green) illuminated LEDs for line status information
• Intuitive user interface with icons and soft keys
• National language selection
• Caller ID with name, number
• Stand with 2 adjustable angles
• External universal AC adapter (optional): AC 100~240V input and DC 5V/1.2A output
• Power consumption (PSU): 1.4W-3.9W
• Dimension(WxDxHxT): 212mm x 189mm x 175mm x 54mm
• Operating humidity: 10~95%
• Storage temperature: -10~50°C

Feature keys

• 6 line keys with LED
• 6 line keys can be programmed up to 15 various features (3-page view)
• 5 features keys: message, headset, mute, redial, hands-free speakerphone
• 4 context-sensitive “soft” keys
• 6 navigation keys
• 2 volume control keys
• Illuminated mute key
• Illuminated headset key
• Illuminated hands-free speakerphone key

Interface

• 10/100Mb Ethernet
• 1xRJ9 (4P4C) handset port
• 1xRJ9 (4P4C) headset port
• Power over Ethernet (IEEE 802.3af), Class 3

Other Physical Features

• Stand with 2 adjustable angles
• Wall mountable
• External universal AC adapter (optional): AC 100~240V input and DC 5V/1.2A output
• Dimension(WxDxHxT): 212mm x 189mm x 175mm x 54mm
• Operating humidity: 10~95%
• Storage temperature: -10~50°C

Management

• Configuration: browser/phone/auto-provision
• Auto provision via FTP/TFTP/HTTP/HTTPS for mass deploy
• Auto-provision with PnP
• BroadSoft device management
• Zero-sp-touch TR-069, SNMP
• Provisioning server redundancy supported
• Phone lock for personal privacy protection
• Reset to factory, Reboot
• Package tracing export, System log

Network and Security

• SIP v1 (RFC2543), v2 (RFC3261)
• NAT transverse: STUN mode
• Proxy mode and peer-to-peer SIP link mode
• IP assignment: static/DHCP/PPPoE
• HTTP/HTTPS web server
• Time and date synchronization using SNTP
• UDP/TCP/DNS-SRV(RFC 3263)
• QoS: 802.1p/Q tagging (VLAN), Layer 3 ToS DSCP
• SRTP for voice
• Transport Layer Security (TLS)
• HTTPS certificate manager
• AES encryption for configuration file
• Digest authentication using MD5/MD5-sess
• OpenVPN, IEEE802.1X
• IPv6
