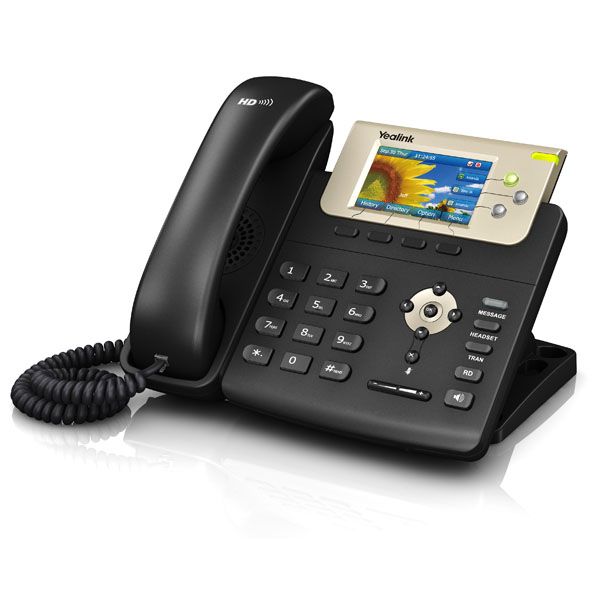

Yealink T32GN Colour IP Phone

The SIP-T32G IP Phone is one of Yealink’s most recent innovations for managers with demanding integrated communication needs. It has been designed as a future-proofed infrastructure investment that provides a seamless migration to modern GigE-based networks. Dual-port Gigabit Ethernet connections ensure flexible installation options and lower cabling costs. With its large, high-resolution TFT color display, the T32G IP Phone offers a brilliant presentation of caller information, with a user interface designed for clarity and intuitive operation. Equipped with the TI Aries chipset, HD handset, HD speaker and HD codec (G.722), the T32G IP Phone gives an unrivalled, lifelike audio experience. To ensure that your audio data remains confidential, it also supports security standards TLS, SRTP, HTTPS, 802.1x, Open VPN and AES encryption. These guard against electronic eavesdropping and data theft.

Key Features

• TI Aries chipset and TI voice engine
• Dual-port Gigabit Ethernet (Router & Switch)
• Supports IPV6
• Power over Ethernet
• 3” TFT-LCD, 400 x 240 pixel, 262K colors
• Color Picture Caller-ID, Screensaver, Wallpaper
• Convenient and intuitive user structure
• Support HD wideband codec: G.722
• HD Voice: HD Codec, HD speaker, HD handset
• Full-duplex speakerphone with AEC
• 3 VoIP accounts
• Auto-provision via TFTP / FTP / HTTP /HTTPS / PNP
• SRTP / HTTPS / TLS, VLAN, QoS, Open VPN
• National Language Support
• BLF/BLA, Hot-desking, OpenVPN
• Broad and Deep Interoperability
• Inherits all the features of T2x V60

Phone Features

• Codecs and Voice Features
• Physical Features
• 3 VoIP accounts, Hotline, Emergency call
• Call hold, Call waiting, Call forward, Call return
• Call transfer (Blind/Semi-attended/Attended)
• Caller ID display, Redial, Mute, DND
• Auto-answer, 3-way conferencing
• Speed dial, SMS, Voicemail
• Message Waiting Indication (MWI) LED
• Tone scheme, Volume control
• Direct IP call without SIP proxy
• Ring tone selection/Import/Delete
• Phonebook (1000 entries), Black list
• Call history: Dialed/Received/Missed/Forwarded
• Menu-driven user interface
• Localized language and input method
• Soft keys programmable

Advanced Features

• XML phonebook search/import
• LDAP phonebook
• XML Idle Screen
• Action URL & Active URI
• Wallpaper, Screensaver
• Color Picture Caller-ID
• Theme, Screen Sleep

IP PBX System Integration

• Busy lamp field (BLF), BLF list, (BLA)
• DND & Forward synchronization
• Intercom, Paging, Music on hold
• Call park, Call pickup
• Call recording, Call completion
• Group listening, Group pickup
• Anonymous call, Anonymous call rejection
• Network conference Distinctive ringtone
• Dial Plan, Dial-now
• Wideband codec: G.722
• Narrowband codec: G.711?/A, G.723.1,G.726, G.729AB
• VAD, CNG, AEC, PLC, AJB, AGC
• Full-duplex speakerphone with AEC

Network Features

• SIP v1 (RFC2543), v2 (RFC3261)
• IPv6
• DNS SRV (RFC3263)
• Redundant server support
• NAT Traversal: STUN mode
• DTMF: In-Band, RFC2833, SIP Info
• Proxy mode and peer-to-peer SIP link mode
• IP Assignment: Static/DHCP/PPPoE
• Bridge/router mode for PC port
• TFTP/DHCP/PPPoE client
• HTTP/HTTPS server
• DNS client, NAT/DHCP server
• Logout

Management

• Auto-provision via FTP/TFTP/HTTP/HTTPS
• Auto-provision with PnP
• SNMP V1/2 optional, TR069 optional
• Configuration: browser/phone/auto-provision
• Factory configuration customized
• Trace package and system log export

Security

• Open VPN, 802.1x, VLAN QoS (802.1pq), LLDP
• Transport Layer Security (TLS)
• HTTPS (server/client), SRTP (RFC3711)
• Digest authentication using MD5/MD5-sess
• Secure configuration file via AES encryption
• Phone lock for personal privacy protection
• Admin/VAR/User 3-level configuration mode
• 2xRJ45 10/100/1000Mbps Ethernet ports
• TI Aries chipset
• 3” TFT-LCD, 400 x 240 pixel, 262K colors
• 32 keys including 3 programmable keys
• 5 LEDs: 1 x power, 3 x line, 1 x message
• Wall-mountable
• 1xRJ9 (4P4C) handset port
• 1xRJ9 (4P4C) headset port
• Power adapter: AC 100~240V input and
• DC 5V/2A output
• Power over Ethernet (IEEE 802.3af)
• Power consumption: 4.0W
• Net weight: 0.77kg
• Dimension: 185 x 200 x 90mm
• Operating humidity: 10~95%
• Storage temperature: up to 60°C
