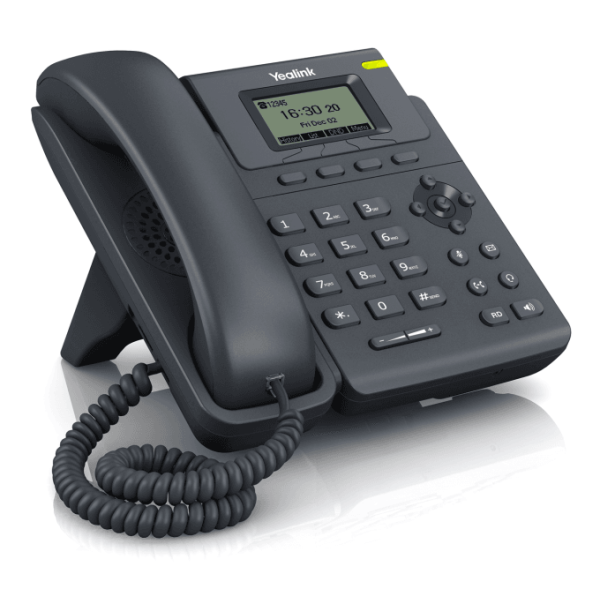

Yealink T19PN SIP Phone

The T19PN is Yealink’s entry-level IP phone that offers features and performance normally associated with much more advanced phones. The use of high quality materials, combined with a generously large 132 x 64 pixel graphical LCD that gives a clear 5-line display, guarantees both a smoother user experience and easy access to a wealth of visual information at a glance. Dual 10/100Mbpsnetwork ports with integrated PoE are ideal for extended network use.

The T19PN supports a single VoIP account, simple, flexible and secure installation options, plus IPv6 and SRTP/HTTPS/TLS, VLAN and QoS. It supports handsfree and headset use, is wall mountable and has been designed with productivity in mind.

Audio Features:

Full-duplex hands-free speakerphone with AEC, Codecs: G.711(A/?), G.723, G.729AB, G.726, DTMF: In-band, out-of-band (RFC 2833) and SIP INFO, VAD, CNG, AEC, PLC, AJB, AGC

Phone Features:

1 VoIP account, Call hold, mute, DND, One-touch speed dial, hotline, Redial, call return, auto answer, Call forward, call waiting, call transfer, Group listening, SMS, Local 3-way conferencing, Direct IP call without SIP proxy, Ring tone selection/import/delete, Keypad lock, emergency call, Set date time manually or automatically, URL & action URI - Dial Plan, XML Browser, Action URL & action URI

Directory:

Local phonebook up to 1000 entries, Block list, XML remote phonebook, Intelligent search method, Phonebook search/import/export, Call history: dialled/received/missed/forwarded

IP-PBX Features:

Anonymous call, anonymous call rejection, Message waiting indicator (MWI), Voice mail, call park, call pickup, Intercom, paging, music on hold, Call completion, hot-desking

Display and Indicator:

132x64-pixel graphical LCD, LED for call and message waiting indication, Intuitive user interface with icons andsoft keys, National language selection, Caller ID with name, number

Physical Features:

2xRJ45 10/100M Ethernet ports, 29 keys including 4 soft keys, 1xRJ9 handset port, 1xRJ9 headset port, Wall mountable, Optional power adapter: AC 100~240V input and DC 5V/600mA Output, Power over Ethernet (IEEE 802.3af ), Power consumption PSU: 1.24-2.62WDimension (W*D*H*T):185mm*188mm*143mm*38mm, Operating humidity: 10~95%, Operating temperature: -10~50°C

Management:

Configuration: browser/phone/autoprovision/RPS support, Auto provision via FTP/TFTP/HTTP/HTTPS for mass deployment, Auto-provision with PnP, BroadSoft device management, Zero-sp-touch, Provisioning server redundancysupported, Reset to factory, reboot, Package tracing export, system log

Network and Security:

SIP v1 (RFC2543), v2 (RFC3261 )IPv6, NAT transverse: STUN mode, Proxy mode and peer-to-peer SIP link mode, IP assignment: static/DHCP /PPPoEHTTP/HTTPS web server, Time and date synchronisation using SNTPUDP/TCP/DNS-SRV(RFC 3263), QoS: 802.1p/Q tagging (VLAN), Layer 3T oS, DSCP, SRTP for voice, Transport Layer Security (T LS), HTTPS certificate manager, AES encryption for configuration file, Digest authentication using M D5/MD5-sess, IEEE802.1X

Features

• 132 x 64-pixel graphical LCD
• Single VoIP account
• Dual 10/100 Ethernet Ports, integrated PoE
• Full-duplex speakerphone
• Headset Port
• Wall mountable
• XML remote phonebook
