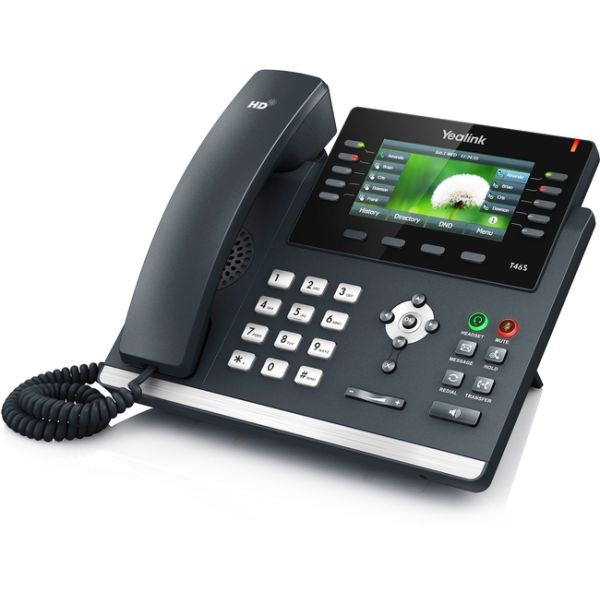

Yealink SIP-T46S IP Phone

This Product is End of Life

To Order the Replacement Product - Yealink SIP-T46U IP Phone Please Click Here

The Yealink SIP-T46S is an elegantly designed IP Phone for executives and busy professionals. Featuring a large, crystal clear display with simple navigation through a wealth of productivity enhancing features.

The 10 multi-function keys can be programmed to access 3 pages of 9 features and can be used for accounts, BLFs, system functions or simply for speed dials.

As well as support for corded and wireless headsets, the Yealink SIP-T46S also incorporates a USB port allowing Bluetooth headsets (via BT40 Bluetooth dongle), WiFi access (via WF40 WiFi dongle) and call recording.

Auto provisioning and manual programming follow the same format as the rest of the Yealink range, making life simpler for installers and technicians. The T46S is certified compatible with 3CX, Asterisk and BroadSoft BroadWorks, making it the ideal choice for busy managers.

Features

• Hearing Aid Compatible
• USB Call Recording
• Dual Port Gigabit Ethernet, Power Over Ethernet
• 4" x 3" TFT Colour Display with Backlight
• HD Voice, HD Codec, HD Speaker, HD Handset
• 16 VoIP Accounts, BLF/BLA, IPV6, Open VPN
• Supports Bluetooth Headsets and Wi-Fi Dongle
• T4S Unified Firmware and Auto Provisioning

Directory

• Local Phonebook up to 1000 Entries
• Blacklist
• Smart Dialing
• XML/LDAP Remote Phonebook
• Phonebook Search/Import/Export
• Call History - Dialed/Forwarded/Missed/Received

IP-PBX Features

• Call Park, Call Pickup
• Flexible Seating
• Voicemail, Hot Desking
• Busy Lamp Field (BLF)
• Bridged Line Appearance (BLA)
• Anonymous Call, Anonymous Call Rejection
• Call Recording
• Visual Voicemail
• Centralised Call Recording
• Executive and Assistant

Feature Keys

• 10 Line Keys with LED
• 10 Line Keys can be Programmed up to 27 Paperless DSS Keys (3 Page View)
• 7 Feature Keys - Message, Headset, Mute, Hold, Transfer, Redial, Handsfree Speakerphone
• 4 Context Sensitive Soft Keys
• 6 Navigation Keys
• Volume Control Keys
• Illuminated Mute Key
• Illuminated Headset Key
• Illuminated Handsfree Speakerphone Key

Display and Indicator

• Power Saving
• Screensaver
• Caller ID with Name and Number
• Multilingual User Interface
• Intuitive User Interface with Icons and Soft Keys
• Wallpaper
• Dual Colour (Red or Green) Illuminated LED`s for Line Status Information
• LED for Call and Message Waiting Indication
• 16 Bit Depth Colour
• 4.3” 480 x 272-Pixel Colour display with Backlight

Phone Features

• 16 VoIP Accounts
• Enhanced DSS Key
• Call Hold, Mute, DND
• One Touch Speed Dial Hotline
• Call Forward, Call Waiting, Call Transfer
• Group Listening, SMS, Emergency Call
• Redial, Call Return, Auto Answer
• 3 Way Conferencing
• Direct IP Call without SIP Proxy
• Ringtone Selection/Import/Delete
• Set Date/Time Manually or Automatically
• Dial Plan, XML Browser, Action URL/URI
• RTCP-XR (RFC3611), VQ-RTCPXR (RFC6035)
• USB Port (2.0 Compliant) for - Bluetooth Earphone Through BT40, Wi-Fi Through WF40, USB Call Recording Through USB Flash Drive

Audio Features

• VAD, CNG, AEC, PLC, AJB, AGC
• Full Duplex Handsfree Speakerphone with AEC
• HD Voice, HD Handset, HD Speaker
• Hearing Aid Compatible (HAC) Handset
• Codecs - Opus, G.722, G.711(A/μ), G.723, G.723.1, G.729AB, G.726, iLBC
• DTMF: In-Band, Out-of-Band (RFC 2833) and SIP INFO

Network and Security

• SIP v1 (RFC2543), v2 (RFC3261)
• Call Server Redundancy Supported
• NAT Traversal - STUN Mode
• Proxy Mode and Peer-to-Peer SIP Link Mode
• IP Assignment - Static/DHCP/PPPoE
• HTTP/HTTPS Web Server
• Time and Date Synchronisation Using SNTP
• UDP/TCP/DNS-SRV(RFC 3263)
• IPv6, LLDP/CDP/DHCP VLAN, ICE
• OpenVPN, IEEE802.1X
• Digest Authentication Using MD5 MD5-sess
• AES Encryption for Configuration File
• HTTPS Certificate Manager
• Transport Layer Security (TLS)
• SRTP for Voice
• QoS - 802.1p/Q Tagging (VLAN), Layer 3 ToS DSCP

In the Box

• Yealink SIP-T46S IP Phone
• Handset with Handset Cord
• Ethernet Cable (2m CAT5E UTP Cable)
• Stand
• Quick Start Guide
• **PSU Not Included - Optional Accessory - See Related Products Below**
